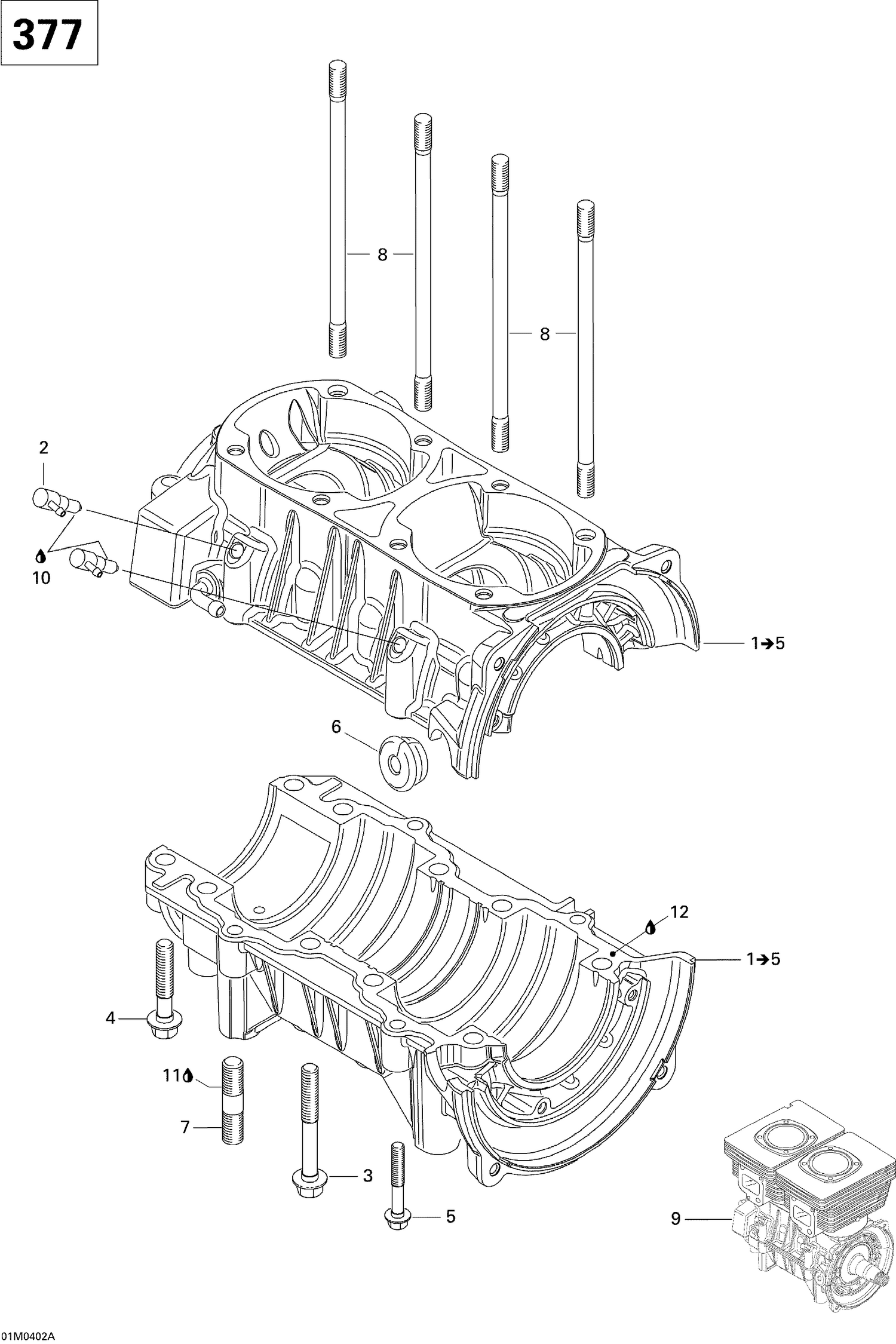

01- Crankcase (380F)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420956511 | Check Valve This part replaces 420956510. |
| 3 | 420640959 | Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 4 | 420841431 | Hex. Collar Screw M8 x 45 |
| 5 | 420941451 | HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 6 | 420860962 | Cable Grommet |
| 7 | 420940190 | Stud M10 X 29/20 |
| 8 | 420841149 | STUD M8 X 167 - Call your local BRP dealership |
| 9 | 420037705 | Short Block Ass’y |
| 10 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 11 | 293800060 | Loctite 243, 10 ml |
