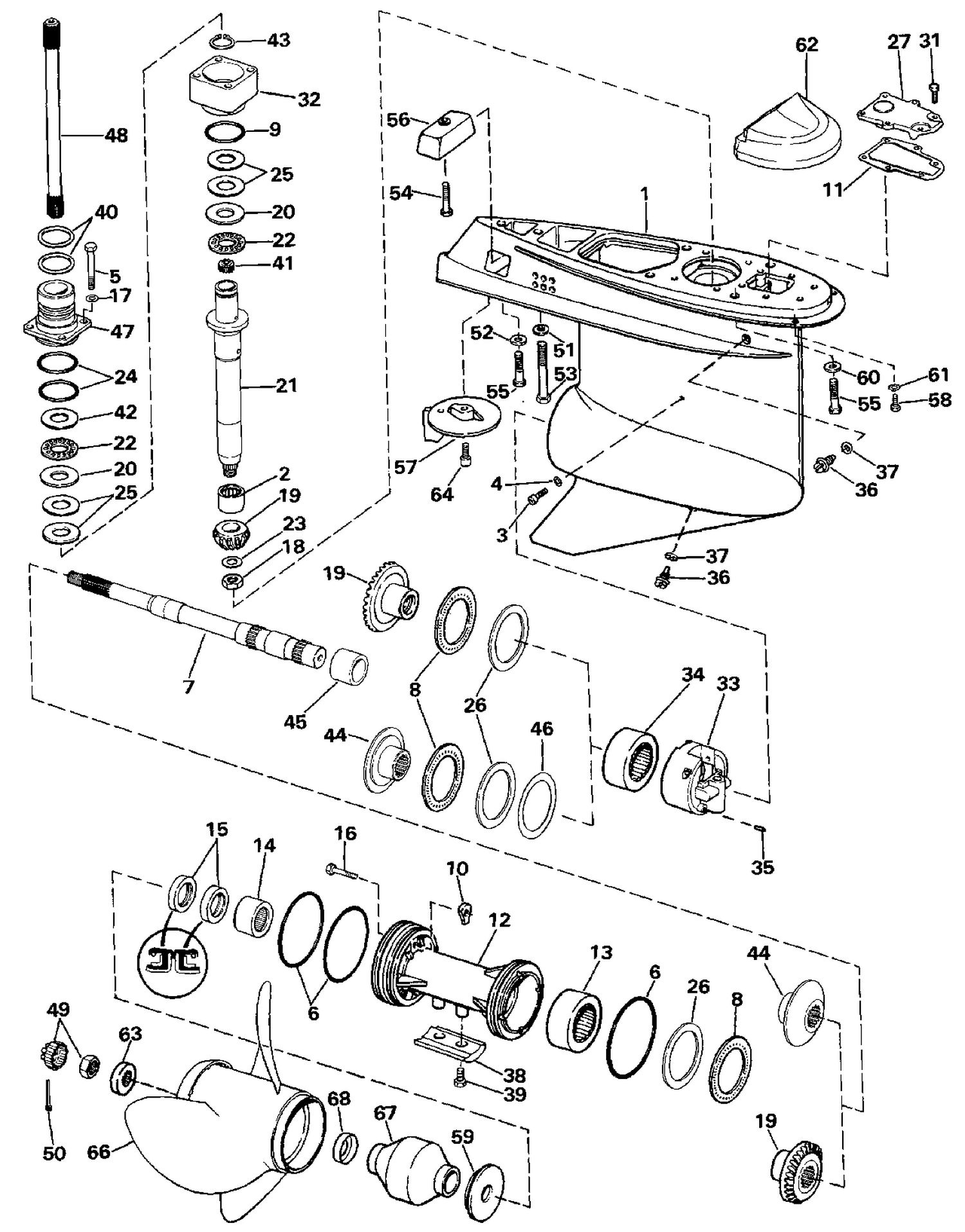

| Ref | Part Number | Description |
|---|
| 1 |
0984818 |
GEARCASE & BEARING ASSY. |
| 2 |
0391471 |
BEARING, Pinion |
| 5 |
0912680 |
SCREW, Housing to gearcase |
| 7 |
0984811 |
PROPELLER SHAFT ASSY. |
| 10 |
0332091 |
RETAINER, Bearing housing |
| 11 |
0912388 |
GASKET, Cover |
| 12 |
0984815 |
BEARING HSG. SEAL ASSY. |
| 13 |
0391505 |
BEARING |
| 16 |
0913432 |
SCREW |
| 19 |
0985712 |
GEAR SET, (Inc. fwd. & pinion) |
| 21 |
0912677 |
DRIVESHAFT ASSY. |
| 23 |
0913543 |
SPRING WASHER, Pinion nut |
| 26 |
0326733 |
THRUST WASHER |
| 27 |
0913428 |
COVER, Gearcase |
| 31 |
0304027 |
VIS, arbre de commande de sens de marche |
| 32 |
0984972 |
BEARING HOUSING |
| 33 |
0985621 |
HOUSING & BEARING ASSY. |
| 40 |
0318717 |
O-RING, Bearing hsg |
| 41 |
0911710 |
PLUG, Shaft support |
| 42 |
0912681 |
WASHER, Thrust |
| 43 |
0912682 |
RETAINING RING, Driveshaft |
| 44 |
0913474 |
BUSHING, Thrust. |
| 45 |
0912675 |
SLEEVE |
| 46 |
0912776 |
SHIM, 0.002" |
| 46 |
0912777 |
SHIM, 0.003" |
| 46 |
0912778 |
SHIM, 0.004" |
| 46 |
0912779 |
SHIM, 0.005" |
| 46 |
0912780 |
SHIM, 0.010" |
| 47 |
0912676 |
SLEEVE, Bearing housing |
| 48 |
0911709 |
DRIVESHAFT |
| 51 |
0326784 |
WASHER, Screw |
| 52 |
0326785 |
WASHER |
| 53 |
0331998 |
SCREW, Gearcase to housing |
| 54 |
0332746 |
SCREW, Anode |
| 55 |
0331999 |
SCREW, Gearcase housing |
| 56 |
0397768 |
ANODE |
| 57 |
0913238 |
TRIM TAB, Gearcase |
| 57 |
0913239 |
TRIM TAB, Gearcase |
| 59 |
0333592 |
THRUST BUSHING |
| 62 |
3853818 |
ANODE, Gearcase This part replaces 0984513. |
| 64 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0174811 |
PROPELLER, 14 1/2 x 19 OMC Viper |
| 66 |
0174812 |
PROPELLER, 14 1/2 X 21 OMC Viper |
| 66 |
0174813 |
LH Viper 14 1/4 x 23 |
| 66 |
0174814 |
PROPELLER, 14 1/2 x 19 OMC Viper |
| 66 |
0174815 |
PROPELLER, 14 1/2 x 21 OMC Viper |
| 66 |
0174816 |
PROPELLER, 14 1/2 x 23 OMC Viper |
| 66 |
0174889 |
PROPELLER, 15 x 17 OMC Viper |
| 66 |
0174890 |
PROPELLER 15 x 17 OMC Viper |
| 66 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 66 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 66 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 66 |
0390821 |
PROPELLER, 14 1/2 x 19 SST II |
| 66 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 66 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 66 |
0391290 |
PROP, 15 x 17 SST |
| 66 |
0394752 |
PROPELLER, 14 1/2 x 18 OMC Raker |
| 66 |
0394753 |
PROPELLER, 14 1/2 x 20 OMC Raker |
| 66 |
0394754 |
PROPELLER, 14 1/2 x 22 OMC Raker |
| 66 |
0394755 |
PROPELLER, 13 1/2 X 24 OMC RAKER |
| 66 |
0394756 |
PROPELLER, 14 1/2 x 26 OMC Raker |
| 66 |
0394757 |
PROPELLER, 14 1/2 x 28 OMC Raker |
| 66 |
0398502 |
PROPELLER, 14 1/2 X 20 RACKER |
| 66 |
0398503 |
LH Raker 14 1/2 x 22 |
| 66 |
0398504 |
LH Raker 14 1/2 x 24 |
| 66 |
0398505 |
LH Raker 14 1/2 x 26 |
| 66 |
0398506 |
LH Raker 14 1/2 x 28 |
| 66 |
0431930 |
PROPELLER, 15 x 17 SSS II |
| 0984829 |
0984829 |
GEARCASE ASSY., Complete |
| 0984846 |
0984846 |
GEARCASE ASSY., Complete |
