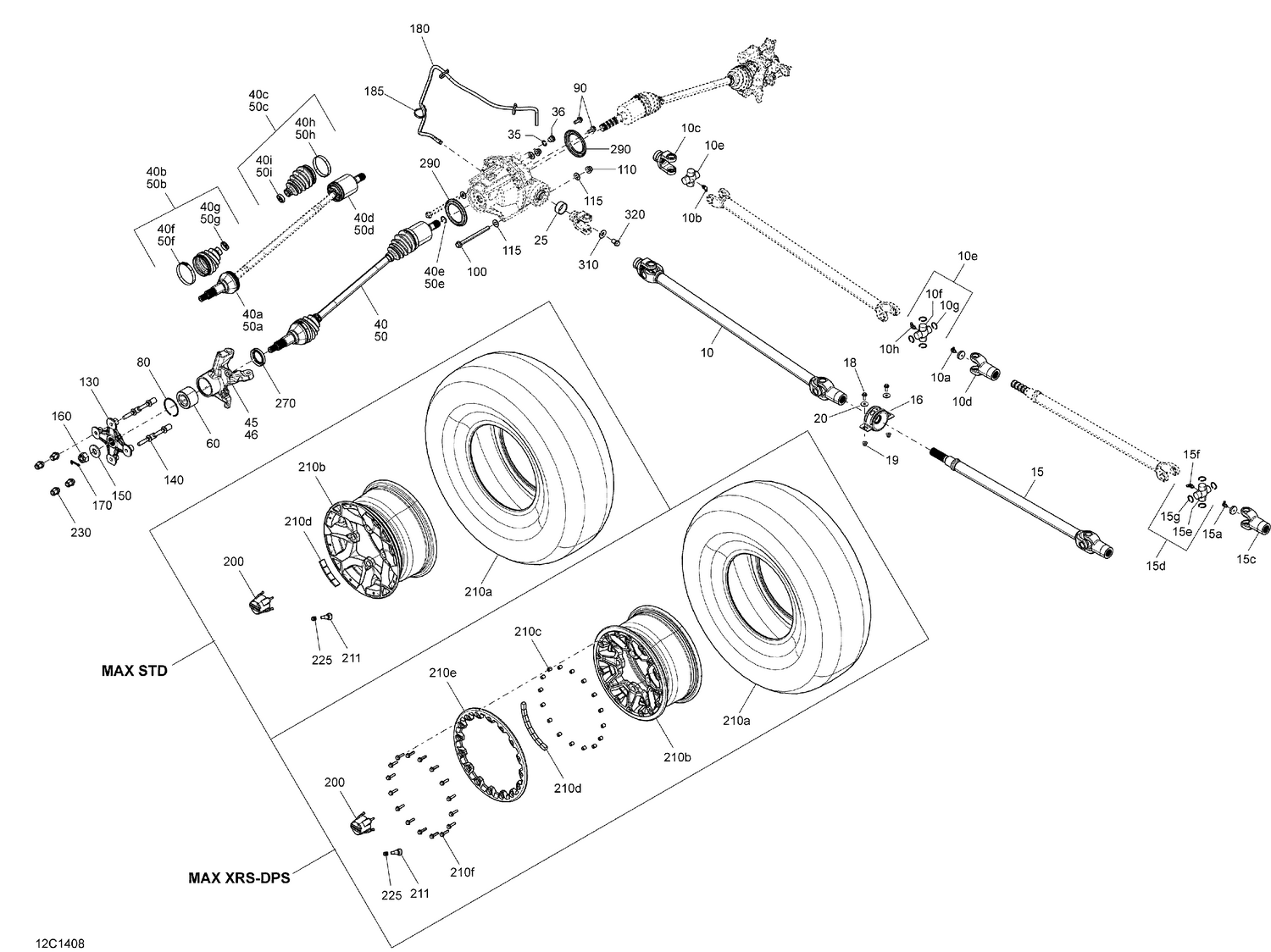

| Ref | Part Number | Description |
|---|
| 10 |
705402068 |
Drive Shaft Assembly This part replaces 705401196. |
| 10a |
703500815 |
Grease Fitting |
| 10b |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 10d |
715900116 |
Fixed Yoke Joint This part replaces 715900232. |
| 10e |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 10f |
715900183 |
U-Joint |
| 10g |
715900117 |
SNAP RING - Call your local BRP dealership |
| 10h |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 15 |
705402041 |
Drive Axle Ass'y This part replaces 705401238. |
| 15a |
703500815 |
Grease Fitting |
| 15d |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 15e |
715900183 |
U-Joint |
| 15f |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 15g |
715900117 |
SNAP RING - Call your local BRP dealership |
| 16 |
705401646 |
Ball Bearing This part replaces 705401498. |
| 18 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 19 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 20 |
503032900 |
Washer |
| 25 |
705400036 |
Wear Ring |
| 35 |
705500504 |
Fill Level Plug |
| 36 |
705500506 |
Copper Washer |
| 40 |
705401874 |
RH CV Joint This part replaces 705401236. |
| 40a |
705401344 |
CV Joint |
| 40b |
705401345 |
Boot Kit, Wheel Side |
| 40c |
705401346 |
Boot Kit, Differential Side |
| 40d |
705401348 |
RH Plunging Joint |
| 40e |
705401349 |
Circlip Joint |
| 40f |
715900282 |
Oetiker Clamp |
| 40g |
715900283 |
Oetiker Clamp, Small |
| 40h |
715900284 |
Oetiker Clamp, Large |
| 40i |
715900261 |
Oetiker Clamp, Small |
| 45 |
705401548 |
LH Front Knuckle |
| 46 |
705401549 |
RH Front Knuckle |
| 50 |
705401873 |
LH CV Joint This part replaces 705401235. |
| 50a |
705401344 |
CV Joint |
| 50b |
705401345 |
Boot Kit, Wheel Side |
| 50c |
705401346 |
Boot Kit, Differential Side |
| 50d |
705401350 |
LH Plunging Joint |
| 50e |
705401349 |
Circlip Joint |
| 50f |
715900282 |
Oetiker Clamp |
| 50g |
715900283 |
Oetiker Clamp, Small |
| 50h |
715900284 |
Oetiker Clamp, Large |
| 50i |
715900261 |
Oetiker Clamp, Small |
| 60 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 80 |
293370019 |
Circlip |
| 90 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 |
230603046 |
Hex. Flange Screw, M10 X 130 |
| 110 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 115 |
234201474 |
Conical Spring Washer 10 mm |
| 130 |
705501900 |
Wheel Hub |
| 140 |
250300060 |
Wheel Stud This part replaces 250300051. |
| 150 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 160 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 |
250400036 |
Cotter Pin |
| 180 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 185 |
414115200 |
Tie-Rap 180 mm |
| 200 |
705400928 |
Wheel Cap |
| 211 |
705400193 |
Rim Valve With Cap |
| 225 |
293000110 |
Valve Cap |
| 230 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 270 |
293250246 |
O-Ring |
| 290 |
705400780 |
Wear Sleeve |
| 310 |
250200102 |
Flat Washer M12 |
