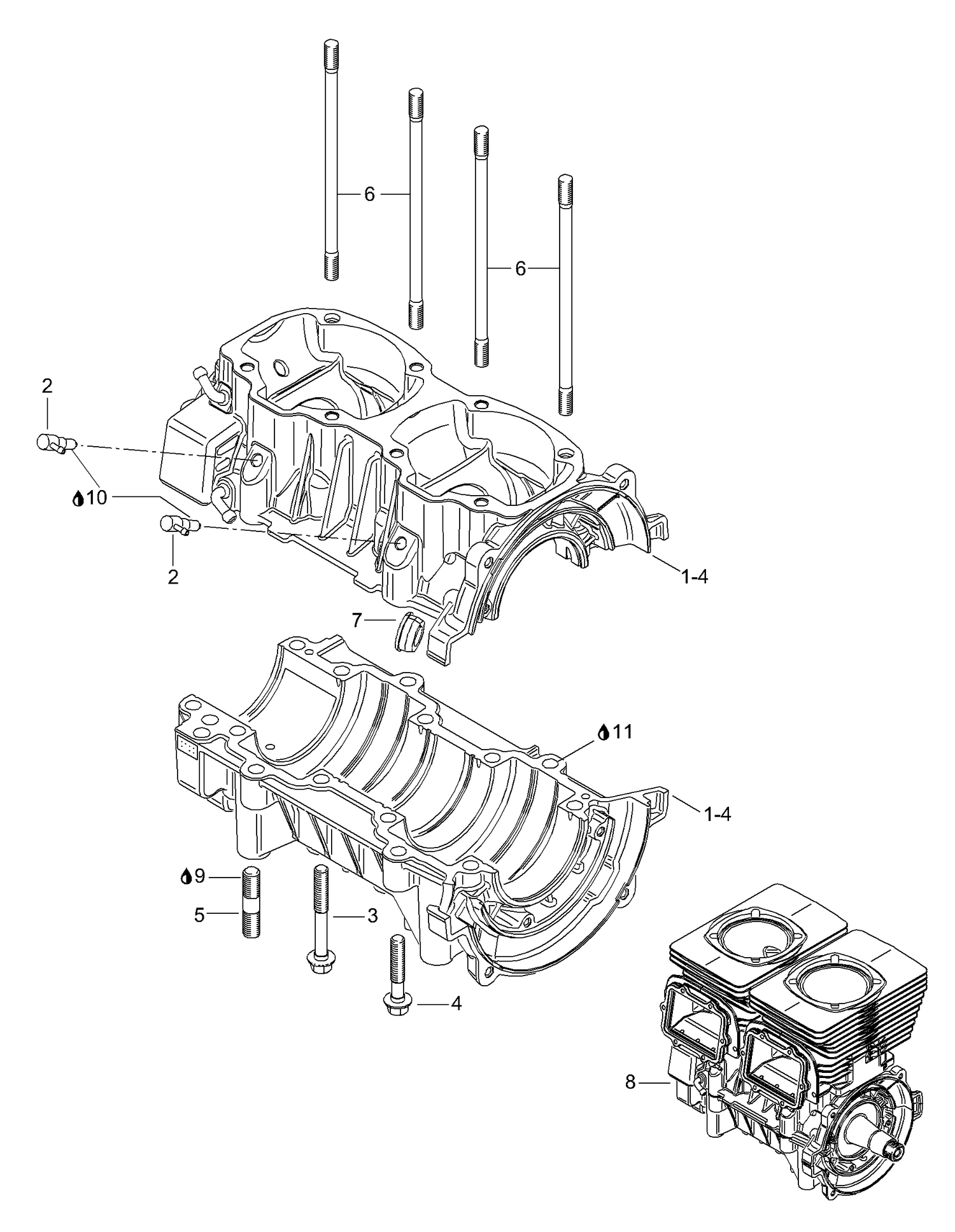

05- Crankcase
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420956511 | Check Valve This part replaces 420956510. |
| 3 | 420640959 | Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 4 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 5 | 420941644 | Stud |
| 6 | 420840556 | Stud |
| 7 | 420860962 | Cable grommet |
| 9 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 10 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
