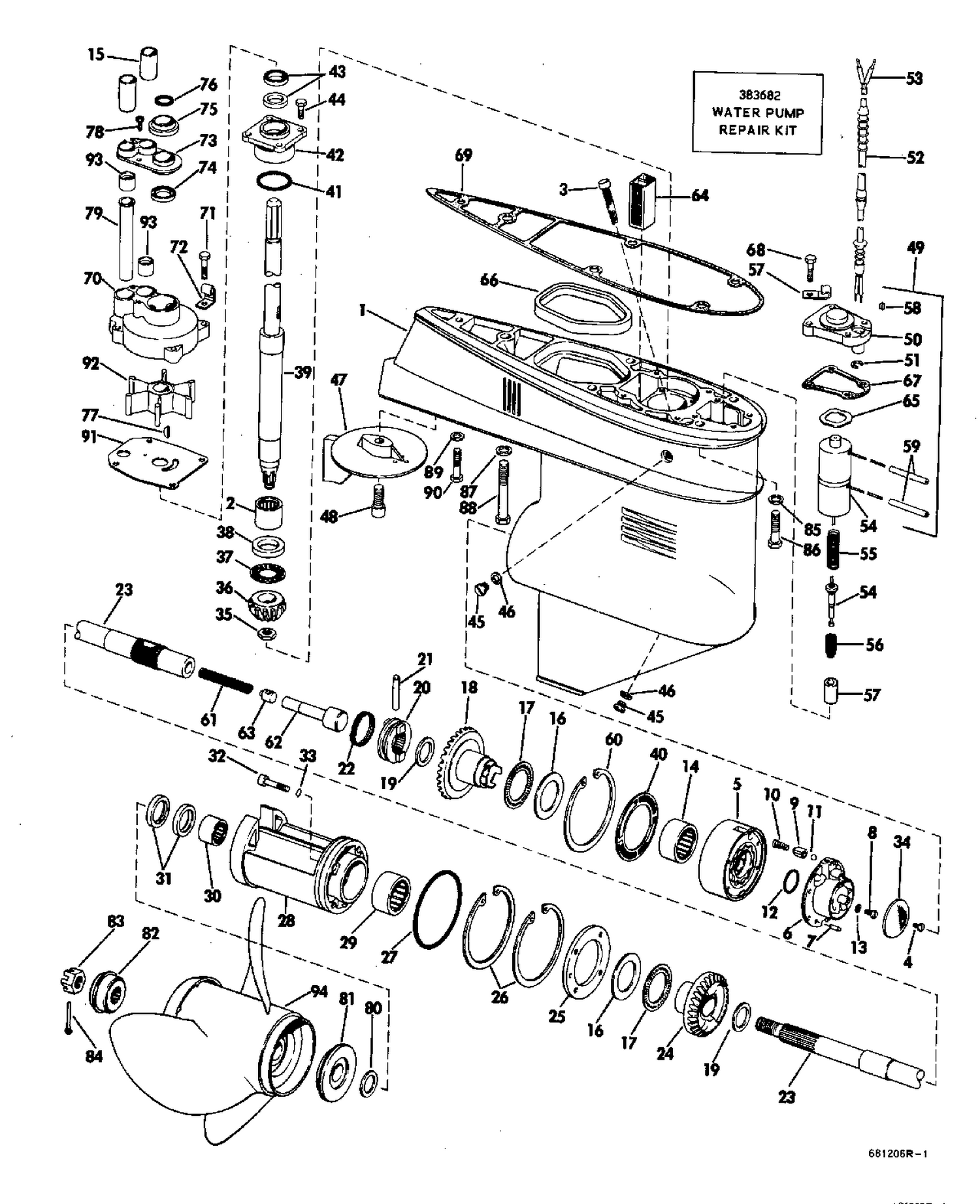

| Ref | Part Number | Description |
|---|
| 1 |
0382998 |
GEARCASE & BEARING ASSEMBLY |
| 3 |
0383104 |
SCREEN & RETAINER |
| 5 |
0383060 |
OIL PUMP ASSEMBLY |
| 6 |
0382956 |
VALVE HOUSING ASSY |
| 9 |
0314033 |
GUIDE, Pump housing |
| 12 |
0314491 |
O RING |
| 15 |
0314081 |
GUIDE WATER TUBE |
| 18 |
0382310 |
GEAR & BUSHING ASSEMBLY |
| 19 |
0307079 |
THRUST WASHER, Shifter dog |
| 20 |
0313522 |
SHIFTER, Clutch dog |
| 23 |
0382584 |
PROPELLER SHAFT ASSY |
| 24 |
0316522 |
GEAR, Reverse This part replaces 0382309. |
| 28 |
0383120 |
BEARING HOUSING & SEAL ASSEMBLY |
| 30 |
0377135 |
BEARING, Gearcase |
| 32 |
0313291 |
SCREW |
| 33 |
0307853 |
O RING |
| 34 |
0314195 |
SCREEN, Housing |
| 37 |
0382342 |
THRUST BEARING, Pinion |
| 38 |
0313344 |
THRUST WASHER, Pinion |
| 39 |
0384425 |
DRIVESHAFT ASSEMBLY, Standard This part replaces 0382361. |
| 39 |
0384426 |
DRIVESHAFT ASSEMBLY, Long This part replaces 0382362. |
| 40 |
0383105 |
RING TERMINAL |
| 42 |
0383119 |
BEARING HOUSING & SEAL ASSEMBLY |
| 44 |
0304027 |
VIS, arbre de commande de sens de marche |
| 47 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0314022. |
| 48 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 49 |
0383616 |
SOLENOID, Cable and cover assembly |
| 50 |
0314083 |
COVER, Solenoid |
| 52 |
0383542 |
CABLE ASSEMBLY This part replaces 0382753. |
| 54 |
0580723 |
SOLENOID ASSEMBLY |
| 55 |
0313959 |
SPRING, Upper |
| 56 |
0510800 |
SPRING, Lower |
| 57 |
0510801 |
SLEEVE |
| 60 |
0313511 |
RETAINING RING, Pump housing |
| 61 |
0314020 |
SPING, Propeller shaft |
| 62 |
0313510 |
PISTON |
| 63 |
0313449 |
RETAINER, Clutch dog |
| 65 |
0314126 |
WAVE WAHSER, Solenoid |
| 68 |
0307151 |
SCREW |
| 69 |
0313765 |
GASKET, Gearcase to hsg |
| 70 |
0313815 |
IMPELLER HOUSING, Gearcase |
| 71 |
0308820 |
SCREW, Impeller housing |
| 72 |
0310441 |
CLAMP, CPS lead |
| 73 |
0383592 |
COVER, Impeller housing |
| 75 |
0305760 |
GROMMET |
| 79 |
0315152 |
EXT. WATER TUBE, Imp. hsg This part replaces 0314489. |
| 80 |
0313925 |
THRUST WASHER |
| 81 |
0382355 |
THRUST BUSH & SLEEVE ASSY |
| 82 |
0314504 |
SPACER, Prop nut |
| 85 |
0307708 |
RONDELLE GROWER |
| 87 |
0306314 |
L'WASHER,Scr,long |
| 88 |
0313697 |
SCR,Grc to hsg.long |
| 90 |
0306503 |
SCREW, Short |
| 91 |
0313766 |
PLATE, Impeller housing |
| 92 |
0382547 |
IMPELLER ASSEMBLY |
| 94 |
0382761 |
PROPELLER ,14 x 11 |
| 94 |
0382765 |
PROPELLER 13 X 19 |
| 94 |
0383160 |
PROPELLER 14 X 19 |
| 94 |
0765181 |
PROPELLER This part replaces 0382762. |
| 94 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 94 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 0383131 |
0383131 |
GEARCASE ASSEMBLY, Complete standard |
| 0383132 |
0383132 |
GEARCASE ASSEMBLY, Complete long |
