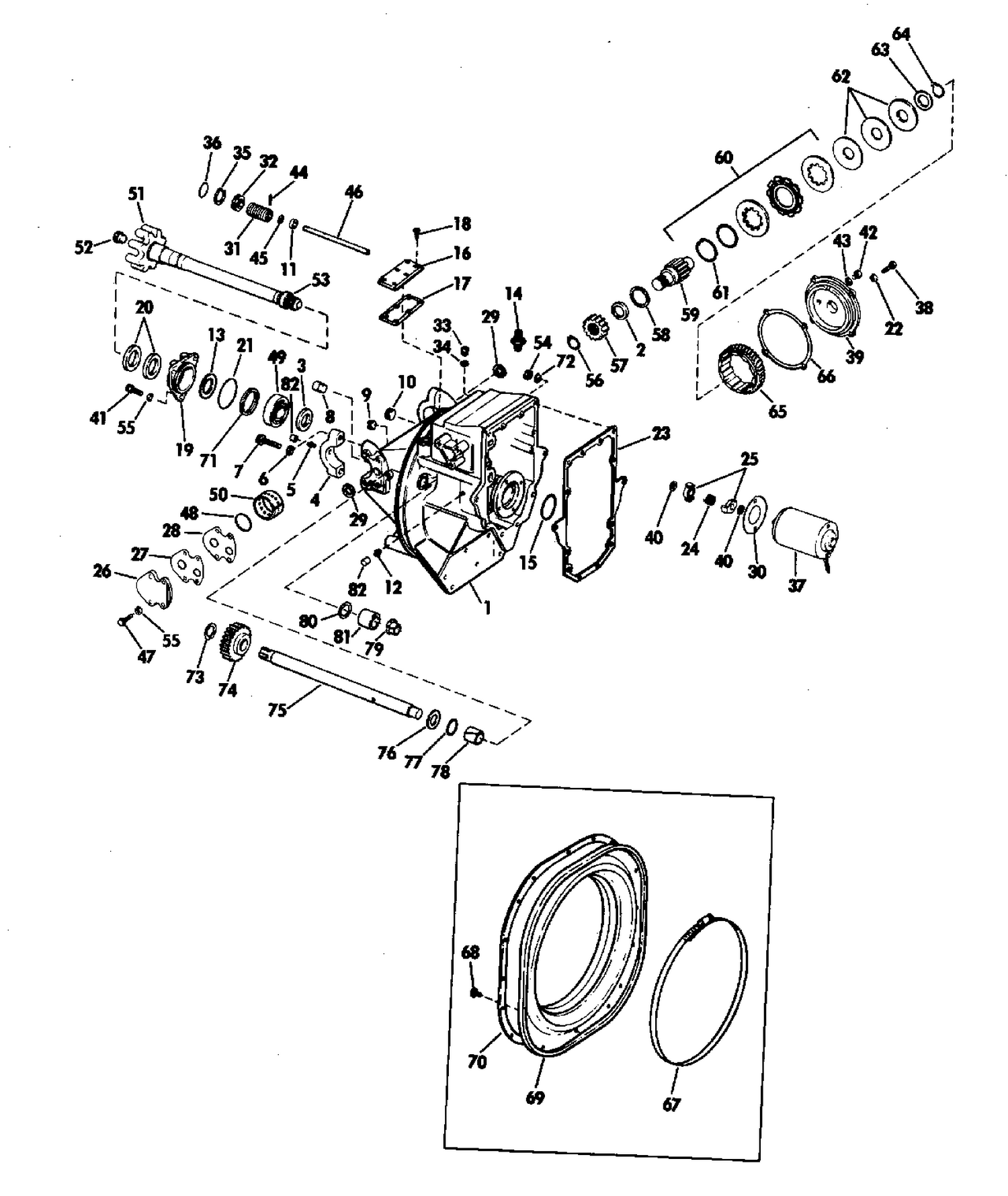

| Ref | Part Number | Description |
|---|
| 1 |
0384561 |
INTERMEDIATE HOUSING PIVOT CAP ASSY |
| 1 |
0979971 |
INTERMEDIATE HOUSING PIVOT ASSY |
| 4 |
0383148 |
PIVOT CAP ASSEMBLY |
| 6 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 7 |
0314614 |
SCREW, Pivot cap |
| 8 |
0310964 |
PLUG |
| 9 |
0314273 |
PLUG |
| 10 |
0908276 |
CAP PLUG This part replaces 0309961. |
| 11 |
0308634 |
BUSHING, Tilt worm shaft |
| 13 |
0908002 |
SHIM, Seal retainer .002" |
| 13 |
0908003 |
SHIM, Seal retainer .003" |
| 13 |
0908004 |
SHIM, Seal retainer .004" |
| 13 |
0908005 |
SHIM, Seal retainer .005" |
| 13 |
0908006 |
SHIM, Seal retainer .006" |
| 13 |
0908007 |
SHIM, Seal retainer .007 |
| 13 |
0908008 |
SHIM, Seal retainer .008" |
| 13 |
0908009 |
SHIM, Seal retainer .009" |
| 13 |
0908010 |
SHIM, Seal retainer .010" |
| 14 |
0316521 |
NIPPLE, Housing |
| 16 |
0313247 |
COVER, Oil reservoir |
| 17 |
0313246 |
GASKET, Cover |
| 18 |
0307195 |
SCREW RECTIFIER MOUNTING |
| 19 |
0384559 |
RETAINER & SEAL ASSY |
| 19 |
0979997 |
RETAINER & SEAL ASSY |
| 20 |
0309989 |
OIL RETAINER |
| 21 |
0316494 |
O-RING, Retainer |
| 23 |
0909515 |
GASKET This part replaces 0316493. |
| 24 |
0309267 |
SPRING |
| 25 |
0980274 |
COUPLING & KEY This part replaces 0379594. |
| 26 |
0313264 |
COVER |
| 27 |
0316499 |
GASKET |
| 28 |
0316498 |
PLATE, Cover |
| 29 |
0313244 |
SEAL |
| 30 |
0311508 |
GASKET |
| 31 |
0908168 |
WORM This part replaces 0308725. |
| 32 |
0308631 |
RETAINER BEARING |
| 33 |
0313224 |
PLUG,Oil fill |
| 34 |
0315189 |
GASKET, Oil indicator |
| 35 |
0308632 |
RETAINING RING |
| 37 |
0382138 |
POWER PISTON ASSY |
| 39 |
0908564 |
COVER This part replaces 0308798. |
| 40 |
0310612 |
WASHER |
| 41 |
0308707 |
SCREW |
| 44 |
0309525 |
PIN, Tilt worm shaft |
| 45 |
0309272 |
WASHER |
| 46 |
0980183 |
SHAFT, Tilt worm This part replaces 0310613. |
| 48 |
0308626 |
O RING |
| 49 |
0384553 |
BEARING ASSEMBLY |
| 49 |
3854250 |
BEARING, Driveshaft, upper This part replaces 0979986. |
| 50 |
0308602 |
LINER |
| 51 |
0979739 |
DRIVSHAFT & BALL GEAR |
| 51 |
0979973 |
DRIVESHAFT & BALL GEAR |
| 52 |
0308679 |
PLUG, Expansion |
| 53 |
0907774 |
SEAL |
| 54 |
0313457 |
NUT, Adapter stud |
| 56 |
0911318 |
RETAINING RING This part replaces 0308633. |
| 57 |
0308453 |
GEAR |
| 58 |
0308800 |
THRUST WASHER |
| 59 |
0982593 |
SHAFT, Tilt clutch This part replaces 0980031. |
| 60 |
0380561 |
CLUTCH DISC & SHIM PKG |
| 62 |
0308809 |
BELLEVILLE SPRING |
| 63 |
0309845 |
SPACER |
| 64 |
0309844 |
RETAINING RING |
| 65 |
0308806 |
WORM WHEEL |
| 66 |
0308799 |
GASKET |
| 67 |
0308735 |
CLAMP, Seal |
| 69 |
0313080 |
SEAL |
| 70 |
0313081 |
PLATE, Transom seal |
| 71 |
0316488 |
SPACER, Intermediate housing |
| 72 |
0306453 |
LOCKWASHER, Fuel pump |
| 73 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 74 |
0908461 |
GEAR, Shaft This part replaces 0908367. |
| 75 |
0908020 |
SHAF, Steering pulley |
| 76 |
0308697 |
WASHER |
| 78 |
0308693 |
BUSHING, Front |
| 80 |
0908060 |
BOW WASHER, Shoulder screw |
| 81 |
0908022 |
SPACER |
| 0382068 |
0382068 |
TRANSOM SEAL ASSEMBLY, Oval opening |
