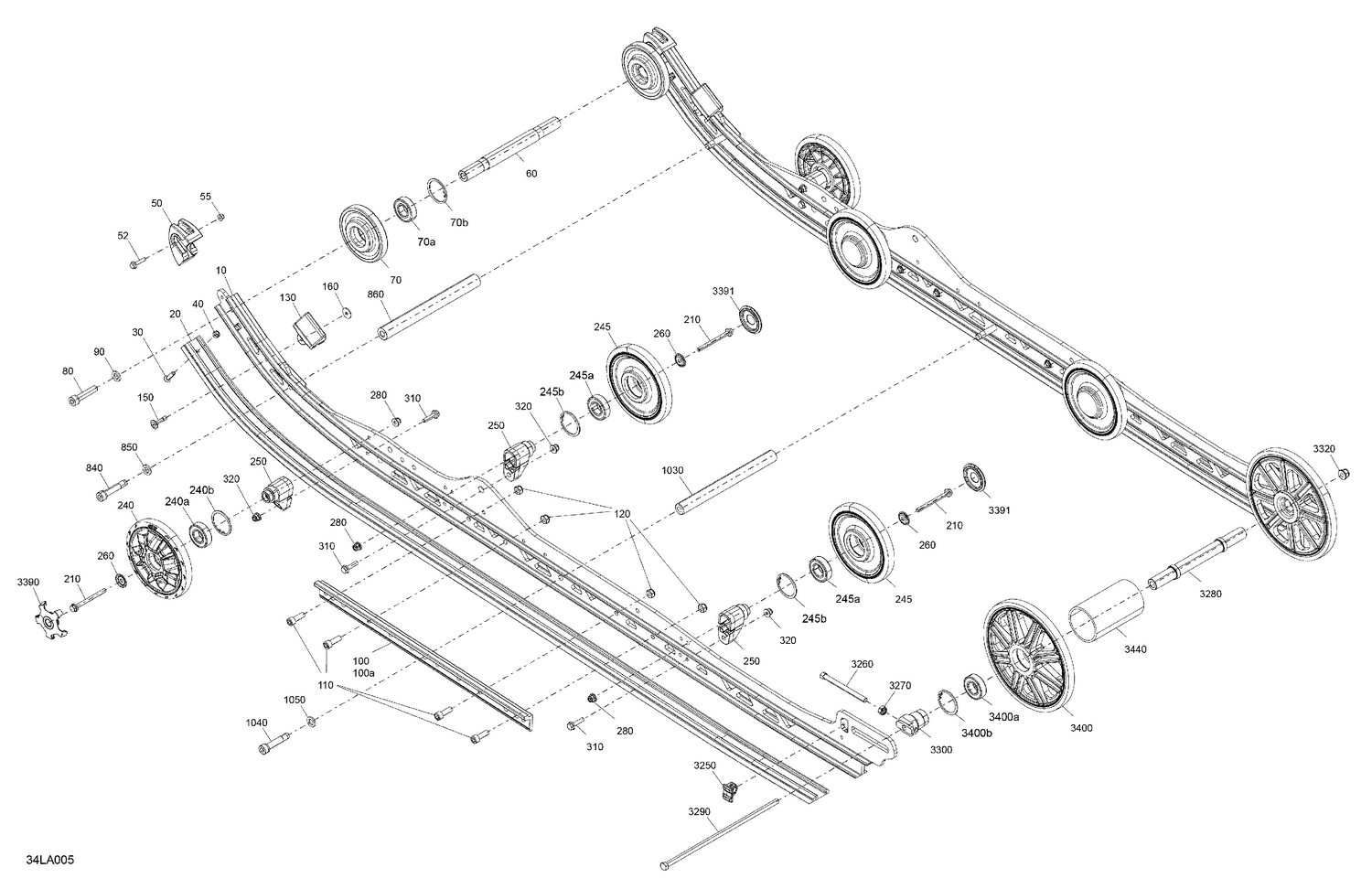

05- Suspension - Rear - Lower Section
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503195910 | Race Orange, Runner |
| 20 | 503191501 | Slider Shoe 163 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 50 | 503196874 | Rail Protector This part replaces 503194249. |
| 52 | 207652544 | Hex. Flange Screw M5 X 25 |
| 55 | 233251434 | Flanged Elastic Nut M5 |
| 60 | 503192842 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205505054 | Socket Screw |
| 90 | 503192496 | Washer |
| 100a | 503195397 | Rail Reinforcement |
| 110 | 205082554 | Socket HD Screw M8 x 25 |
| 120 | 232581414 | Hex. Elastic Stop Nut M8 |
| 130 | 503192106 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 210 | 207667056 | Hex. Flange Screw M6 x 70 |
| 240a | 503190396 | Ball Bearing |
| 240b | 415129371 | Retaining Ring |
| 245a | 503190396 | Ball Bearing |
| 245b | 415129371 | Retaining Ring |
| 250 | 503193894 | Casted Support |
| 260 | 503191820 | Wheel Cup M6 |
| 280 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 310 | 207662556 | Hex. Flange Screw M6 X 25 |
| 320 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 840 | 205505054 | Socket Screw |
| 850 | 503192496 | Washer |
| 860 | 503195015 | Limiter Strap Shaft |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 3250 | 503194266 | Tensioner |
| 3260 | 503194267 | Hex. Cap Screw M8 X 95 |
| 3270 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3280 | 503194508 | Rear Wheell Axle |
| 3290 | 503194069 | Bolt M8 |
| 3300 | 503194747 | Tip |
| 3320 | 233281466 | Elastic Flang Nut M8 |
| 3390 | 503195345 | Black, Wheel Cap |
| 3391 | 503192771 | Black, Wheel Cap |
| 3400a | 503190396 | Ball Bearing |
| 3400b | 415129371 | Retaining Ring |
