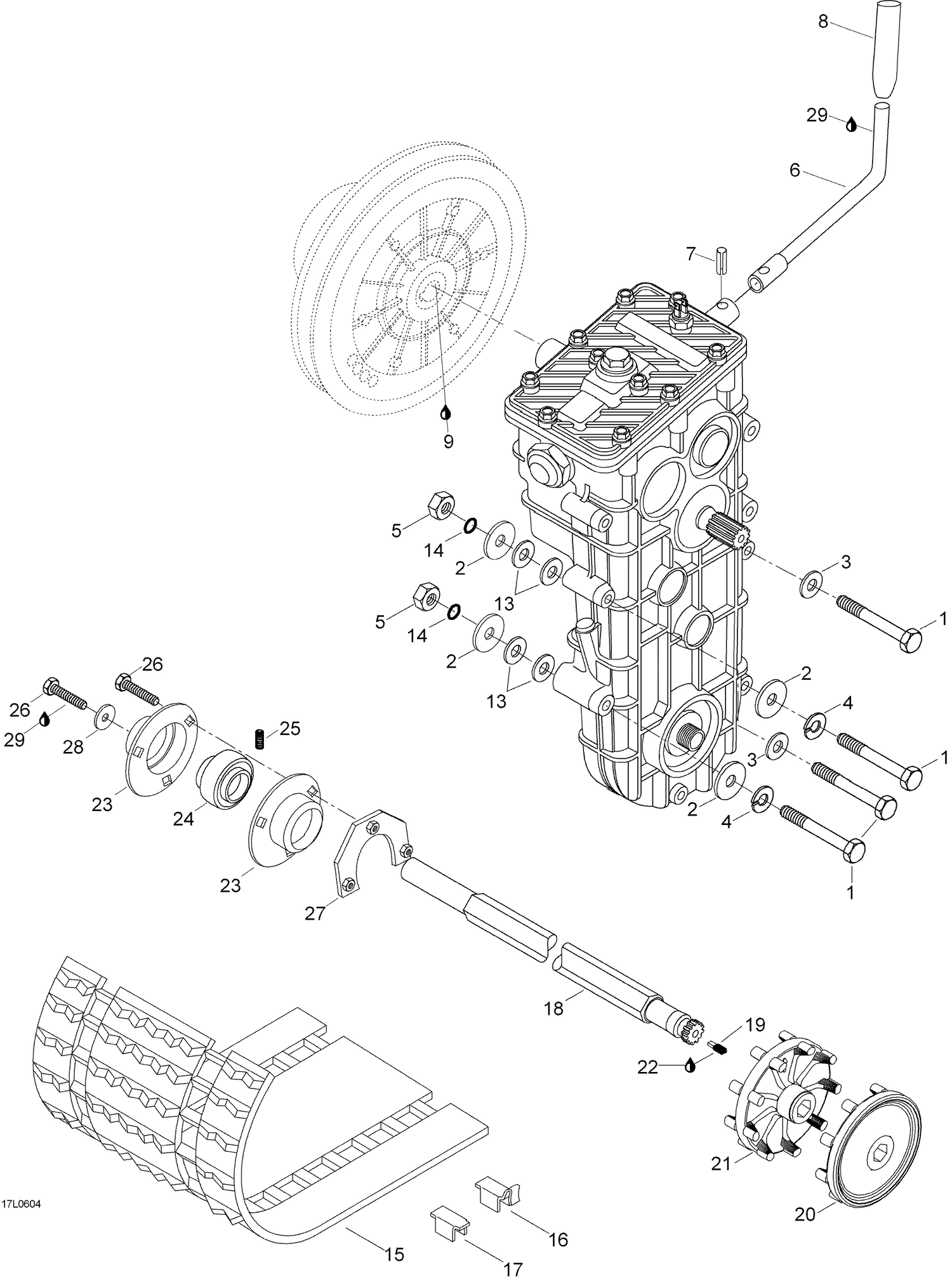

| Ref | Part Number | Description |
|---|
| 1 |
40012 |
HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 2 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 3 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 4 |
20014 |
Lock washer 8mm |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 6 |
5340902 |
Lever welding - Call your local BRP dealership |
| 7 |
41008 |
Spring pin 5 x 24(1=10pcs) - Call your local BRP dealership |
| 8 |
28247 |
Button |
| 9 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 11 |
5142660 |
Belt Quard - Call your local BRP dealership |
| 12 |
5442726 |
Pin |
| 13 |
20077 |
M8 Washer |
| 14 |
506151140 |
O-RING - Call your local BRP dealership |
| 16 |
5318323 |
Cleat guide |
| 17 |
5318322 |
Slide guide |
| 18 |
5341662 |
Drive axle |
| 19 |
542013 |
Speedometer drive insert |
| 20 |
5342920 |
Sprocket |
| 21 |
539750 |
Sprocket |
| 22 |
293800005 |
Loctite 271, 10ml |
| 23 |
534430 |
Bearing housing set |
| 25 |
10531 |
Lock screw |
| 26 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 27 |
546421 |
Thrust ring |
| 28 |
546336 |
Washer |
