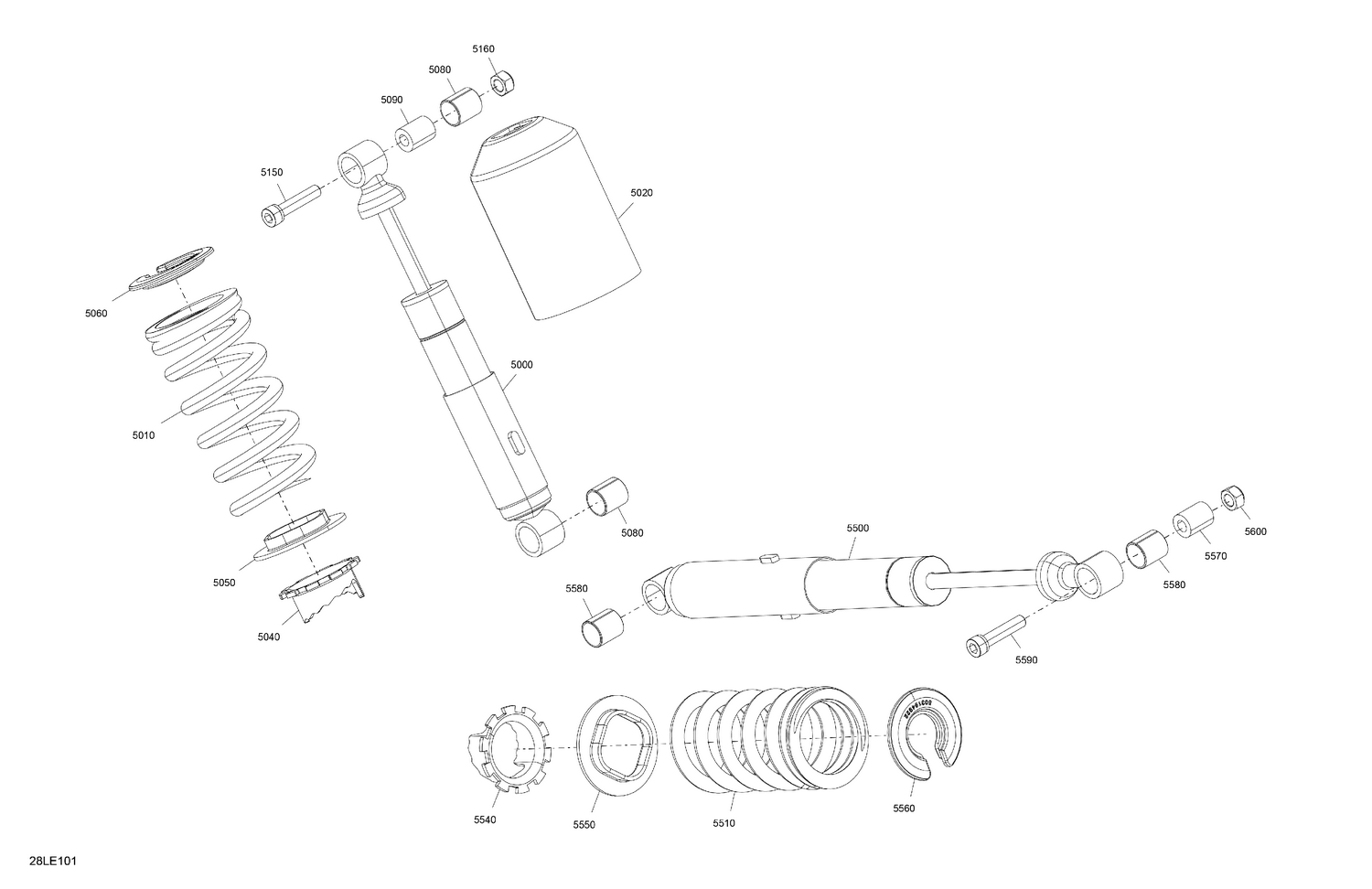

05- Suspension - Rear Shocks
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503196909 | Central Shock Absorber Hpg |
| 5010 | 503193293 | Spring 220 MM-35 N/MM |
| 5020 | 5346754 | Shock protector |
| 5040 | 230078 | Adjusting Cam |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 40134 | Screw Socket HD.DIN 912 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500 | 503196911 | Rear Shock Absorber Hpg |
| 5510 | 503196072 | Spring 330 Mm-55 N/Mm |
| 5540 | 230078 | Adjusting Cam |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5590 | 40134 | Screw Socket HD.DIN 912 |
