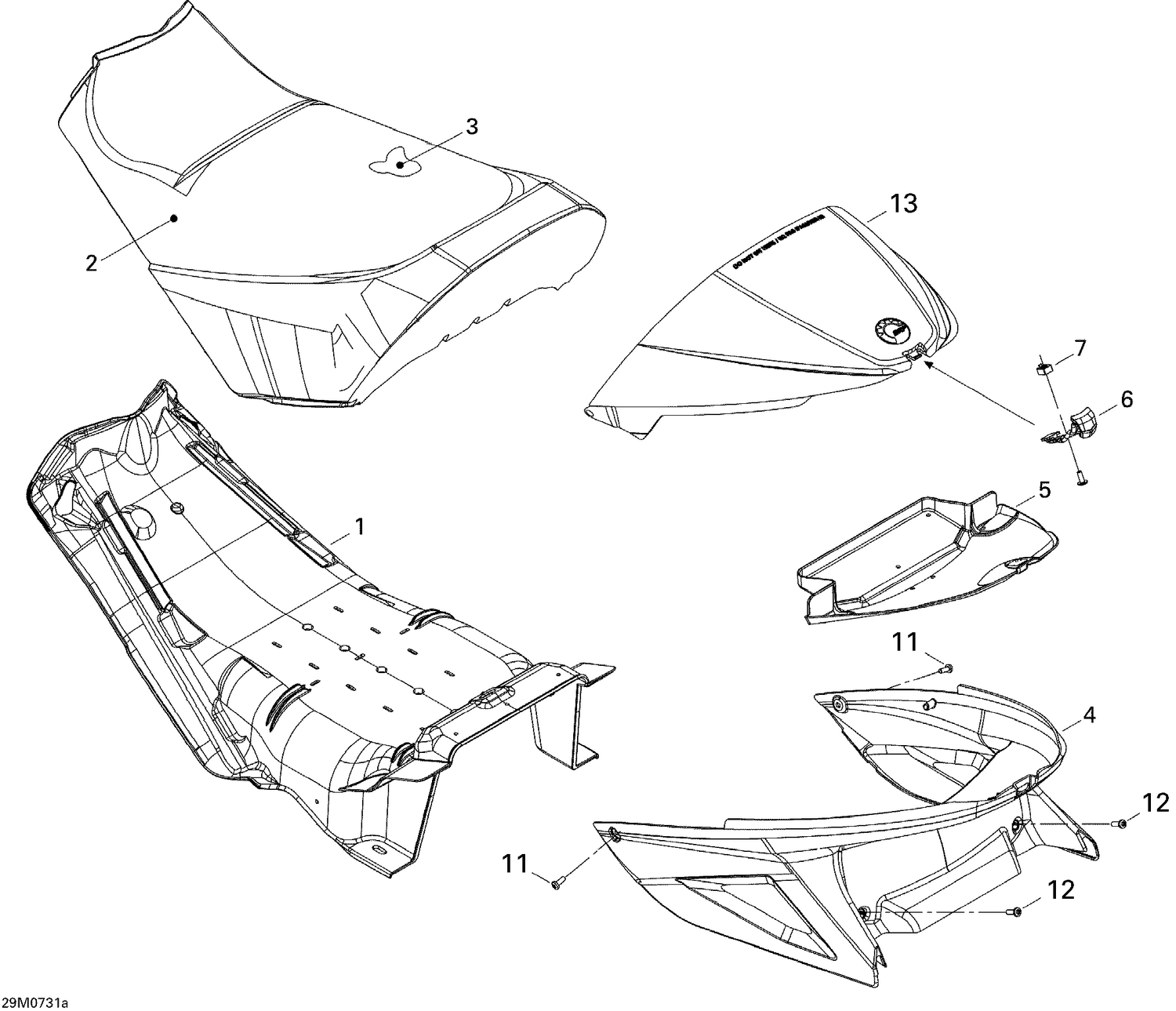

09- Seat Renegade
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004575 | SEAT BASE - Call your local BRP dealership |
| 3 | 510004275 | SEAT FOAM - Call your local BRP dealership |
| 5 | 510004600 | BOX LINER - Call your local BRP dealership |
| 6 | 510003917 | Bracket |
| 7 | 708000046 | NUT HOUSING ASS'Y M6 - Call your local BRP dealership |
| 11 | 232561414 | Elastic Stop Nut M6 |
| 12 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
