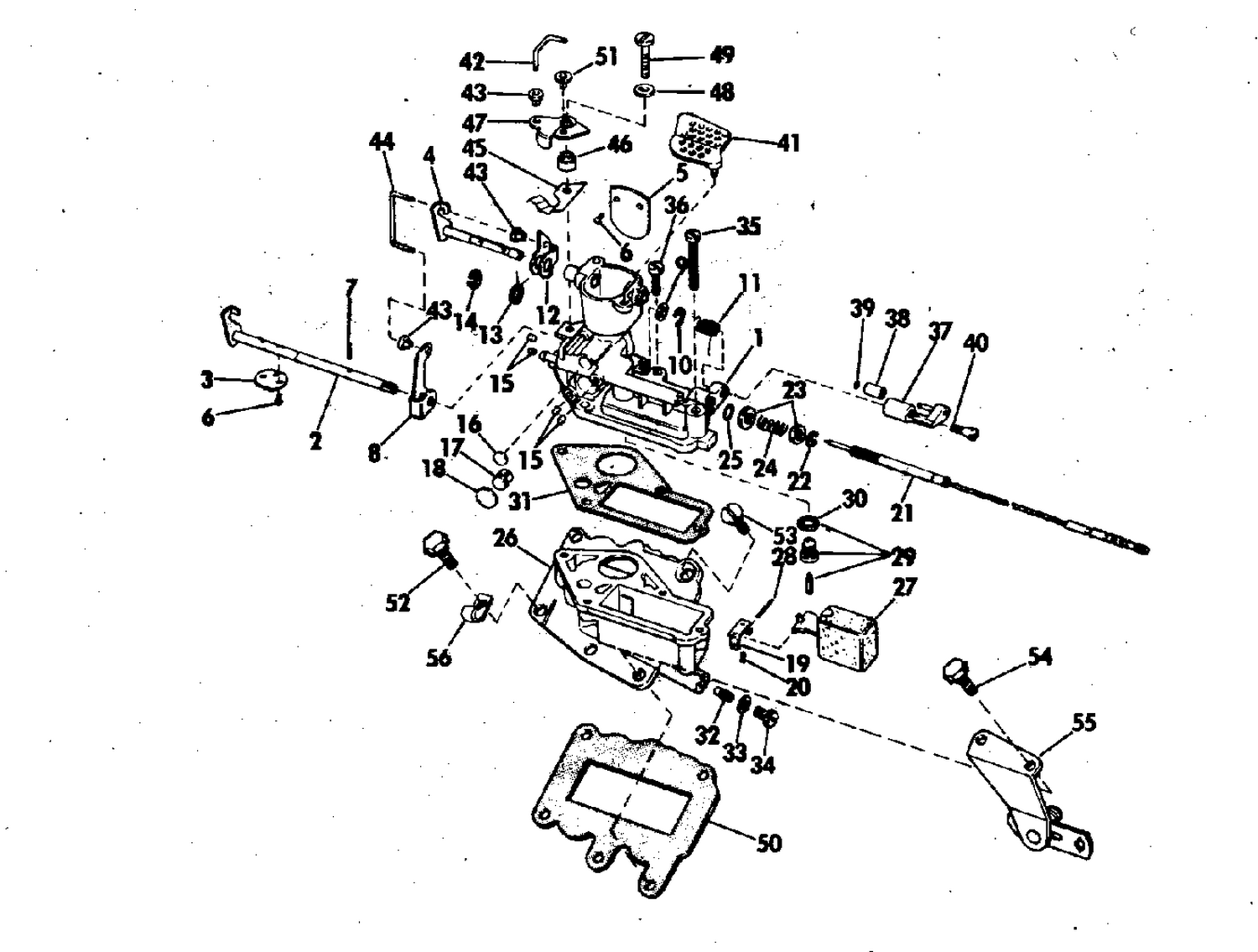

| Ref | Part Number | Description |
|---|
| 1 |
0385842 |
BODY ASSY. |
| 2 |
0379153 |
SHAFT & LEVER, Throttle |
| 3 |
0312908 |
THROTTLE VALVE |
| 4 |
0379152 |
CHOKE SHAFT ASSY |
| 5 |
0309677 |
CHOKE VALVE |
| 7 |
0305249 |
ROLL PIN, Shaft |
| 8 |
0309647 |
ARM, Throttle |
| 11 |
0309782 |
SPRING, Throtlle return |
| 12 |
0309632 |
ARM, Choke |
| 13 |
0309699 |
SPRING, Choke return |
| 16 |
0550078 |
CORE PLUG |
| 17 |
0312909 |
FILLER PLUG |
| 19 |
0305223 |
HINGE |
| 20 |
0309650 |
DRIVE SCREW, Hinge |
| 21 |
0385841 |
NEEDLE, Slow speed |
| 22 |
0312382 |
E-RING |
| 23 |
0300399 |
WASHER |
| 24 |
0302993 |
SPRING |
| 26 |
0309726 |
FLOAT CHAMBER |
| 27 |
0379154 |
FLOAT & ARM ASSEMBLY |
| 28 |
0312481 |
HINGE PIN, Float |
| 31 |
0309741 |
GASKET, Body to chamber |
| 34 |
0307832 |
PLUG, Screw |
| 35 |
0309654 |
SCREW |
| 36 |
0309652 |
SCREW, Short |
| 37 |
0379195 |
LEVER & PIN |
| 38 |
0305232 |
ROLLER, Cam foller |
| 39 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 40 |
0551517 |
SCREW |
| 41 |
0309786 |
SCREEN, Carburetor intake |
| 42 |
0309627 |
LINK, Choke to bellcrank |
| 43 |
0204708 |
RETAINER |
| 44 |
0309656 |
LINK, Choke to throttle |
| 45 |
0309678 |
SPRING, Choke detent |
| 46 |
0309672 |
SPACER, Bellcrank |
| 47 |
0312145 |
BELLCRANK, Choke detent |
| 50 |
0309658 |
GASKET, Carb. mtg |
| 51 |
0313329 |
LOCKWASHER, Carburetor link |
| 52 |
0303288 |
SCREW, Carb to manifold |
| 53 |
0554330 |
SCREW, Cam lever |
| 54 |
0303288 |
SCREW, Carb to manifold |
| 55 |
0381826 |
VIBRATION DAMPENER ASSEMBLY, Stbd |
| 0385843 |
0385843 |
CARBURETOR ASSY |
