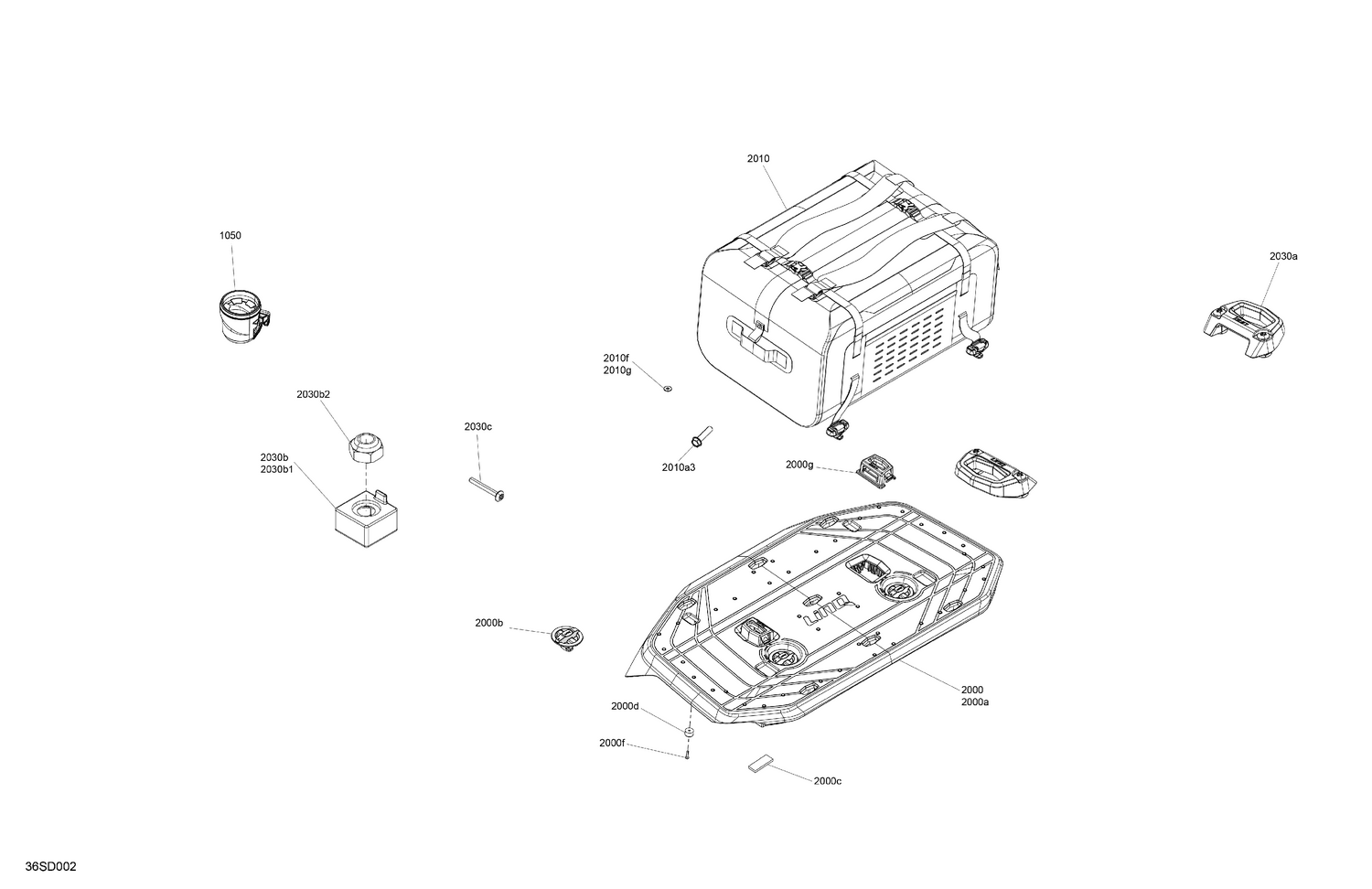

09- Miscellaneous - Utilities
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 295101230 | Cup Holder Kit |
| 2000a | 269801049 | Luggage Rack Linq |
| 2000b | 708200274 | Latch |
| 2000c | 278003860 | Stopper |
| 2000d | 293830226 | Rubber Stopper |
| 2000f | 250001066 | Flange Torx Screw K50 X 20 |
| 2000g | 295100858 | Linq Bases Kit |
| 2010a3 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 2010f | 250200025 | Washer M5 |
| 2010g | 250200024 | Rubber Washer 5 mm |
| 2030a | 860201806 | Luggage Rack Base With Hardware |
| 2030b1 | 269500252 | M6 Nut Housing Ass'y |
| 2030b2 | 232561200 | Brass Elastic Stop Nut M6 |
