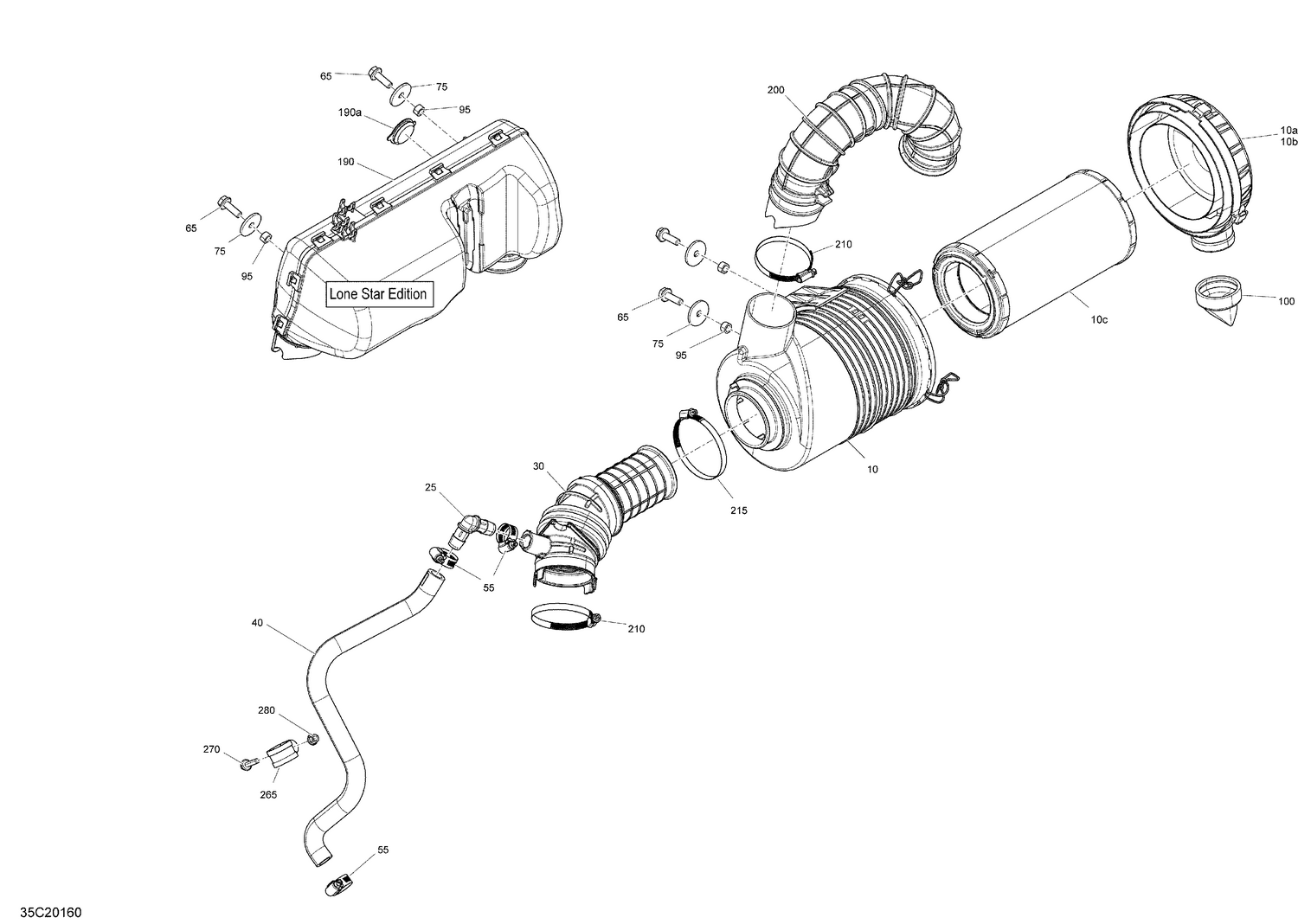

02- Engine - Air Intake - EVAP
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900515 | Silencer Air Cover Ass'y |
| 10b | 715900514 | O-Ring |
| 10c | 715900394 | Air Filter |
| 25 | 293710155 | Elbow Fitting 90 |
| 30 | 707800834 | Intake Duct |
| 40 | 707801105 | Formed Crankcase Hose This part replaces 707800868. |
| 55 | 293650173 | Tridon Gear Clamp |
| 65 | 207682534 | Hex. Flange Screw M8 X 25 |
| 75 | 250200158 | Flat Washer M8 |
| 95 | 277000980 | Bushing |
| 100 | 715003114 | Duct Bill Valve |
| 190a | 293000125 | Plug |
| 200 | 707800752 | Air Inlet Tube |
| 210 | 293650091 | Norma Clamp |
| 215 | 293650096 | Norma Clamp |
| 265 | 709200036 | Hose Anchor |
| 270 | 207662544 | Hex. Flange Screw M6 X 25 |
