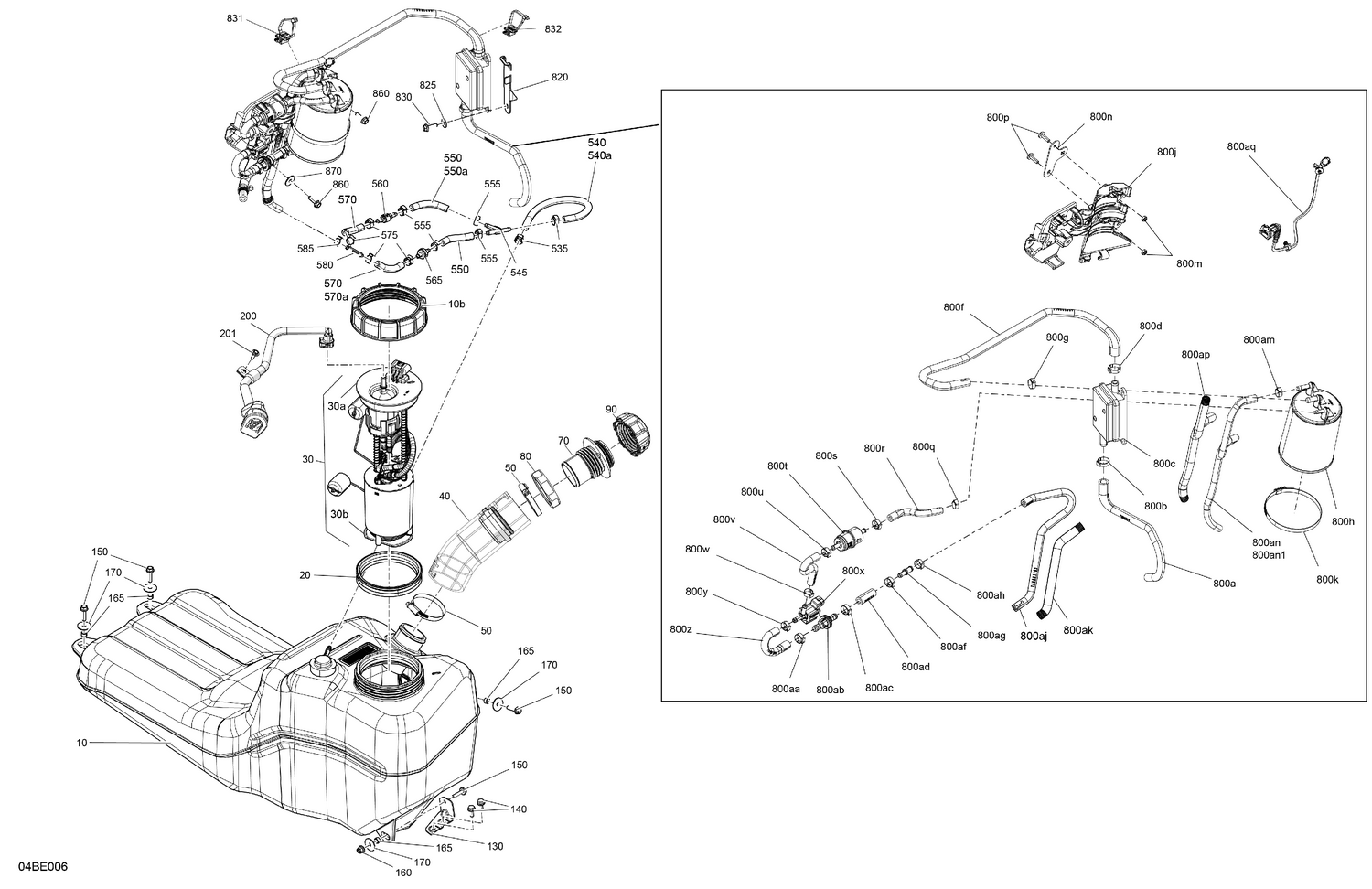

02- Engine - Fuel
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250100062 | Special Nut M130 |
| 20 | 293250514 | Pump Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709001206 | Hose Fuel Tank Ass'y |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 130 | 709001453 | Fuel Tank Support |
| 140 | 207661644 | Hex. Flange Screw M6 X 16 |
| 150 | 207662554 | Hex. Flange Screw M6 X 25 |
| 160 | 233261466 | Hex. Flange Elastic Nut M6 |
| 165 | 293900135 | Spacer |
| 170 | 250200029 | Washer M6 |
| 200 | 709001359 | Formed Hose |
| 201 | 250000959 | Screw PT Type K-50 X 16 |
| 535 | 293650042 | Oetiker Clamp |
| 540a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 545 | 293710059 | Y-Fitting |
| 550a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 555 | 293650042 | Oetiker Clamp |
| 560 | 513033469 | Check Valve |
| 565 | 275500398 | Check Valve |
| 570a | 219704611 | Hose 6.35Mm 5000Mm Long |
| 575 | 293650042 | Oetiker Clamp |
| 580 | 293710059 | Y-Fitting |
| 585 | 293650042 | Oetiker Clamp |
| 800a | 709000879 | Formed Hose |
| 800aa | 293650053 | Crimp Clamp |
| 800ab | 275500941 | Check Valve |
| 800ac | 293650053 | Crimp Clamp |
| 800ad | 709001638 | Hose |
| 800af | 293650053 | Crimp Clamp |
| 800ag | 709000933 | Flow Reducer |
| 800ah | 293650047 | Crimp Clamp, 15.3-706R |
| 800aj | 709001635 | Formed Hose |
| 800ak | 219704408 | Tubing 16 Mm 1000Mm Long |
| 800am | 293650046 | Oetiker Clamp |
| 800an1 | 219704611 | Hose 6.35Mm 5000Mm Long |
| 800ap | 219704408 | Tubing 16 Mm 1000Mm Long |
| 800aq | 710009875 | Wiring Harness |
| 800b | 293650186 | Oetiker Clamp |
| 800c | 709000524 | Air Filter |
| 800d | 293650186 | Oetiker Clamp |
| 800f | 709000957 | Formed Hose |
| 800g | 293650053 | Crimp Clamp |
| 800h | 709001673 | Charcoal Canister This part replaces 709001294. |
| 800j | 709001498 | Charcoal Canister Support |
| 800k | 293650054 | Tridon Clamp |
| 800m | 232561600 | Hex. Elastic Stop Nut M6 |
| 800n | 709001467 | Charcoal Canister Support |
| 800p | 250000712 | Torx Screw M6 X 20 |
| 800q | 293650042 | Oetiker Clamp |
| 800r | 709001496 | Charcoal Canister Hose |
| 800s | 293650047 | Crimp Clamp, 15.3-706R |
| 800t | 513034047 | Fuel Filter |
| 800u | 293650047 | Crimp Clamp, 15.3-706R |
| 800v | 709001497 | Charcoal Canister Hose |
| 800w | 293650047 | Crimp Clamp, 15.3-706R |
| 800x | 709001449 | Purge Valve |
| 800y | 293650047 | Crimp Clamp, 15.3-706R |
| 800z | 709001564 | Formed Charcoal Canister Hose |
| 820 | 709000935 | Filter Support |
| 825 | 234062670 | Stainless Steel Flat Washer |
| 830 | 207662054 | Hex. Flange Screw M6 X 20 |
| 831 | 293750108 | Tie Wrap |
| 832 | 293750108 | Tie Wrap |
| 860 | 207662054 | Hex. Flange Screw M6 X 20 |
