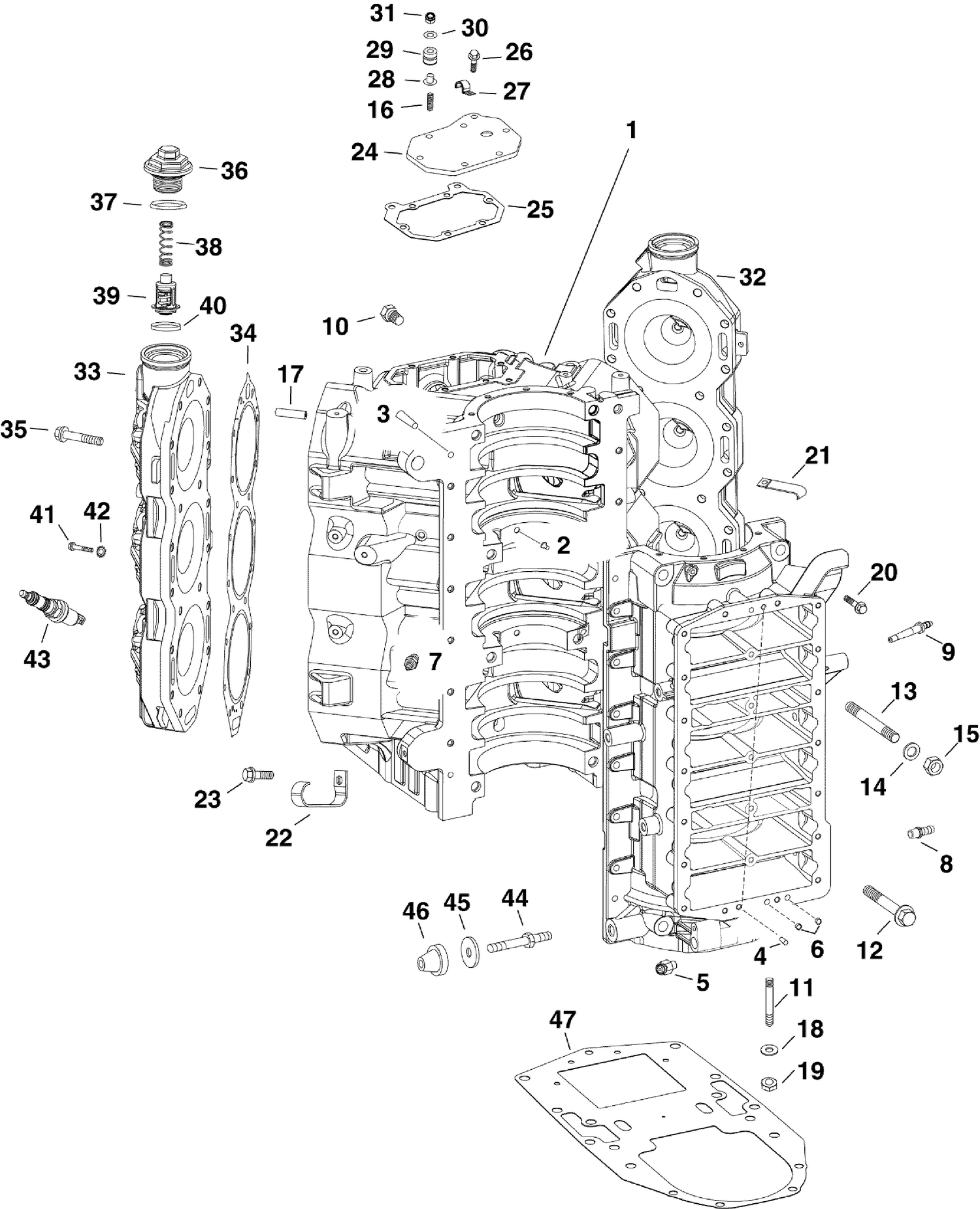

| Ref | Part Number | Description |
|---|
| 1 |
5008554 |
Cyl This part replaces 5007297. |
| 22 |
0351745 |
CLAMP, Harness to block |
| 23 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 24 |
0347318 |
COVER |
| 27 |
0352767 |
CLAMP, Fuel return rail |
| 32 |
5007606 |
HEAD, Cylinder head - PORT |
| 33 |
5007607 |
HEAD, Cylinder head - Starboard |
| 35 |
0352913 |
BOLT, Cylinder head |
| 36 |
0344771 |
COVER, Thermostat |
| 38 |
0345171 |
SPRING, Thermostat |
| 39 |
5005440 |
THERMOSTAT |
| 41 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 43 |
5007597 |
SPARK PLUG - QC8WEP |
| 44 |
0329743 |
STUD, Cover mount |
| 45 |
0349557 |
MOUNT |
| 46 |
0349556 |
Washer |
