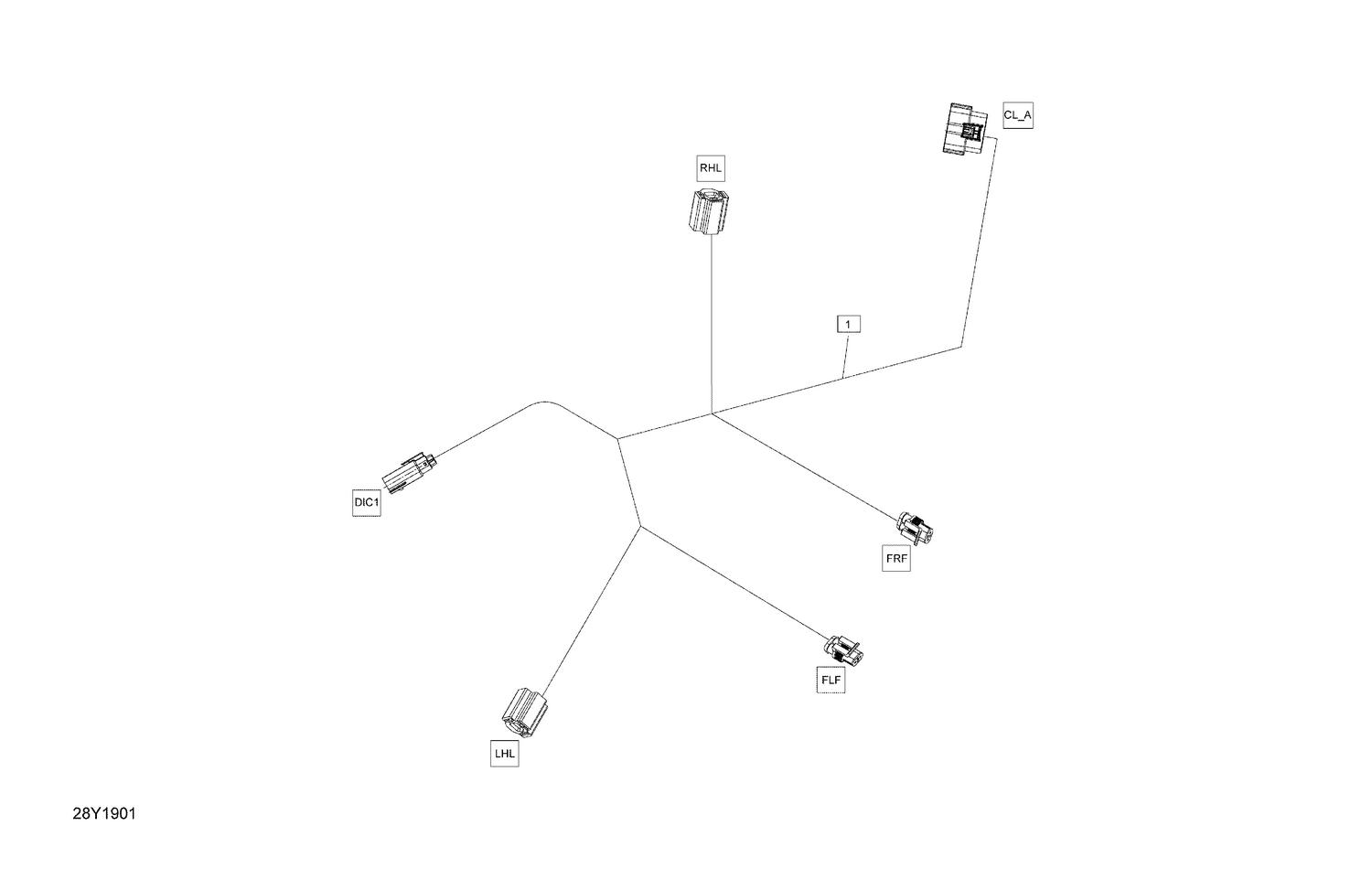

10- Electrical Harness Consol 710005454
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| CL_A | 278002858 | Female Housing 20 Circuits |
| CL_A | 278002860 | Sealing Cap |
| DIC1 | 278002860 | Sealing Cap |
| DIC1 | 515178013 | Male Terminal |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| 1 | 710005454 | Harness Console |
