Home / BRP / 2003 / MX Z Rev / MX Z Rev 600 HO/800/007 Special Edition, 2003 / 10- Electrical System 2

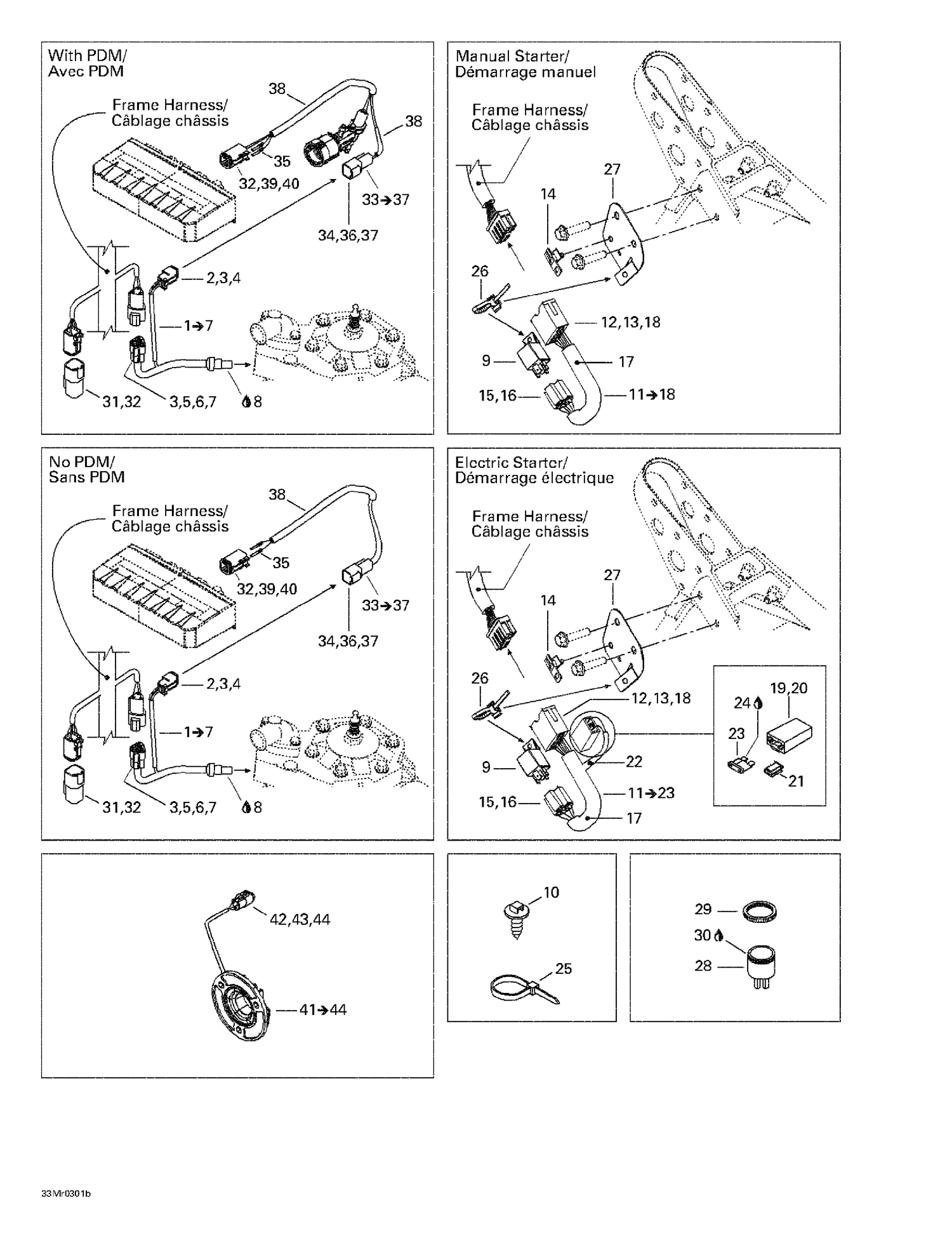

10- Electrical System 2

10- Electrical System 2

Parts (40)

RefPart NumberDescription
2 515175670 Female Terminal Housing, 2 Circuits
3 278000632 Female Terminal
4 515175675 Female Lock, 2 Circuits
5 515175671 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
6 515175676 Female Lock, 3 Circuits
7 293000052 Sealing Cap
8 219704455 Was 293800018 Loctite 592, 50 ml
9 710010053 Relay This part replaces 410113200.
10 293730040 Mount Dart This part replaces 293730018.
12 515175232 Male Terminal
13 515175273 MALE TERMINAL - Call your local BRP dealership
14 515175283 Housing Support
15 409209900 Female Housing, 5 Circuits
16 561503100 FEMALE TERMINAL - Call your local BRP dealership
17 219704400 Was 409901800 Tubing (13 mm)
18 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
19 409011600 Female Terminal
20 409004000 Fuse Holder
21 409014200 CLIP - Call your local BRP dealership
22 219704425 Tubing 6 Mm 3000Mm Long
23 278000344 Fuse, 5 Amperes
24 219704453 Was 293550004 Dielectric Grease, 150 g
25 414115200 Tie-Rap 180 mm
26 293750009 Tie-Rap 173 mm
27 515175918 Harness Support
28 515176035 HORN - Call your local BRP dealership This part replaces 415060900.
29 414805101 PLASTIC NUT - Call your local BRP dealership
30 296000309 Silicone Sealant 51388, 300 ml
31 515175668 Male Terminal Housing, 6 Circuits
32 293000052 Sealing Cap
34 278000631 Male Terminal
35 278000632 Female Terminal
36 409207500 Male Lock, 2 Circuits
37 515175665 Male Terminal Housing, 2 Circuits
38 409901300 LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
39 515175673 Male Housing, 6 Circuits
40 515175678 Male Wedge, 6 Circuits
42 515175671 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
43 515175676 Female Lock, 3 Circuits
293000052 Sealing Cap 293000052
