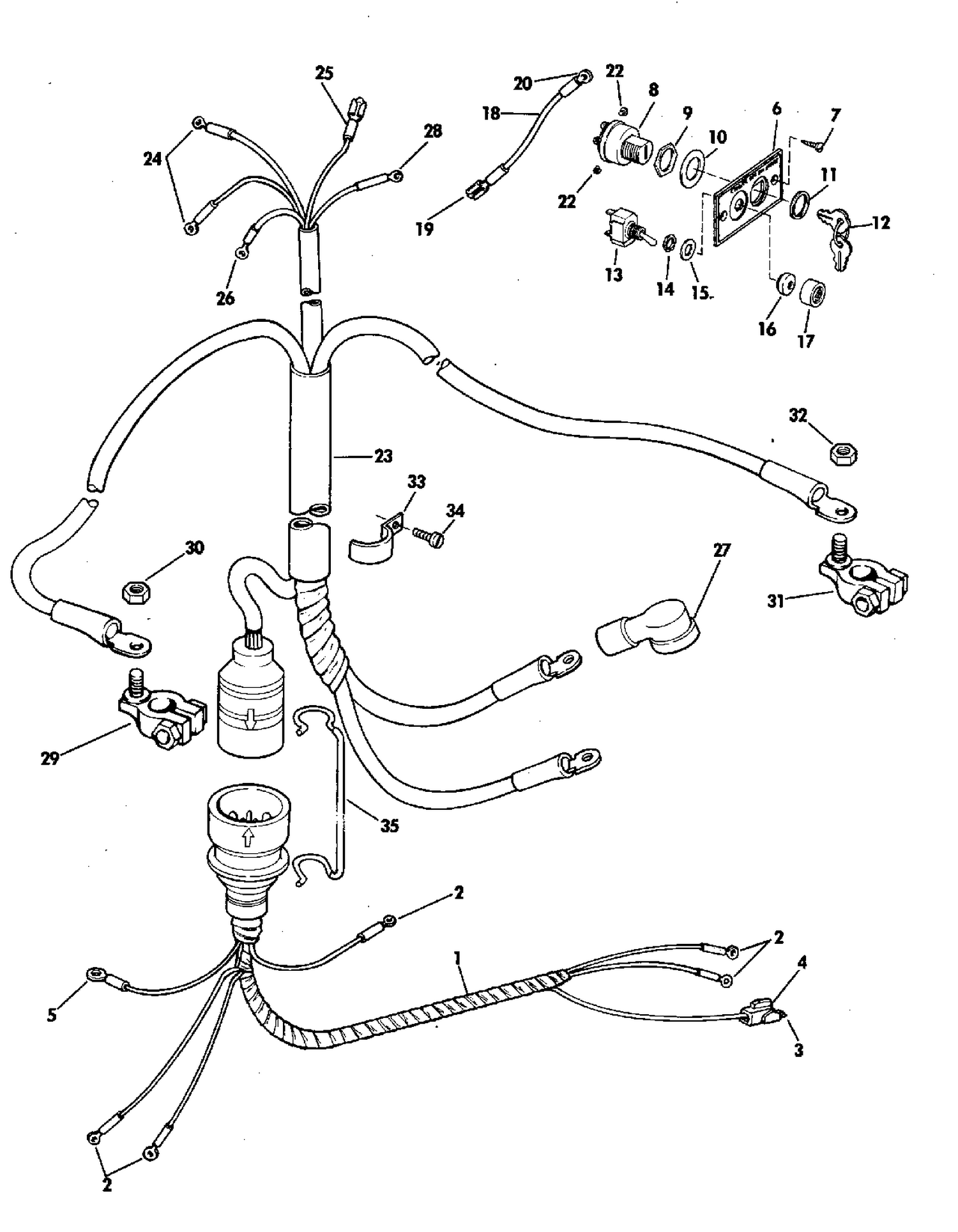

INSTRUMENT AND CABLE GROUP ELECTRIC START
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0383324 | CABLE ASSEMBLY, Motor |
| 7 | 0312691 | SCREW, Cash pannel |
| 8 | 0386947 | IGNITION SWITCH This part replaces 0383465. |
| 12 | KEY, | Ignition |
| 13 | 0975257 | SWITCH ASSEMBLLY |
| 15 | 0900696 | WASHER |
| 18 | 0383351 | LEAD ASSEBMBLY,Ignition to choke switch |
| 21 | 0307911 | SCREW |
| 23 | 0383328 | CABLE ASSY., Instrument |
| 29 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277708. |
| 31 | 0385407 | BATTERY TERMINAL KIT This part replaces 0277709. |
| 0383331 | 0383331 | INSTRUMENTS & CABLE ASSEMBLY |
