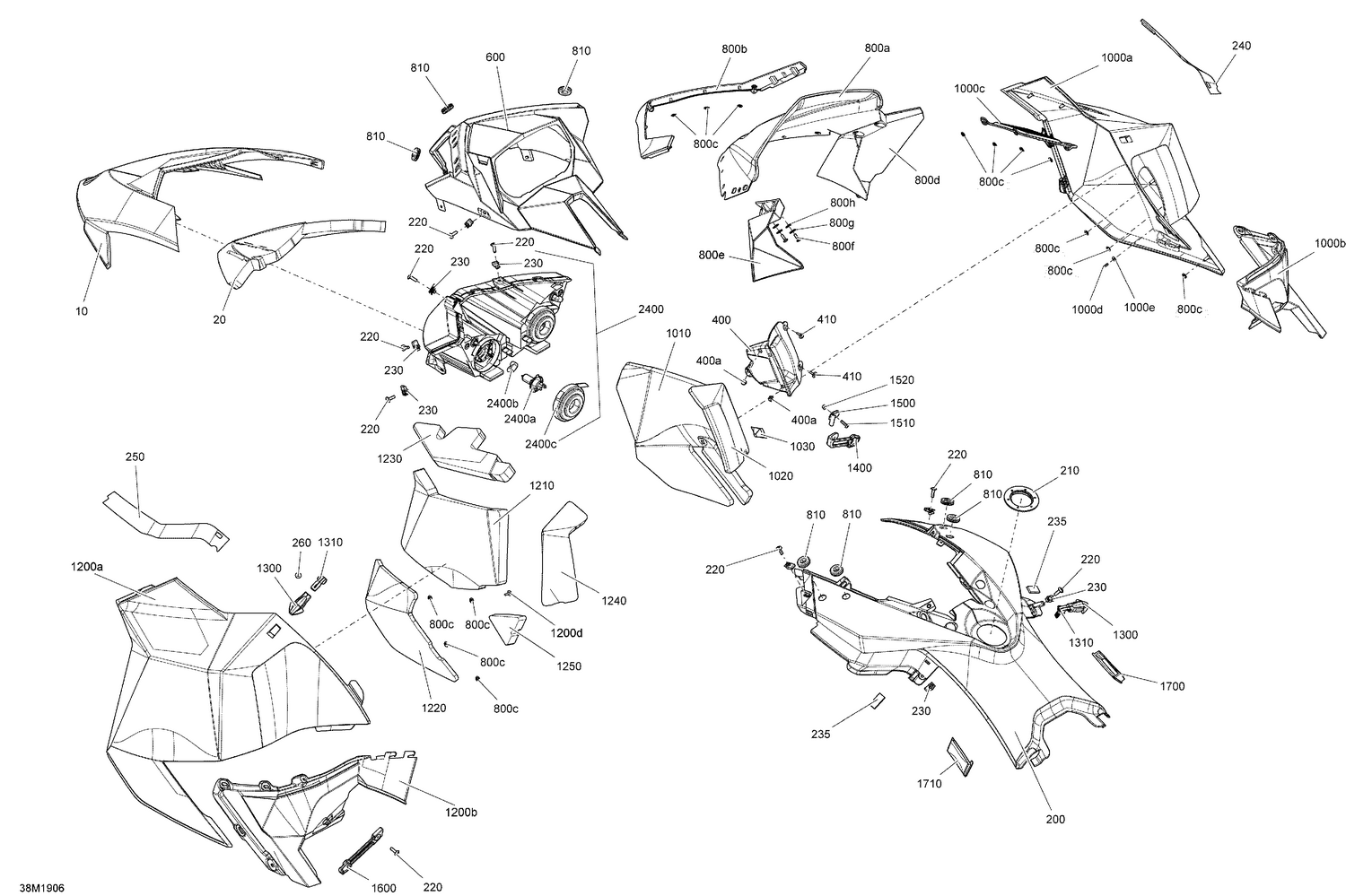

09- Hood 600 CARB
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 517304913 | Hood Foam |
| 210 | 517306602 | Console Nut |
| 220 | 250000705 | Torx Truss Screw M6 X 20 |
| 230 | 250100198 | Panel Nut M6 X 1.0 |
| 260 | 250000721 | Torx Truss Screw M6 X 16 |
| 265 | 250000705 | Torx Truss Screw M6 X 20 |
| 280 | 250100198 | Panel Nut M6 X 1.0 |
| 400a | 275500241 | Black, Cap |
| 410 | 250000725 | Screw M4 X 16 |
| 610 | 250000705 | Torx Truss Screw M6 X 20 |
| 620 | 250100198 | Panel Nut M6 X 1.0 |
| 800b | 517303607 | Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 517303604 | RH Air Deflector |
| 800e | 517303605 | LH Air Deflector |
| 800f | 250000720 | Torx Screw K50 X 16 |
| 800g | 250200025 | Washer M5 |
| 800h | 250200024 | Rubber Washer 5 mm |
| 810 | 517303756 | Grommet |
| 820 | 517303756 | Grommet |
| 1000a | 517304029 | Deep Black, RH Panel |
| 1000b | 517303671 | Deep Black RH Moulding Panel |
| 1000c | 517303622 | Grille |
| 1000d | 241141660 | Hex. Flange Screw K40 X 16 |
| 1000e | 234042600 | Flat Washer 4 mm, Stainless |
| 1010 | 517304883 | RH Center Foam |
| 1020 | 517304884 | RH Panel Rear Foam |
| 1030 | 517305451 | Heat Shield |
| 1200a | 517304030 | Deep Black, LH Panel |
| 1200b | 517303673 | Deep Black, LH Moulding Panel |
| 1200d | 241141660 | Hex. Flange Screw K40 X 16 |
| 1200e | 234042600 | Flat Washer 4 mm, Stainless |
| 1210 | 517304887 | LH Panel Center Foam |
| 1220 | 517304888 | LH Panel Lower Foam |
| 1230 | 517304889 | LH Panel Upper Foam |
| 1240 | 517304890 | LH Panel Rear Foam |
| 1250 | 517304891 | Foam |
| 1300 | 517304075 | End Piece Latch |
| 1310 | 517303981 | Panel Latch |
| 1400 | 517303612 | RH Panel Latch |
| 1500 | 517304221 | Latch Support |
| 1510 | 250000792 | Torx Screw M5 X 20 |
| 1600 | 517303808 | LH Panel Latch |
| 1610 | 250000705 | Torx Truss Screw M6 X 20 |
| 1700 | 513033471 | RH Panel Clip |
| 1710 | 513033472 | LH Panel Clip |
| 2400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400b | 515176498 | Cap |
| 2400c | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 2410 | 250000705 | Torx Truss Screw M6 X 20 |
| 2420 | 250100198 | Panel Nut M6 X 1.0 |
| 2610 | 250000705 | Torx Truss Screw M6 X 20 |
