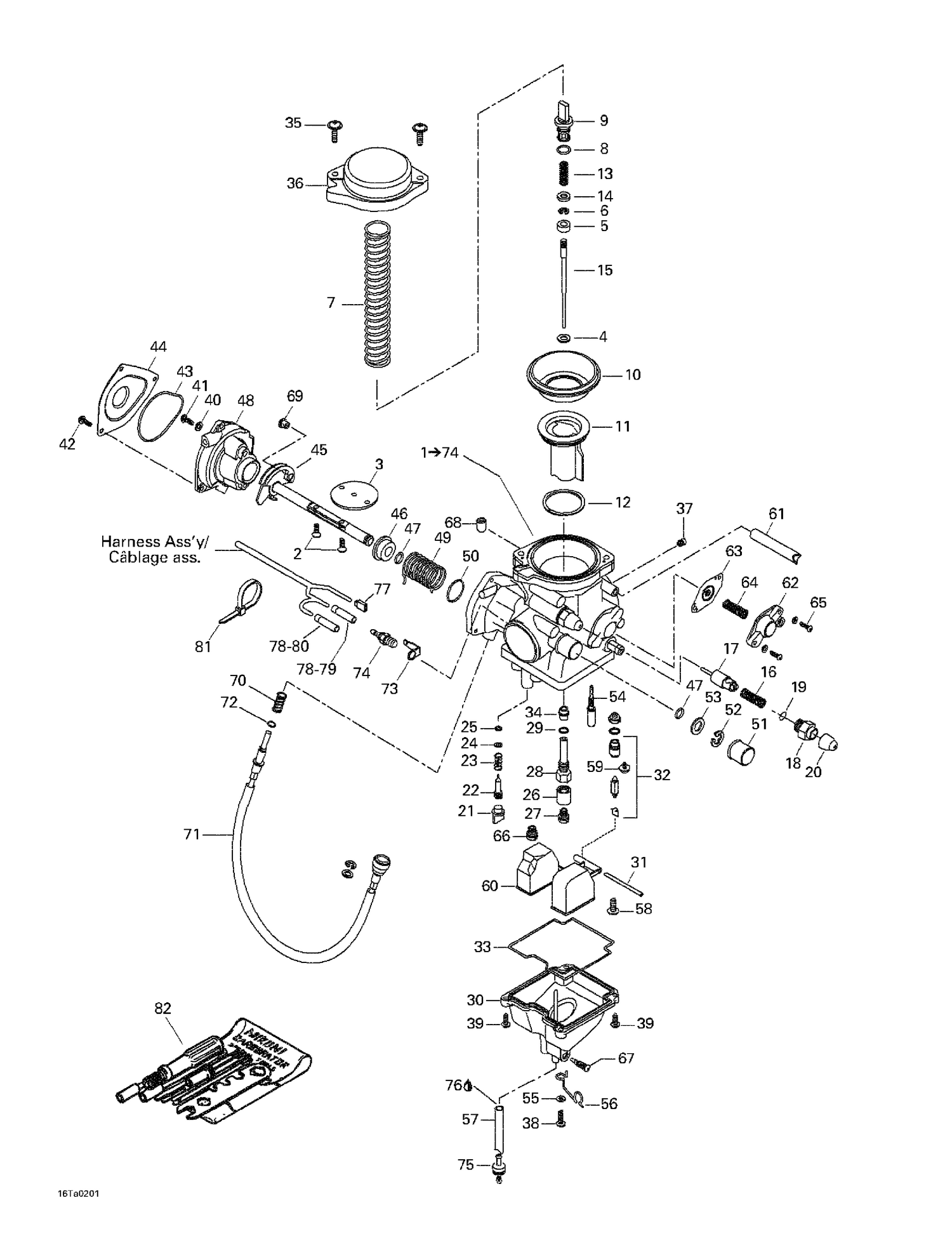

02- Carburetor
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Screw |
| 3 | Not | Available As Spare Part - Valve (Throttle) |
| 4 | 707200064 | WASHER - Call your local BRP dealership |
| 5 | 707200065 | RING - Call your local BRP dealership |
| 6 | 404152200 | E-Ring |
| 7 | 707200066 | Spring |
| 8 | 270500144 | O-RING - Call your local BRP dealership |
| 9 | 707200067 | HOLDER - Call your local BRP dealership |
| 10 | 707200068 | DIAPHRAGM - Call your local BRP dealership |
| 11 | 707200069 | Piston Valve |
| 12 | 707200070 | Ring |
| 13 | 707200071 | SPRING - Call your local BRP dealership |
| 14 | 707200072 | WASHER - Call your local BRP dealership |
| 15 | 707200167 | Needle J8-5Fiy03-52 |
| 16 | 707200144 | SPRING - Call your local BRP dealership |
| 17 | 707200170 | Plunger Ass'y |
| 18 | 707200009 | Holder Guide |
| 19 | 404140200 | O-Ring |
| 20 | 707200010 | CAP - Call your local BRP dealership |
| 21 | 707200004 | CAP - Call your local BRP dealership |
| 22 | 707200077 | ADJUSTER - Call your local BRP dealership |
| 23 | 707200078 | Spring |
| 24 | 707200018 | WASHER - Call your local BRP dealership |
| 25 | 404139900 | O-RING - Call your local BRP dealership |
| 26 | 707200079 | RING - Call your local BRP dealership |
| 27 | 270500251 | MAIN JET 140.0 - Call your local BRP dealership |
| 28 | 707200080 | Jet Holder |
| 29 | 270500119 | O-RING - Call your local BRP dealership |
| 30 | 707200081 | Float Body Ass'y |
| 31 | 404123400 | Pin |
| 32 | 707200082 | Needle Valve 1.0 |
| 33 | 707200083 | O-Ring |
| 34 | 707200084 | Needle Jet |
| 35 | 707200085 | SCREW - Call your local BRP dealership |
| 36 | 707200086 | DIAPHRAGM COVER - Call your local BRP dealership |
| 37 | 707200087 | Pilot Jet 60.0 |
| 38 | 404138700 | Screw |
| 39 | 707200089 | SCREW - Call your local BRP dealership |
| 40 | Not | Available As Spare Part - Washer |
| 41 | Not | Available As Spare Part - Vis |
| 42 | 707200091 | SCREW - Call your local BRP dealership |
| 43 | 707200092 | O-RING - Call your local BRP dealership |
| 44 | 707200093 | COVER - Call your local BRP dealership |
| 45 | Not | Available As Spare Part - Throttle Shaft |
| 46 | Not | Available As Spare Part - Ring |
| 47 | Not | Available As Spare Part - Sealing Ring |
| 48 | Not | Available As Spare Part - Case |
| 49 | Not | Available As Spare Part - Spring |
| 50 | Not | Available As Spare Part - O-Ring |
| 51 | Not | Available As Spare Part - Cap |
| 52 | Not | Available As Spare Part - Ring-E |
| 53 | Not | Available As Spare Part - Packing |
| 54 | 707200168 | Pilot Jet 35.0 |
| 55 | 707200101 | Washer |
| 56 | 707200102 | Clip |
| 57 | 707200041 | Hose |
| 58 | 404138600 | SCREW - Call your local BRP dealership |
| 59 | 404161861 | SCREW - Call your local BRP dealership |
| 60 | 707200103 | FLOAT ASS?Y - Call your local BRP dealership |
| 61 | 707200104 | Hose |
| 62 | 707200105 | Cover Ass’y |
| 63 | 707200106 | DIAPHRAGM ASS?Y - Call your local BRP dealership |
| 64 | 707200160 | Richer Spring |
| 65 | 404901400 | SCREW - Call your local BRP dealership |
| 66 | 707200152 | Main Jet 50.0 |
| 67 | 707200024 | SCREW - Call your local BRP dealership |
| 68 | 404154900 | CAP - Call your local BRP dealership |
| 69 | 707200058 | CABLE GUIDE - Call your local BRP dealership |
| 70 | 404101700 | Spring |
| 71 | 707200146 | ADJUSTER CABLE - Call your local BRP dealership |
| 72 | 707200141 | WASHER - Call your local BRP dealership |
| 73 | 707200164 | TERMINAL - Call your local BRP dealership |
| 74 | 707200163 | HEATER ELEMENT - Call your local BRP dealership |
| 75 | 275500398 | Check Valve |
| 76 | 413708300 | Glue Tube, Loctite 454, 20 G |
| 77 | 409010700 | Female Terminal |
| 78 | 278001009 | Female Terminal |
| 79 | 278000770 | Insulated Sheath |
| 80 | 278001007 | Insulated Sheath |
| 81 | 293750002 | Tie Wrap 142 mm |
