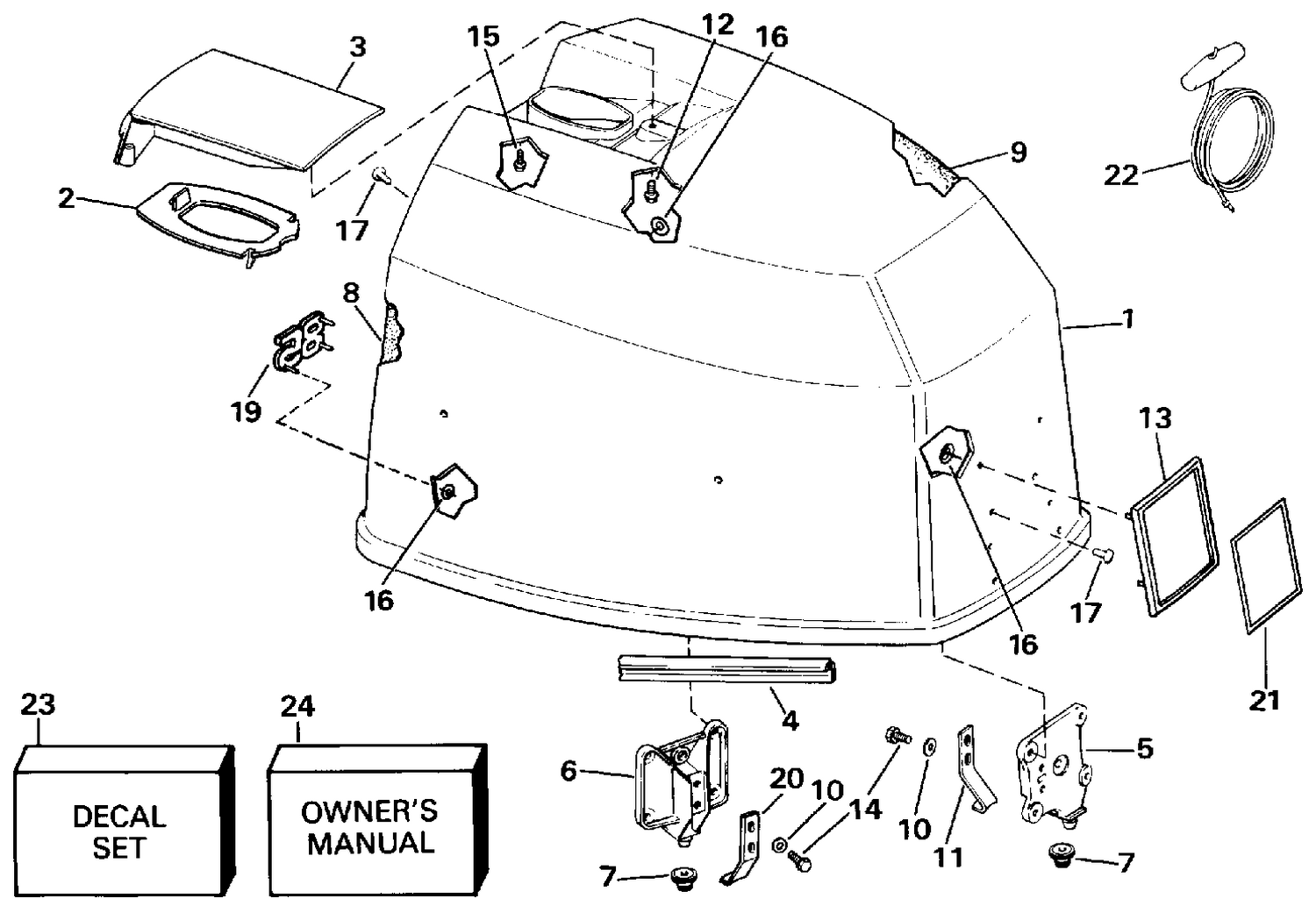

ENGINE COVER - EVINRUDE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0282193 | ENGINE COVER ASSY. |
| 4 | 0329548 | SEAL |
| 5 | 0389971 | LOCATING BARCKET, Front |
| 6 | 0394976 | LOCATING BRACKET, Rear |
| 8 | 0341534 | SOUND BLANKET, Side This part replaces 0208509. |
| 9 | 0208510 | SOUND BLANKET, Top |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0210435 | APPLIQUE, Front This part replaces 0211240. |
| 19 | 0211679 | APPLIQUE, Rear |
| 21 | 0211241 | PLATE, Applique, front, 90/110 models |
| 22 | 0378347 | CORDE DE LANCEUR |
| 23 | 0283783 | DECAL SET |
