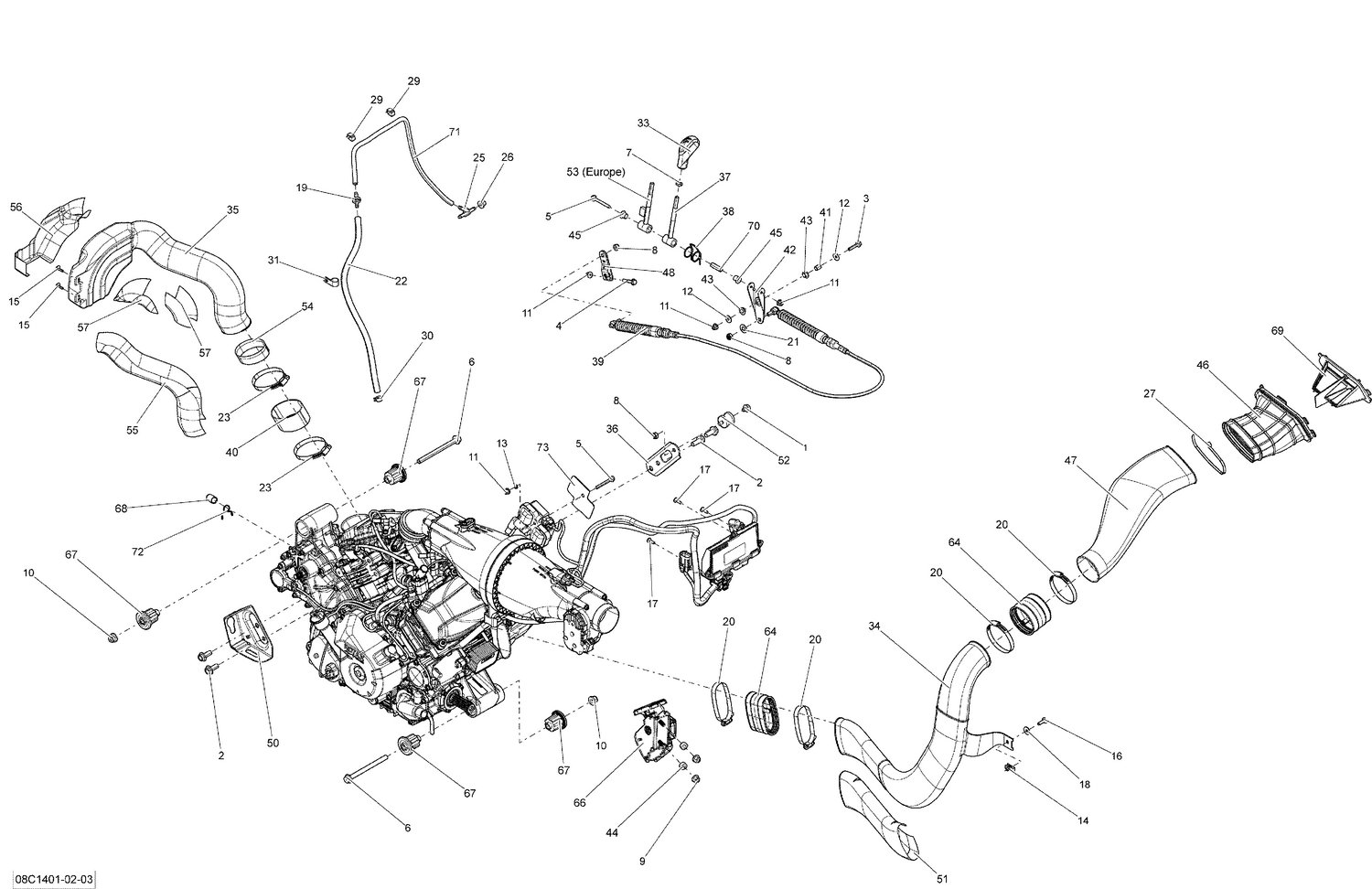

01- Engine
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 |
| 3 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 4 | 207663544 | Hex. Flange Screw M6 X 35 |
| 5 | 207665044 | Hex. Flange Screw M6 X 50 |
| 6 | 230602546 | Hex. Flange Screw M10 X 125 |
| 7 | 232180491 | Hex. Jam Nut M8 |
| 8 | 232581414 | Hex. Elastic Stop Nut M8 |
| 9 | 233081416 | Hex. Flange Nut M8 |
| 10 | 233201436 | Hex. Flange Elastic Nut M10 |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 234062410 | Flat Washer 6 mm |
| 13 | 234461608 | External Serrated Lock Washer 6 mm |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 15 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 16 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 17 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 18 | 250200082 | Flat Washer |
| 19 | 275500398 | Check Valve |
| 20 | 293650091 | Norma Clamp |
| 21 | 234001410 | Flat Washer 10 mm |
| 22 | 219704549 | Hose This part replaces 219704439. |
| 23 | 293650118 | Norma Gear Clamp |
| 25 | 293710059 | Y-Fitting |
| 26 | 293720029 | Grommet |
| 27 | 293750008 | Tie Wrap 368 mm |
| 29 | 414227300 | Clip |
| 30 | 414415200 | Spring Clamp |
| 31 | 518321570 | Open Clamp |
| 33 | 707000284 | Lever Handle |
| 34 | 707000639 | Air Inlet |
| 35 | 707000640 | CVT Air Outlet |
| 36 | 707000707 | Upper Engine Bracket |
| 37 | 707000711 | Upper Lever Arm |
| 38 | 707000750 | Lever Arm Spring |
| 39 | 707000775 | Shifting Cable |
| 40 | 707000789 | Adaptor |
| 41 | 707000801 | Bushing |
| 42 | 707000828 | Lower Lever Arm |
| 43 | 707000847 | Flanged Bushing |
| 44 | 707000848 | Bushing |
| 45 | 707000869 | Flanged Bushing |
| 46 | 707000908 | Adaptor |
| 47 | 707000909 | Primary Air Intake |
| 48 | 707000911 | Lever |
| 50 | 707000919 | Cable Support |
| 51 | 707000924 | Reflective Sheet |
| 52 | 707000949 | Rubber Isolator |
| 53 | XXX | Not Available As Spare Parts |
| 54 | 707000988 | Reflector |
| 55 | 707000989 | Reflective Sheet |
| 56 | 707000990 | Reflective Sheet |
| 57 | 707000991 | Reflective Sheet |
| 64 | 707002585 | Flexibale Adaptor This part replaces 707001043. |
| 66 | 707001166 | Accelerator Pedal |
| 67 | 707001169 | Vibration Damper |
| 68 | 707001185 | Plug |
| 69 | 707001344 | CVT Filter |
| 70 | 707001376 | Bushing |
| 71 | 219704410 | Polyurethane Hose 10000Mm Long |
| 72 | 707800506 | Retainer Clip |
