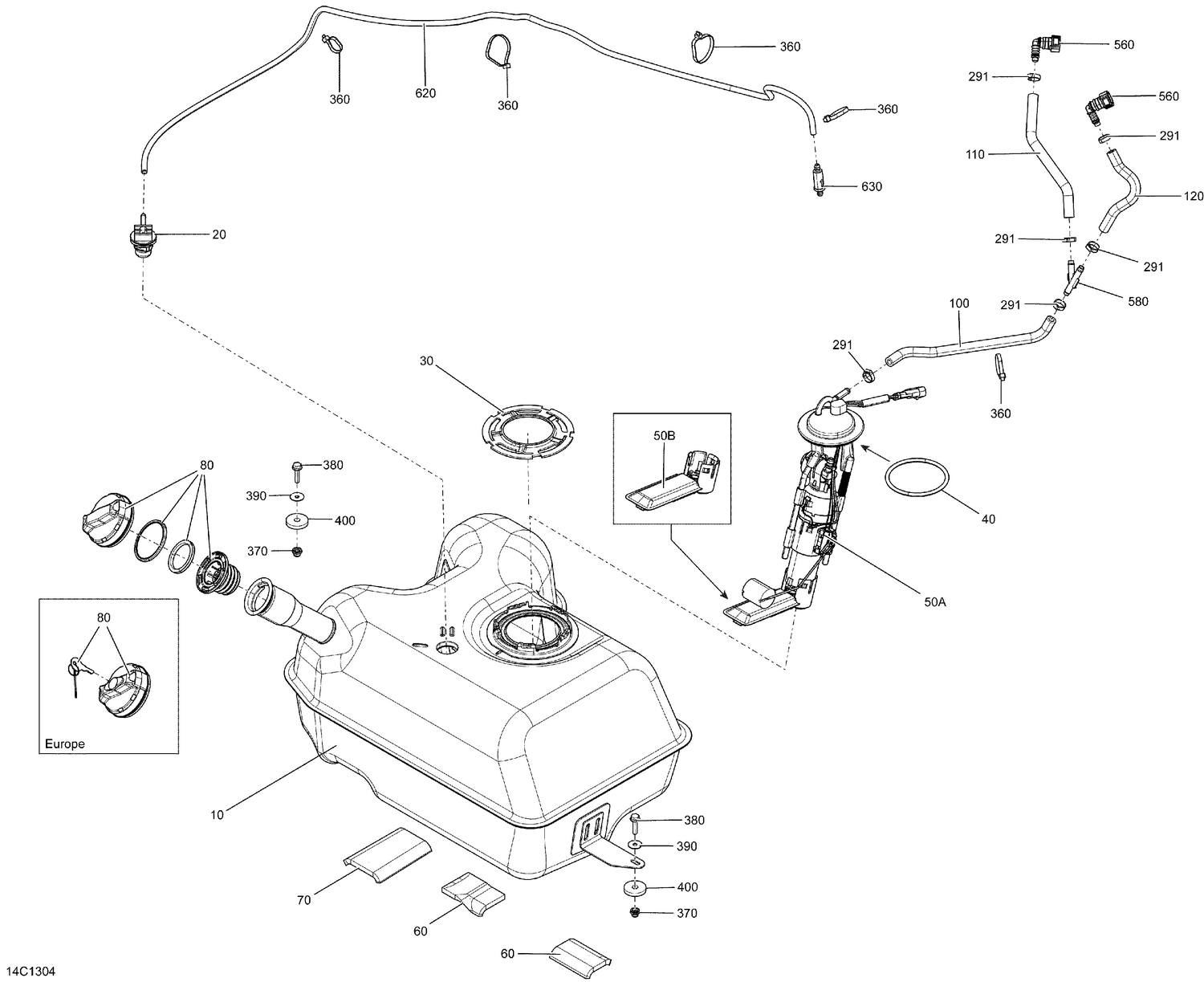

02- Fuel System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709000753 | Fuel Tank This part replaces 709000467. |
| 20 | 709000413 | Rollover Valve This part replaces 709000127. |
| 30 | 709000274 | Ring |
| 40 | 709000275 | O-Ring |
| 50B | 709000389 | Fuel Pre-Filter Kit |
| 60 | 709000288 | Neoprene Pad |
| 70 | 709000289 | NEOPRENE PAD - Call your local BRP dealership |
| 80 | 709000529 | Fuel Cap This part replaces 709000268. |
| 100 | 219704440 | Was 709000163 Fuel Line |
| 110 | 219704440 | Was 709000163 Fuel Line |
| 120 | 219704440 | Was 709000163 Fuel Line |
| 291 | 293650046 | Oetiker Clamp |
| 360 | 414115200 | Tie-Rap 180 mm |
| 370 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 380 | 207662544 | Hex. Flange Screw M6 X 25 |
| 390 | 224060201 | Flat Washer |
| 400 | 293830037 | Rubber Washer |
| 560 | 275500700 | Quick Attach 90° |
| 580 | 293710136 | Y-Fitting, 5/16'' |
| 620 | 219704410 | Polyurethane Hose 10000Mm Long |
