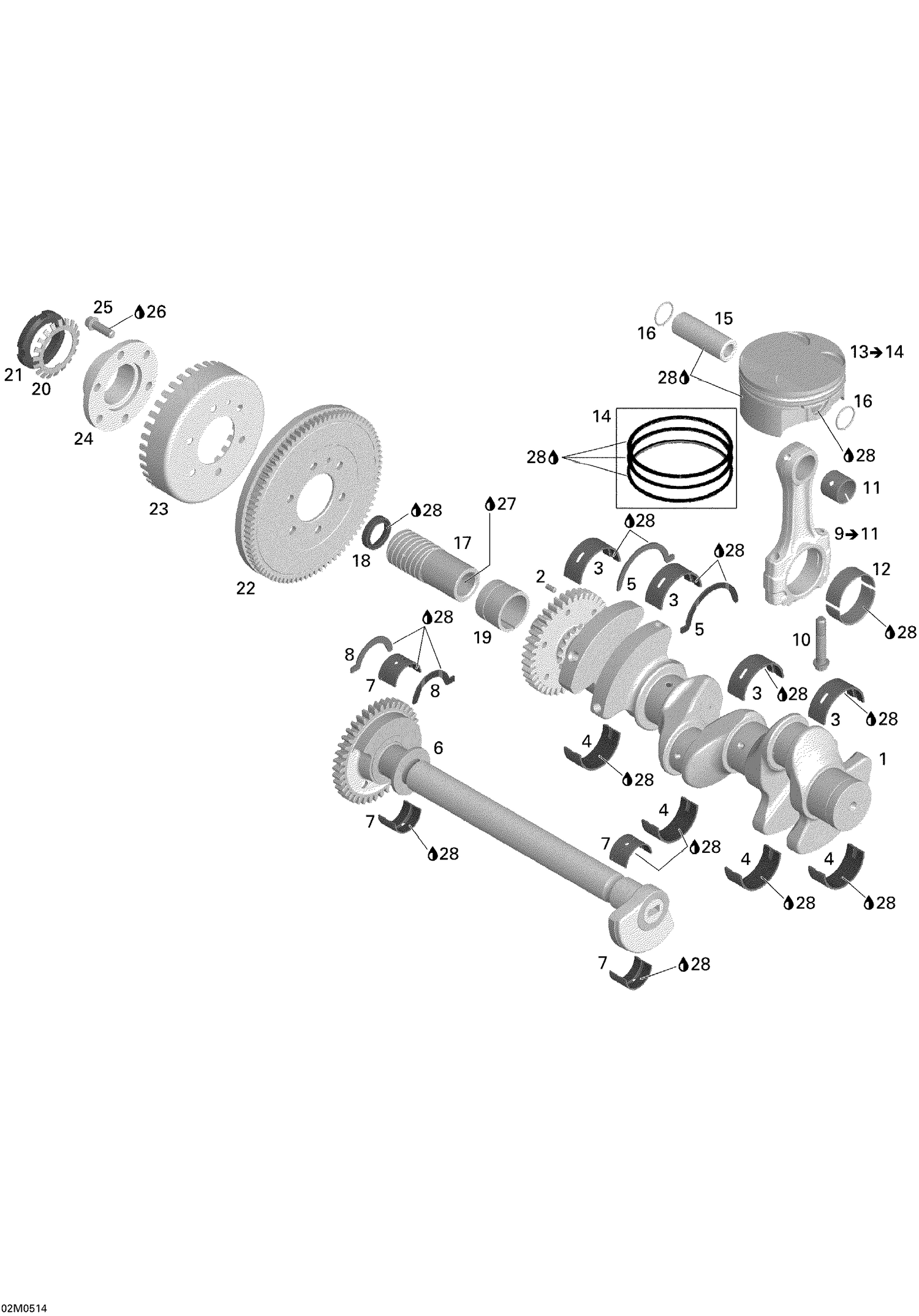

| Ref | Part Number | Description |
|---|
| 1 |
421000670 |
REBUILD-CRANKSHAFT 1503 02 A 05 - Call your local BRP dealership This part replaces 420819079. |
| 2 |
420929650 |
Drive Pin 5 X 10 |
| 3 |
420933456 |
Plain Half-Bearing This part replaces 420933455. |
| 4 |
420933466 |
Plain Half-Bearing This part replaces 420933465. |
| 5 |
420933475 |
Half-Ring |
| 6 |
420837559 |
Balance Shaft Ass'Y This part replaces 420837555. |
| 7 |
420933442 |
Plain Bearing Half This part replaces 420933440. |
| 8 |
420933470 |
Half-Ring |
| 10 |
420640991 |
Connecting rod Screw M10 X 1 This part replaces 420640990. |
| 11 |
420933510 |
Bearing Sleeve |
| 12 |
420933523 |
Half-Bearing This part replaces 420933520. |
| 14 |
420890380 |
Piston Set Ring, Standard This part replaces 420888864. |
| 14 |
420890381 |
Piston Set Ring, Oversize This part replaces 420888865. |
| 15 |
420216250 |
Piston Pin |
| 16 |
420845580 |
Circlip |
| 17 |
420847954 |
Output Sleeve |
| 18 |
420630551 |
Sealing Ring This part replaces 420630550. |
| 20 |
Not |
Available As Spare Part - Gear |
| 21 |
Not |
Available As Spare Part - Ring |
| 22 |
420835163 |
Starter Gear, 86 Teeth This part replaces 420834480. |
| 23 |
420664081 |
PICK UP GEAR, 36 TEETH - Call your local BRP dealership |
| 24 |
420959280 |
COUPLING FLANGE - Call your local BRP dealership |
| 25 |
420440372 |
Torx Flange Screw M8 X 25 |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
