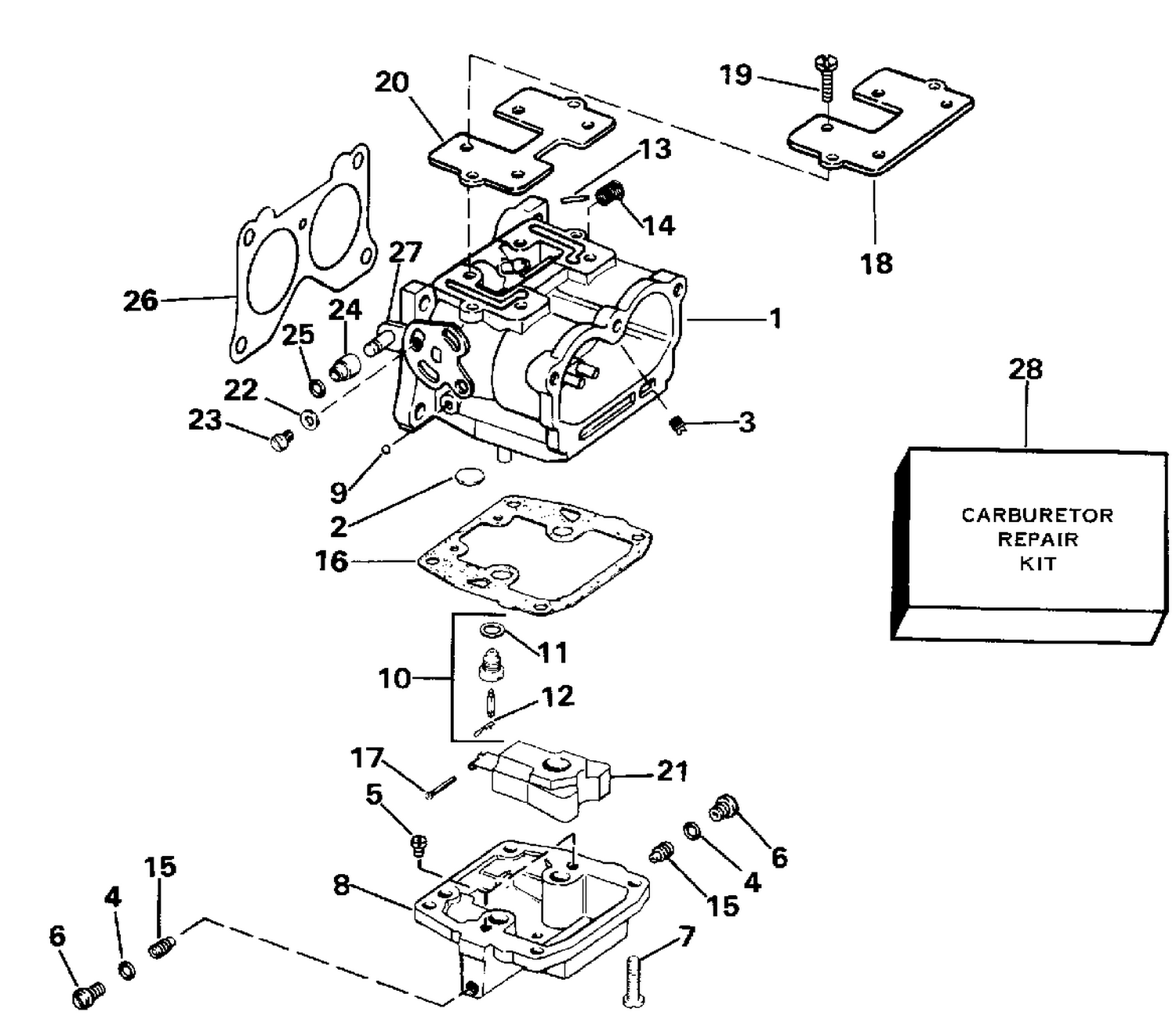

CARBURETOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433808 | CARB. ASSY. |
| 3 | 0322936 | ORIFICE, # 28 |
| 5 | 0333462 | ORIFICE, No. 31C |
| 8 | 0398544 | FLOAT CHAMBER ASSY. |
| 12 | 0336842 | CLIP, SPRING |
| 15 | 0324389 | ORFICIE PLUG 175 only |
| 16 | 0338884 | GASKET, Float bowl This part replaces 0333418. |
| 18 | 0334352 | COVER, Idle channel |
| 19 | 0333750 | SCREW, Cover |
| 20 | 0334353 | GASKET, Cover |
| 21 | 0383437 | FLOAT ASSEMBLY |
| 23 | 0329594 | SCREW, Cam follower |
| 24 | 0432639 | GALET, contre-came |
| 25 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 26 | 0327707 | GASKET, Air silencer |
| 27 | 0432638 | LEVER & PIN |
