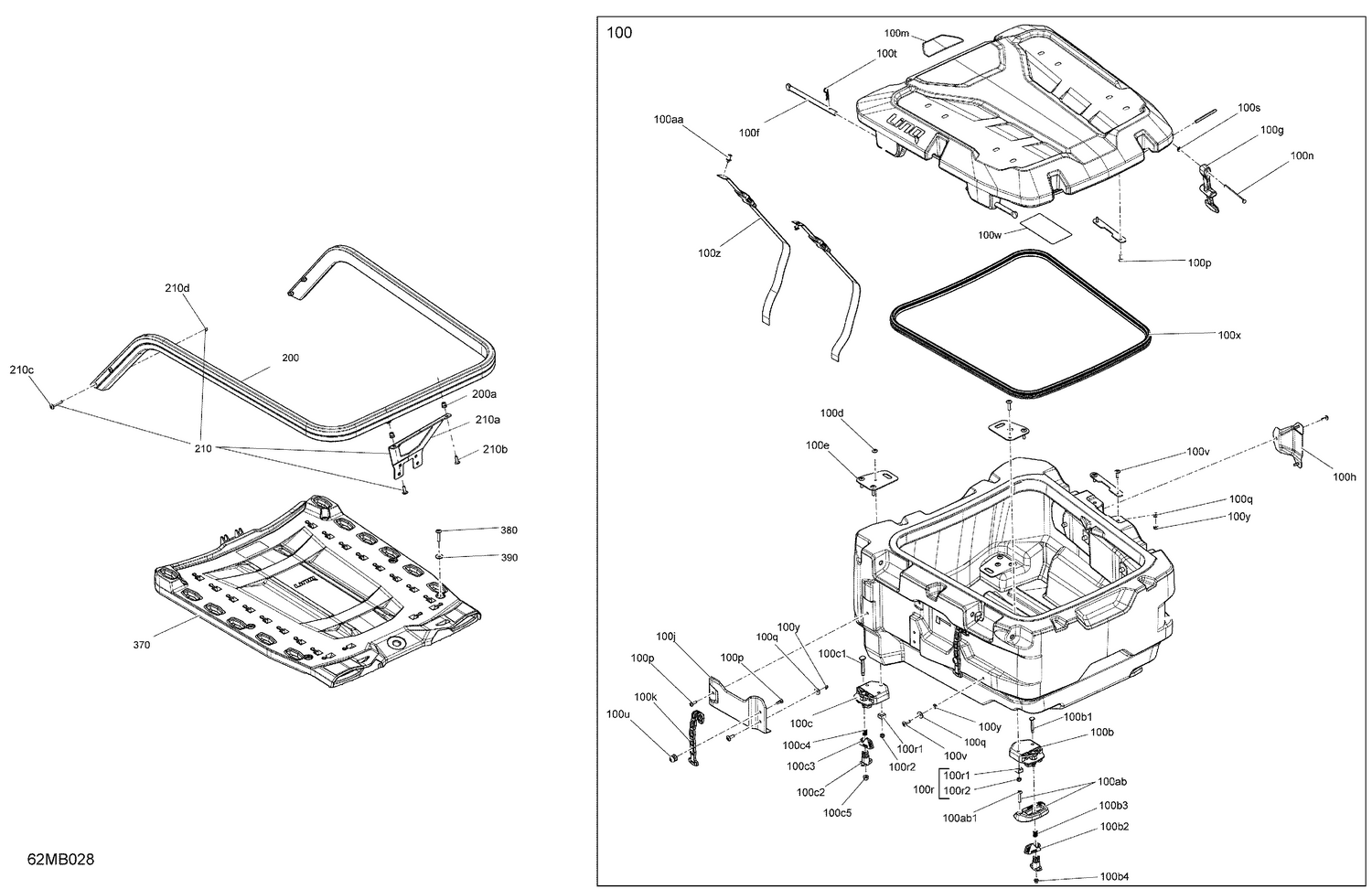

07- Body - Cargo
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 100aa | 293150067 | Rivet |
| 100ab1 | 250000843 | Torx Truss Screw M6 X 30 |
| 100b1 | 511001138 | Rod |
| 100b2 | 708200374 | RH Lever |
| 100b3 | 708200263 | Spring |
| 100b4 | 229000078 | Elastic Flange Nut M5 |
| 100c1 | 511001138 | Rod |
| 100c3 | 708200373 | LH Lever |
| 100c4 | 708200263 | Spring |
| 100c5 | 229000078 | Elastic Flange Nut M5 |
| 100d | 250000758 | Torx Screw M6 X 25 |
| 100e | 520001907 | Plate |
| 100f | 520002066 | Pivot |
| 100g | 520002067 | Lid Latch |
| 100j | 520002075 | Axe Support |
| 100k | 520002076 | Retaining Strap |
| 100m | 520002105 | Warning Label |
| 100n | 520002070 | ROD - Call your local BRP dealership |
| 100p | 250000720 | Torx Screw K50 X 16 |
| 100q | 234062670 | Stainless Steel Flat Washer |
| 100r1 | 269500252 | M6 Nut Housing Ass'y |
| 100r2 | 232561600 | Hex. Elastic Stop Nut M6 |
| 100s | 732610072 | Push Nut |
| 100t | 520002080 | Cotter Hairpin |
| 100u | 511001453 | Retaining Rod |
| 100v | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 100w | 520002102 | Warning Label |
| 100x | 219704433 | Was 520002091 Gasket |
| 100y | 232561494 | Elastic Stop Nut M6 |
| 100z | 520002162 | Retaining Strap |
| 200a | 293450275 | Insert |
| 210a | 511001266 | Rear Support Rack |
| 210b | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 210c | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 210d | 232561434 | Elastic Stop Nut M6 |
| 370 | 511001145 | Multi Purpose Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
