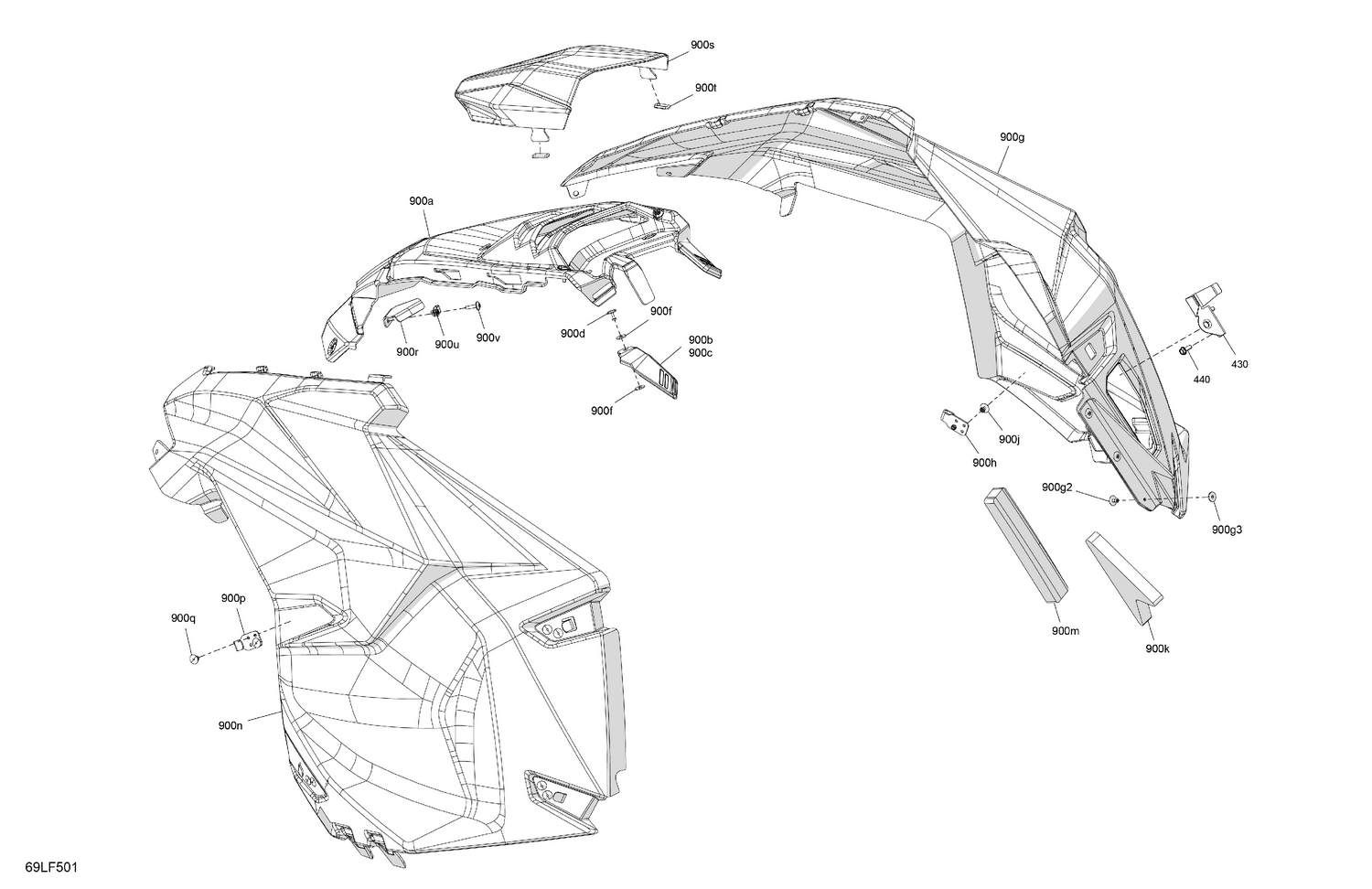

07- Body - Side Panels
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 430 | 517309558 | Rope Guide |
| 440 | 250000936 | Hex. Flanged Screw M6 X 16 |
| 900a | 517309470 | Deep Black, Central Hood |
| 900b | 517309479 | LH Short Latch |
| 900c | 517309478 | RH Short Latch |
| 900d | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 900f | 517124300 | Washer |
| 900g2 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 900g3 | 517124300 | Washer |
| 900h | 517309736 | Latch Base |
| 900j | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 900k | 502008987 | RH Rear Bonded Acoustic Insulation Panel |
| 900m | 502008988 | Front Bonded Acoustic Insulation Panel |
| 900n | 517309723 | Bright White, LH Panel |
| 900p | 517309736 | Latch Base |
| 900q | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 900r | 517309474 | Front Mounting Clamp |
| 900s | 517309477 | Windshield |
| 900t | 517309737 | Locking Ring |
| 900u | 250000958 | Panel Nut M5 X 0.8 |
