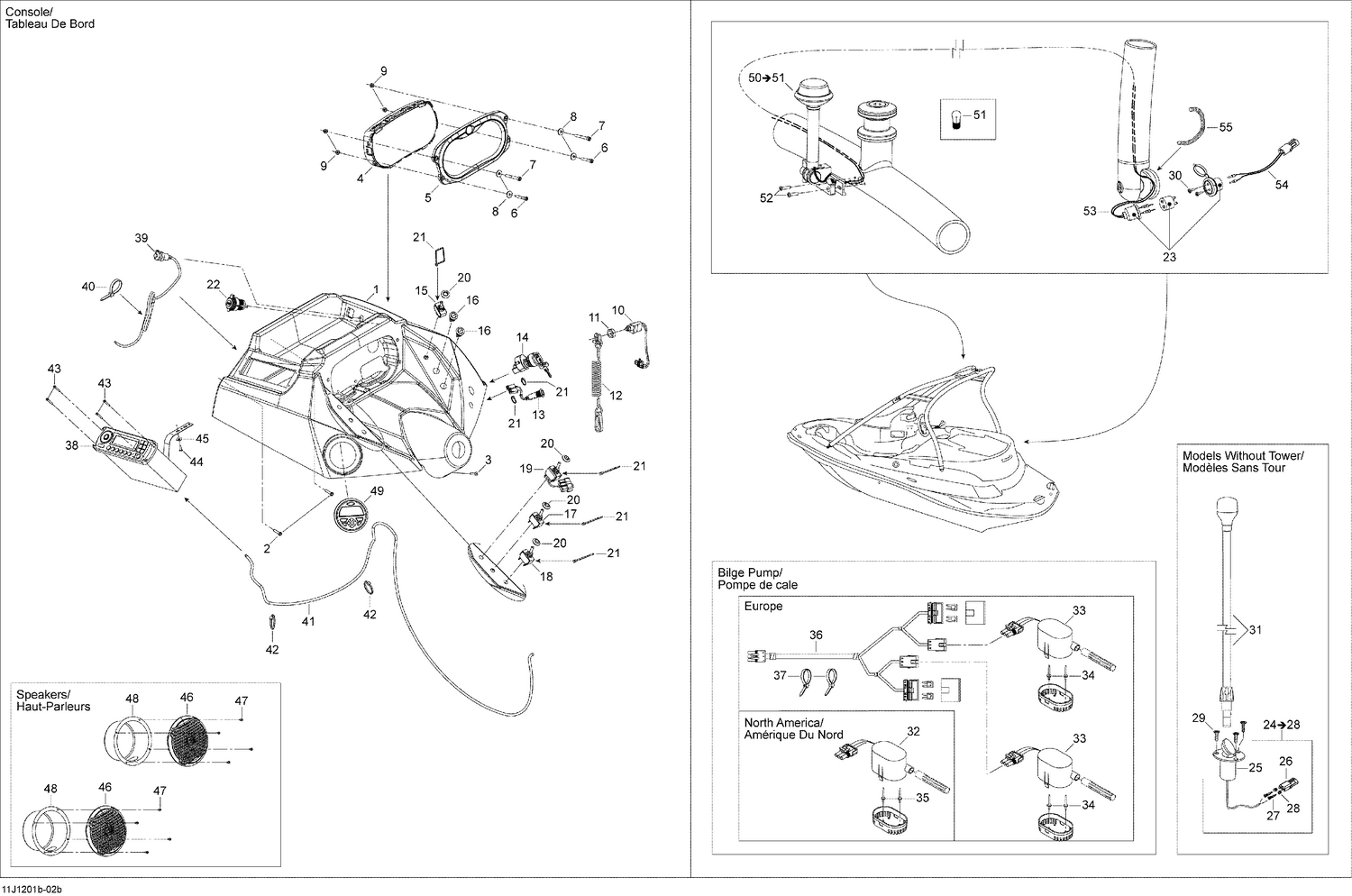

| Ref | Part Number | Description |
|---|
| 1 |
278002665 |
FASCIA - Call your local BRP dealership |
| 2 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 3 |
204100058 |
Phillips Tapping Screw |
| 4 |
204471497 |
INDICATOR GAUGE - Call your local BRP dealership |
| 5 |
278002433 |
GAUGE BEZEL - Call your local BRP dealership This part replaces 278002664. |
| 6 |
205062060 |
Socket Head Screw M6 X 20 |
| 7 |
205065060 |
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
278002421 |
LANYARD SWITCH - Call your local BRP dealership |
| 11 |
278002472 |
FLANGED NUT - Call your local BRP dealership |
| 12 |
278002450 |
SAFETY LANYARD - Call your local BRP dealership |
| 13 |
278002694 |
Start Switch |
| 15 |
278002695 |
SWITCH - Call your local BRP dealership |
| 16 |
278002446 |
Switch |
| 17 |
278002696 |
SWITCH - Call your local BRP dealership |
| 18 |
278002776 |
SWITCH - Call your local BRP dealership |
| 19 |
278002698 |
Switch |
| 20 |
278002416 |
NUT SWITCH - Call your local BRP dealership |
| 21 |
293750059 |
TIE-RAP 203 MM - Call your local BRP dealership |
| 22 |
710001248 |
DC Outlet |
| 33 |
XXX |
Not Available As Spare Parts |
| 34 |
XXX |
Not Available As Spare Parts |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
278002666 |
STEREO - Call your local BRP dealership |
| 40 |
293750027 |
Tie-Rap 206 mm |
| 41 |
204471215 |
STEREO ANTENNA - Call your local BRP dealership |
| 42 |
293750001 |
Tie Wrap 94 mm |
| 43 |
209632560 |
Pan Head Tapping Screw M3.5x25 |
| 44 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 45 |
234052600 |
Flat Washer 5 mm, Stainless |
| 46 |
204471344 |
SPEAKER, SILVER - Call your local BRP dealership |
| 47 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 48 |
204471226 |
Speaker Cover |
| 49 |
278002705 |
REMOTE CONTROL DIGITAL - Call your local BRP dealership |
