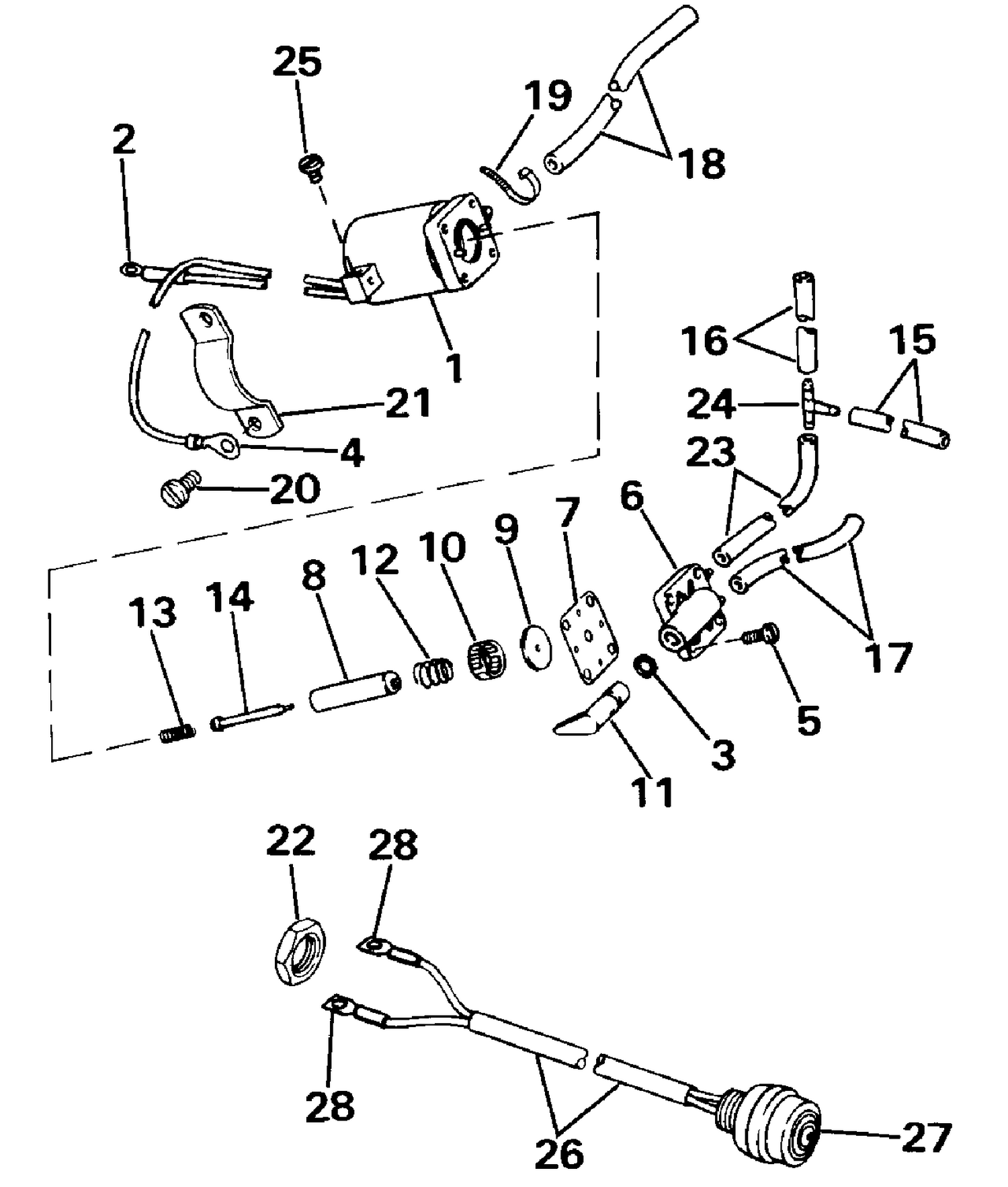

ELECTRIC PRIMER SYSTEM
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0582865. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET This part replaces 0511808. |
| 9 | 0333448 | GASKET This part replaces 0511810. |
| 15 | HOSE, | Tee to middle carb. 127mm (5") |
| 16 | HOSE, | Tee to lower carb. 25mm (1") |
| 17 | HOSE, | Primmer to upper carb. 305mm (12") |
| 18 | HOSE, | Tee to primer 1mm (4-12) |
| 20 | 0319292 | SCREW, Clamp |
| 21 | 0330153 | CLAMP, Water valve |
| 23 | HOSE, | Primer to tee 57mm (2-1/4") |
| 24 | 0325569 | T, amorçage |
| 25 | 0329182 | VIS, borne |
