Home / BRP / JOHNSON / 1978 / 70 / 70EL78C 1978 / EXHAUST HOUSING-20 INCH TRANSOM

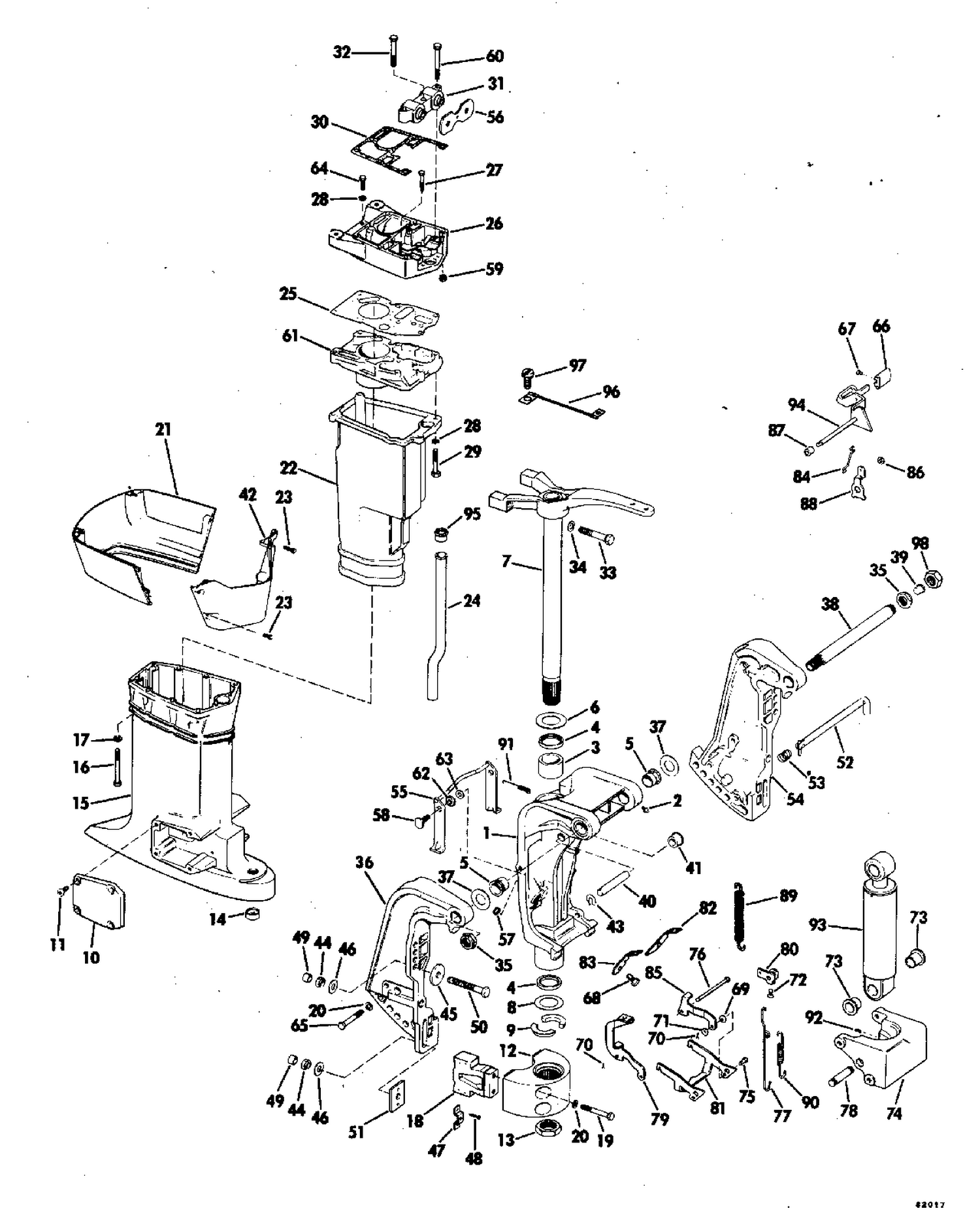

EXHAUST HOUSING-20 INCH TRANSOM

EXHAUST HOUSING-20 INCH TRANSOM

Parts (85)

RefPart NumberDescription
1 0397731 SWIVEL BRACKET This part replaces 0389334.
5 0321035 BRUSHING, Swivel bracket
6 0320866 RONDELLE DE BUTÉE, arbre d'articulation
7 0392517 STEERING ARM ASSEMBLY This part replaces 0388647.
8 0320865 THRUST WASAHER
9 0320942 KEEPER PIVOT SHAFT
10 0321673 COVER, Mount bracket lower
11 0329894 SCREW This part replaces 0302510.
12 0321507 MOUNT BRACKET
13 0320746 CROU, support de montage
15 0321493 EXHAUST HOUSING, Outer
16 0309280 SCREW, Exhaust housing
17 0120255 LOCKWASHER
18 0387796 RUBBER MOUNT, Lower
19 0318612 SCREW, Bracket to cover This part replaces 0321737.
20 0307708 RONDELLE GROWER
21 0340777 COVER, Housing, rear This part replaces 0206006.
22 0319079 EXHAUST HOUSING
24 0319281 WASHER TUBE
25 0331016 GASKET This part replaces 0321796.
26 0322778 ADAPTER, Exhaust housing
27 0329894 SCREW This part replaces 0302510.
30 0313763 GASKET, Adapter
31 0436394 RUBBER MOUNT ASSEMBLY, Upper This part replaces 0387786.
32 0551094 BOLT, Manifold to head
33 0321653 SCREW, Upper mount
34 0313580 WASHER
35 0323599 LOCKNUT This part replaces 0316828.
36 0395844 STEERING BRACKET, ASSY., Stbd. This part replaces 0323145.
38 0335553 TILT TUBE This part replaces 0321052.
40 0320792 PIN
42 0322844 COVER, Exhaust housing, front
43 0321054 SPRING CLIP
44 0363254 NUT, Stern bracket screw This part replaces 0321861.
45 0307238 RONDELLE
46 0320248 RONDELLE, écrou
47 0318273 Bolt hex retainer 1/2 in.
48 0319886 SCREW
49 0318572 Bolt thread protective cap 1/2 in.
50 0318573 SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm)
50 0363011 SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577.
50 0363012 SCREW, Bracket mounting This part replaces 0313327.
51 0318272 Nut backing plate (square) 1/2 in.
52 0436541 ROD Assy, Thrust This part replaces 0387278.
53 0321053 SORUBG,Thrust rod
54 0396309 STERN BRACKET ASSEMBLY, Port This part replaces 0322829.
55 0390442 LOCATING LEVER, Rod This part replaces 0388765.
56 0321935 RETAINING PLATE
58 0329109 SHOULDER SCREW This part replaces 0321389.
59 0315511 NUT, Bracket to mount support
60 0306423 BOLT
61 0321795 PLATE ASSEMBLY
61 0322117 PLATE ASSEMBLY
62 0323144 SPACER
63 0121025 CLIP,Contact retainer
64 0329110 VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358.
65 0318612 SCREW, Bracket to cover This part replaces 0321737.
66 0329012 KNOB Tilt & reverse lock handle This part replaces 0318157.
67 0318238 SCREW
69 0204757 BOW WASHER
70 0302858 GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière
71 0303887 WASHEER, Pin to swivel bracket
72 0319108 SCREW BELCRANK
73 0321246 BUSHING, Shock absorber, lower
74 0329519 SPACER Stern bracket This part replaces 0321553.
75 0321591 PIN, Link to locking
76 0321592 PIN, Link to swivel bracket
77 0321677 ROD, Reverse lock release
78 0321695 PIN, Cylinder, lower
79 0321748 LIN, Reverse lock, starboard
80 0321749 BELCRANK, Releasing rod
81 0321750 LOCKING LEVER, Reverse lock
82 0334345 RETAINER, Lock spring This part replaces 0323593.
83 0334345 RETAINER, Lock spring This part replaces 0323594.
84 0321836 LINK, Lever to tilt handle
85 0321837 LINK, Reverse lock, port
86 0323587 BUSHING
88 0323143 CAM LEVER, Trail lock
89 0321920 SPRING, Reverse lock
90 0322085 SPRING, Trail lock return
92 0322628 SET SCREW, Spacer
93 0387791 SHOCK ABSORBER
94 0390097 LEVER AND AHSFT This part replaces 0387813.
95 0319043 SEAL, Water tube upper
96 0584119 LEAD ASSEMBLY, Ground This part replaces 0388080.
