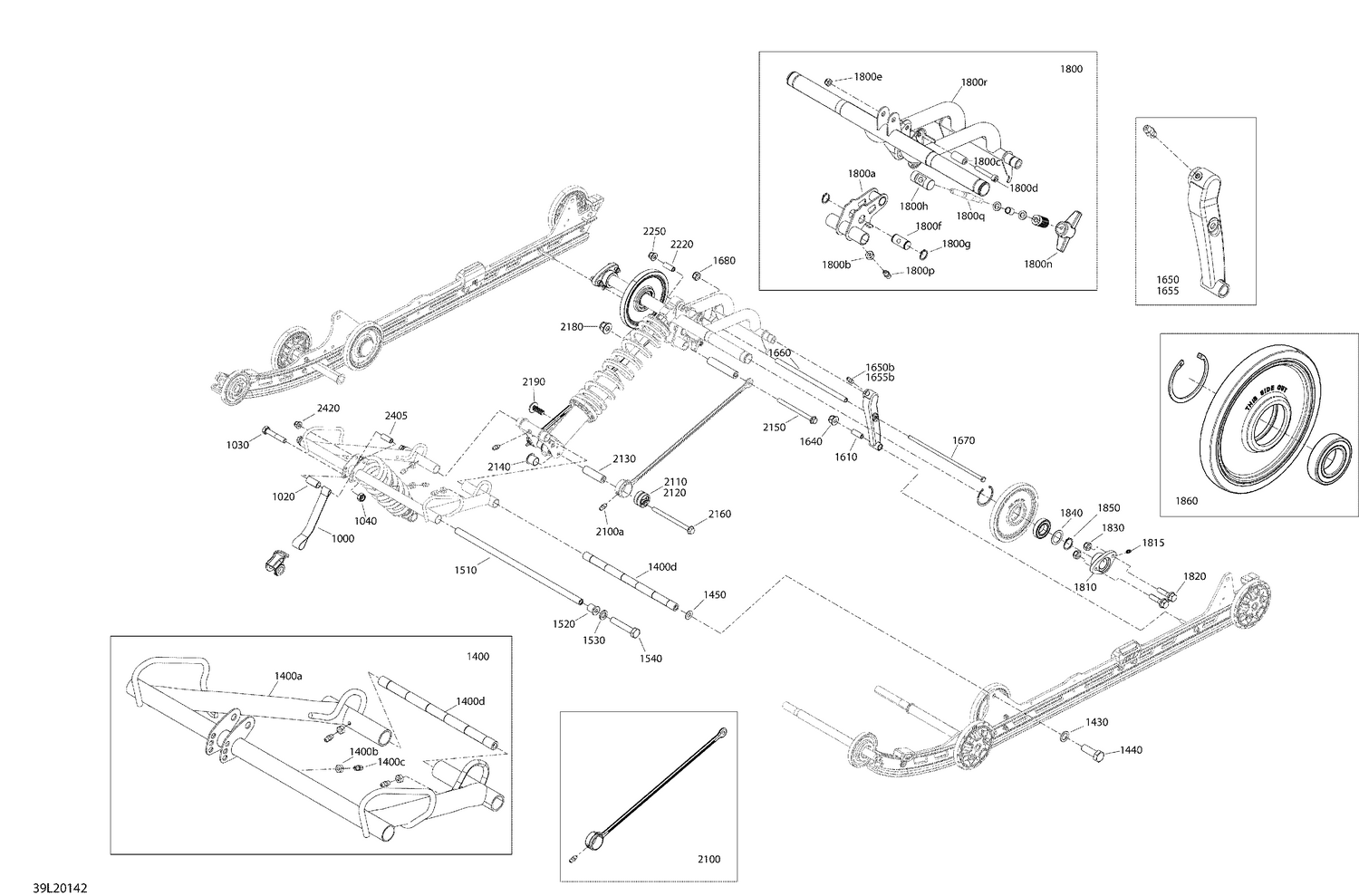

08- Suspension, Rear - Upper Section
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 503195777 | Strap Stopper |
| 1020 | 503195579 | Sleeve |
| 1030 | 207084544 | Hex. Screw M8 X 45 |
| 1040 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1400b | 232061404 | Hexagonal Nut M6 |
| 1400c | 408200700 | Grease Fitting |
| 1400d | 503194641 | Lower Shaft |
| 1430 | 503192491 | Washer |
| 1440 | 250000537 | Hex. Cap Screw M12 X 35 |
| 1450 | 706200281 | Hardened Washer This part replaces 250200086. |
| 1510 | 503191391 | Upper Shaft |
| 1520 | 503189324 | Bushing |
| 1530 | 503189564 | Washer |
| 1540 | 250000605 | Hex. Screw S.GRIP M10 X 55 |
| 1610 | 503194726 | Pivot Arm Axle |
| 1640 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1650b | 408200700 | Grease Fitting |
| 1655b | 408200700 | Grease Fitting |
| 1660 | 503195343 | Spacer |
| 1670 | 503195342 | Bolt M8 |
| 1680 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1800b | 232061404 | Hexagonal Nut M6 |
| 1800c | 503195040 | Sleeve |
| 1800d | 205085044 | Socket Head Screw M8 x 50 |
| 1800e | 232581414 | Hex. Elastic Stop Nut M8 |
| 1800f | 503194622 | Adjuster Nut |
| 1800g | 293370095 | Snap Ring |
| 1800h | 503194623 | Adjuster Guide |
| 1800n | 503195185 | Adjuster Knob |
| 1800p | 408200700 | Grease Fitting |
| 1800q | 503195393 | Adjuster Screw |
| 1800r | 503194978 | Rear Arm |
| 1810 | 503195042 | Cushion |
| 1815 | 408200700 | Grease Fitting |
| 1820 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1830 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1840 | 503195150 | Shim Ring 30X42X1.0 |
| 1850 | 293370143 | Circlip |
| 1860 | 503195041 | Wheel Ass'y 170 MM |
| 2100a | 408200700 | Grease Fitting |
| 2110 | 503195337 | Rod Shaft |
| 2120 | 503194457 | Rod Shaft |
| 2130 | 503195030 | Front Swing Shaft |
| 2140 | 503195184 | Bushing |
| 2150 | 230603044 | Hex. Flanged Screw DIN.6921 |
| 2160 | 230604044 | Hex. Flanged Screw M10 X 140 |
| 2180 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 2190 | 250000936 | Hex. Flanged Screw M6 X 16 |
| 2220 | 5446652 | Bushing |
| 2250 | 232500416 | Elastic Stop Nut M10 |
| 2405 | 5446652 | Bushing |
