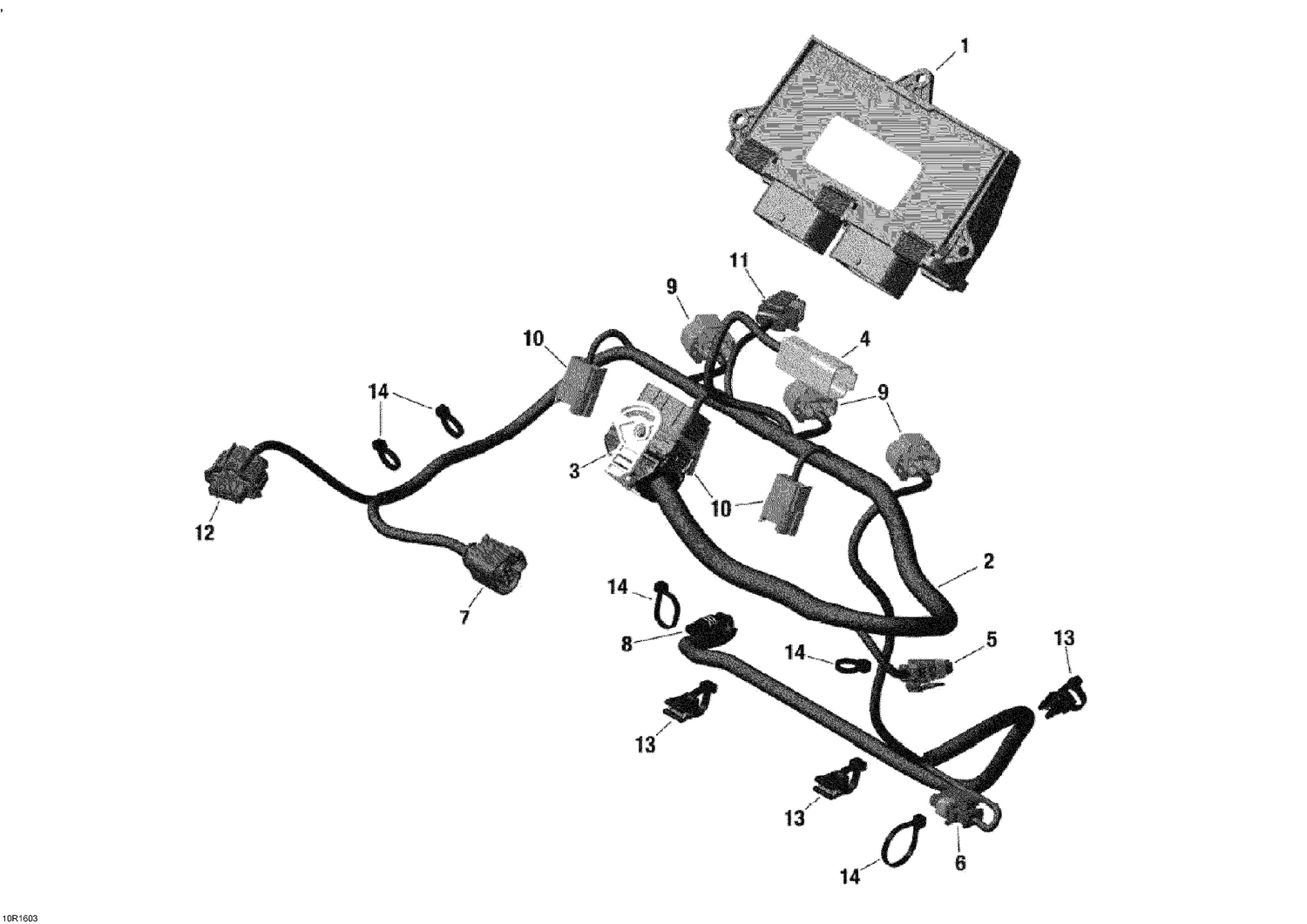

10- Engine Harness And Electronic Module - 900 ACE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666935 | Electronic Box This part replaces 420666194. |
| 2 | 420264420 | Wiring Harness Ass'y |
| 3 | Not | Available As Spare Part - Connector Housing |
| 4 | 278000635 | Connector HIC |
| 5 | 278001005 | Connector CPS |
| 6 | 278001005 | Connector CTS |
| 7 | 515177406 | Connector ETC |
| 8 | 278001012 | Connector OPS |
| 9 | Not | Available As Spare Part - Connector COIL 1-3 |
| 10 | Not | Available As Spare Part - Connector INJ. 1-3 |
| 11 | Not | Available As Spare Part - Connector CAPS |
| 12 | 515176410 | Male Connector |
| 13 | 420951650 | Cable Clamp |
