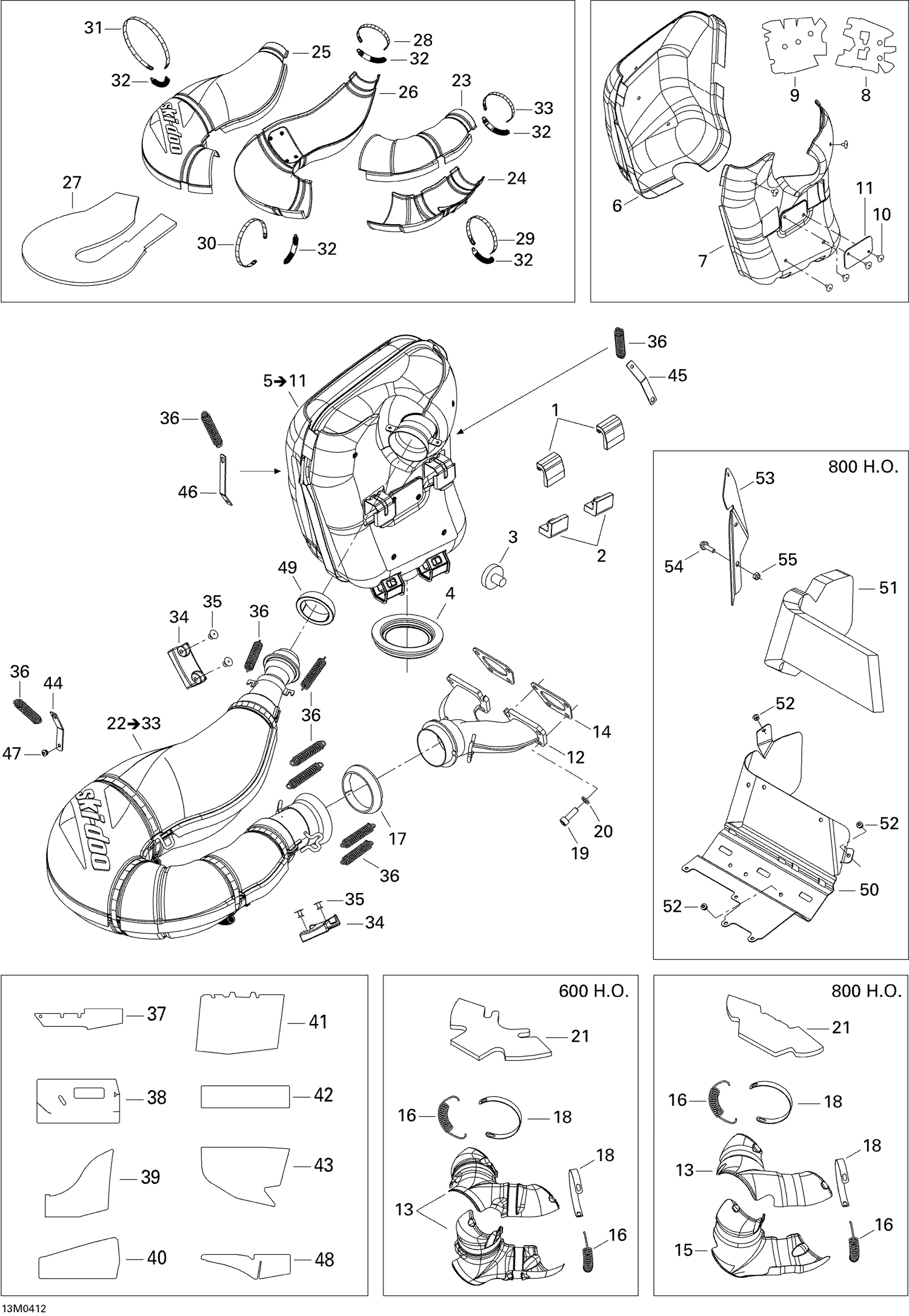

01- Exhaust System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053372 | UPPER STOPPER - Call your local BRP dealership |
| 2 | 514053373 | Lower Stopper |
| 3 | 514053654 | Rubber Bumper |
| 4 | 514053394 | Exhaust Grommet |
| 6 | 514053563 | RH Heat Shield |
| 7 | 514053585 | LH Heat Shield |
| 8 | 514053590 | LH INSULATING WOOL - Call your local BRP dealership |
| 9 | 514053589 | RH INSULATING WOOL - Call your local BRP dealership |
| 10 | 390910000 | Pop Rivet 3/16” |
| 11 | 514053429 | Reinforcement |
| 16 | 514053643 | Spring |
| 17 | 514053487 | Exhaust Gasket |
| 18 | 514053603 | RETAINING STRAP - Call your local BRP dealership |
| 19 | 205062044 | Socket Head Screw M6 X 20 |
| 20 | 234161471 | Lock Washer M6, Black |
| 23 | 514053609 | Upper Front Half Envelope |
| 24 | 514053610 | Lower Front Half Envelope |
| 25 | 514053612 | UPPER REAR HALF ENVELOPE - Call your local BRP dealership |
| 26 | 514053613 | LOWER REAR HALF ENVELOPE - Call your local BRP dealership |
| 27 | 514053584 | INSULATING WOOL - Call your local BRP dealership |
| 28 | 514053437 | RETAINING STRAP - Call your local BRP dealership |
| 29 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 30 | 514053534 | RETAINING STRAP - Call your local BRP dealership |
| 31 | 514053535 | RETAINING STRAP - Call your local BRP dealership |
| 32 | 514053643 | Spring |
| 33 | 514053536 | Retaining Strap |
| 34 | 514053352 | BUMPER - Call your local BRP dealership |
| 35 | 293150103 | Pop Rivet 3/16" |
| 36 | 415107100 | Spring |
| 37 | 514053560 | REFLECTIVE SHEET - Call your local BRP dealership |
| 38 | 514053912 | Reflective Sheet |
| 39 | 514053913 | Reflective Sheet |
| 40 | 514053914 | Reflective Sheet |
| 41 | 514053561 | Reflective Sheet |
| 42 | 514053392 | Reflective Sheet |
| 43 | 514053562 | REFLECTIVE SHEET - Call your local BRP dealership |
| 44 | 514049700 | SPRING BRACKET - Call your local BRP dealership |
| 45 | 514053725 | SPRING BRACKET - Call your local BRP dealership |
| 46 | 514053393 | Spring Bracket |
| 47 | 390402200 | Pop Rivet 3/16" |
| 48 | 514053673 | REFLECTIVE SHEET - Call your local BRP dealership |
| 49 | 514053812 | Exhaust Gasket |
