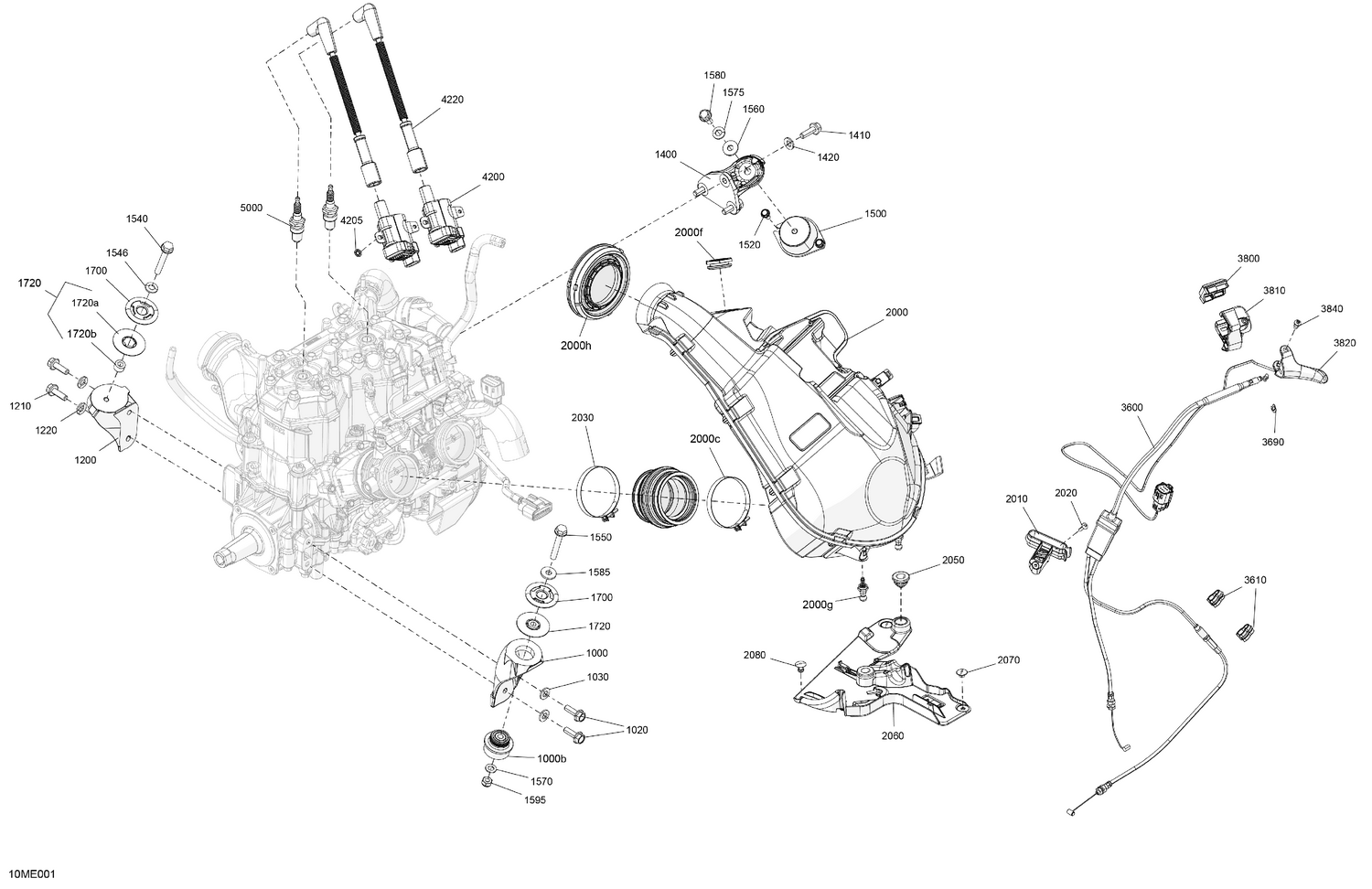

02- Engine - System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1000b | 512061516 | Vibration Damper |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061025 | Front PTO Support |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061027 | MAG Support |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061514 | Rubber Mount |
| 1520 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1540 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1546 | 250200146 | Conical Spring Washer M8 |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 250200146 | Conical Spring Washer M8 |
| 1580 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 1720a | XXX | Not Available As Spare Parts |
| 1720b | 512061198 | Spacer |
| 2000c | 293650212 | GEMI Clamp |
| 2000f | 512061083 | Rubber |
| 2000g | 420441840 | Screw |
| 2000h | 508000805 | Boot |
| 2010 | 512061325 | Cable Guide |
| 2020 | 250000759 | Torx Truss Pt K40 X 16 |
| 2030 | 293650212 | GEMI Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061627 | Primary Chamber Support |
| 2070 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 2080 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3600 | 512061442 | Throttle Cable |
| 3610 | 512061521 | Throttle Cable Holder |
| 3690 | 414274500 | Circlip |
| 3800 | 512060859 | Upper Housing |
| 3810 | 512060860 | Lower Housing |
| 3820 | 512061533 | Heated Hand Lever Accelerator |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061358 | Ignition Coil |
| 4205 | 389804300 | Push Nut |
| 4220 | 512061631 | Spark Plug Cable Ass'y |
