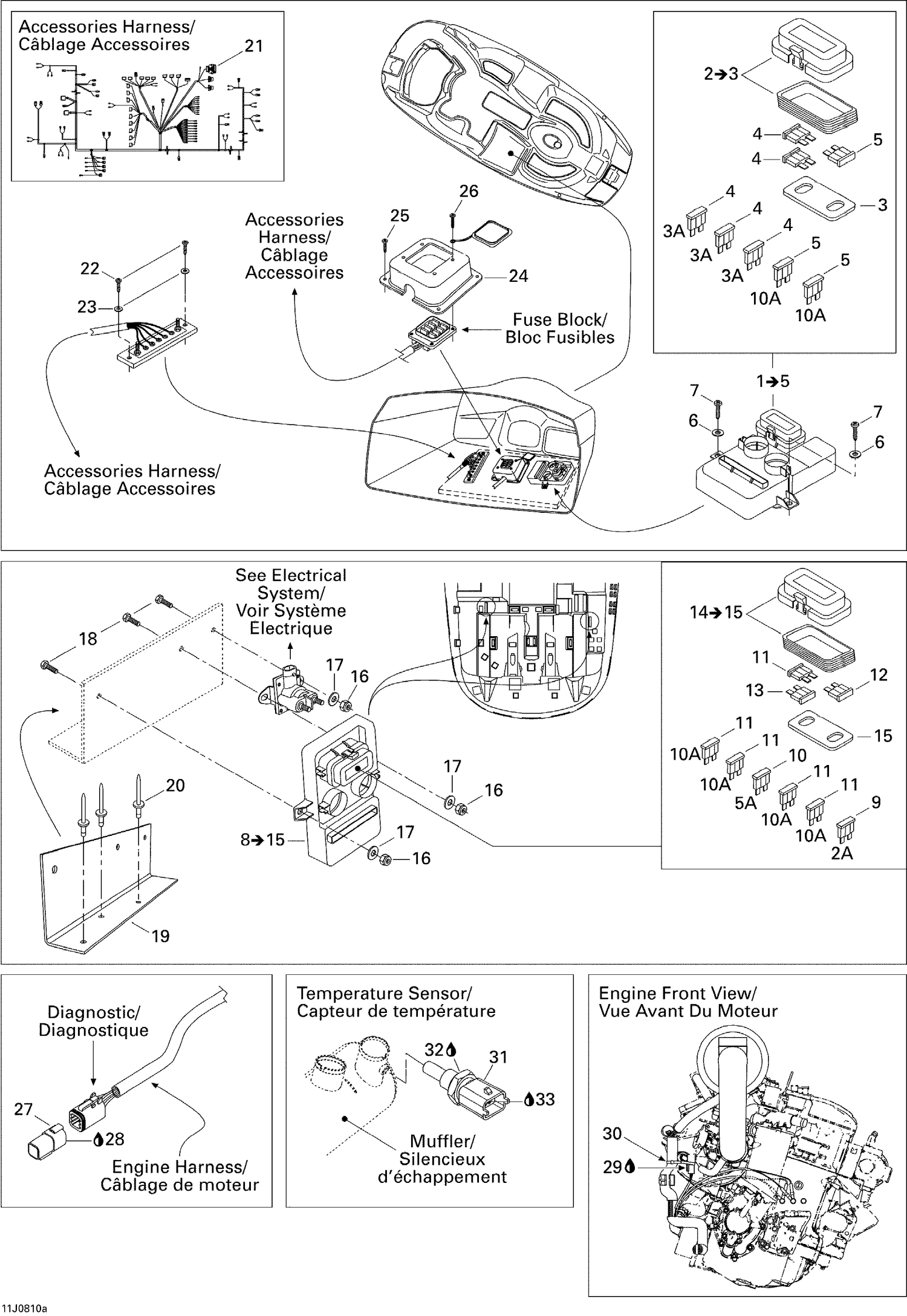

| Ref | Part Number | Description |
|---|
| 3 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 4 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 5 |
278001197 |
Fuse, 10 Amperes |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
204100203 |
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership |
| 9 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 10 |
278000344 |
Fuse, 5 Amperes |
| 11 |
278001197 |
Fuse, 10 Amperes |
| 12 |
409003900 |
Fuse, 20 Amperes |
| 13 |
410917200 |
Fuse, 30 Amperes |
| 15 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 16 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 17 |
234062600 |
Flat Washer M6, Stainless |
| 18 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 19 |
204471071 |
BRACKET - Call your local BRP dealership |
| 20 |
293150037 |
Avdel Rivet 3/16" |
| 21 |
204471234 |
Accessories Harness |
| 22 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 23 |
234041600 |
Flat Washer 4 mm, Stainless |
| 24 |
204471274 |
FUSE BLOCK SUPPORT - Call your local BRP dealership |
| 25 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 26 |
204100220 |
Pan Head Screw 10-32 X 1/2" |
| 27 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 28 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 29 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 31 |
278002895 |
Temperature Sensor This part replaces 278001016. |
