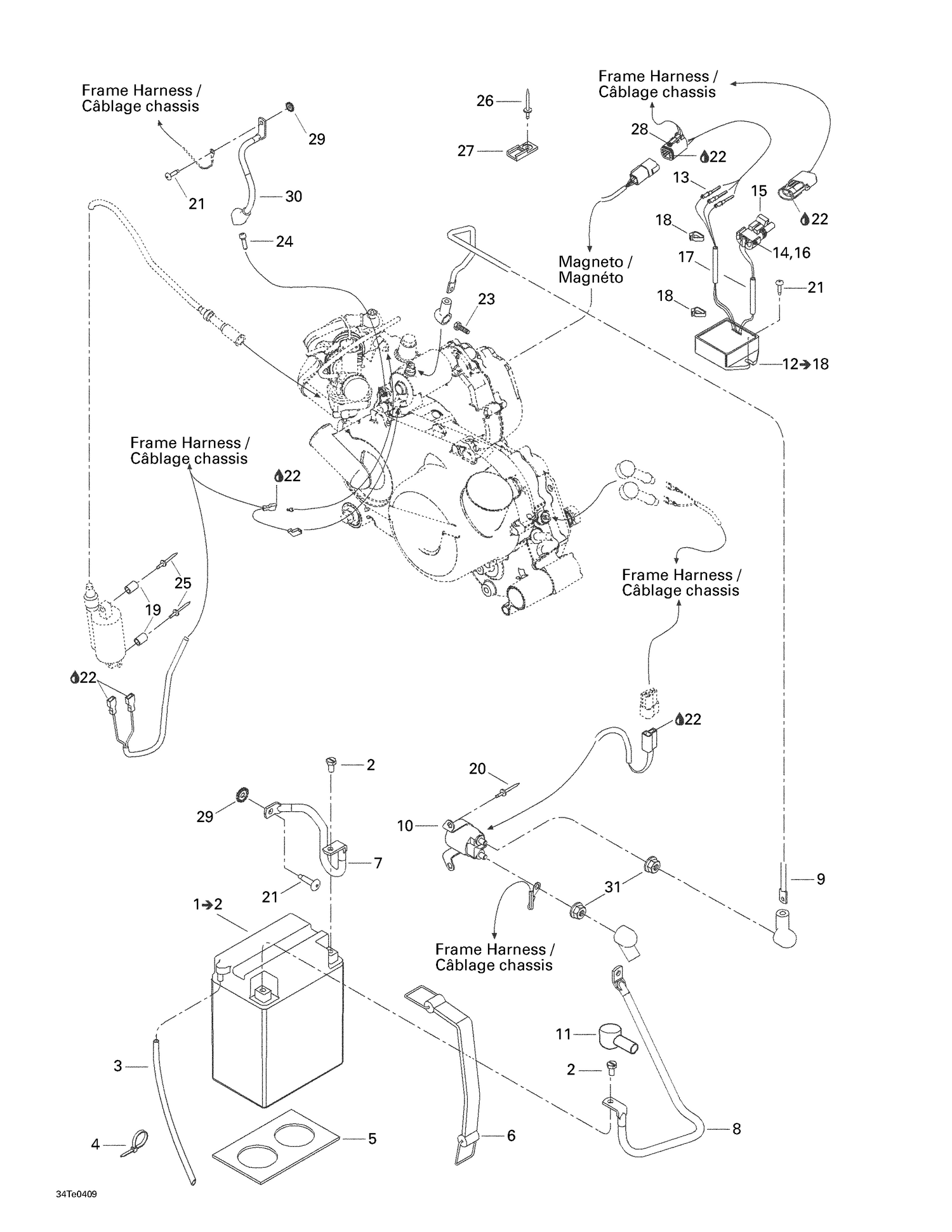

| Ref | Part Number | Description |
|---|
| 2 |
703500179 |
Battery Fastener Kit |
| 3 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 4 |
414115200 |
Tie-Rap 180 mm |
| 5 |
710000241 |
RUBBER PROTECTOR - Call your local BRP dealership |
| 6 |
515176044 |
Battery Strap |
| 7 |
Not |
Available As Spare Part - Ground Cable |
| 8 |
Not |
Available As Spare Part - Positive Cable |
| 9 |
710000232 |
POSITIVE CABLE - Call your local BRP dealership |
| 10 |
515176011 |
Starter Relay |
| 11 |
710000319 |
Protector Cap |
| 13 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 14 |
409007300 |
Female Terminal |
| 15 |
278000220 |
Male Connector, 2 Circuits |
| 16 |
278000218 |
Wire Seal |
| 17 |
409901300 |
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership |
| 18 |
293750001 |
Tie Wrap 94 mm |
| 19 |
293900046 |
Spacer |
| 20 |
390406500 |
Pop Rivet 3/16" |
| 21 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 22 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 23 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 24 |
205062044 |
Socket Head Screw M6 X 20 |
| 25 |
293150093 |
Pop Rivet 3/16” |
| 26 |
390402200 |
Pop Rivet 3/16" |
| 27 |
270000141 |
Clip |
| 28 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 29 |
234461608 |
External Serrated Lock Washer 6 mm |
| 30 |
710000461 |
Ground Cable |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
