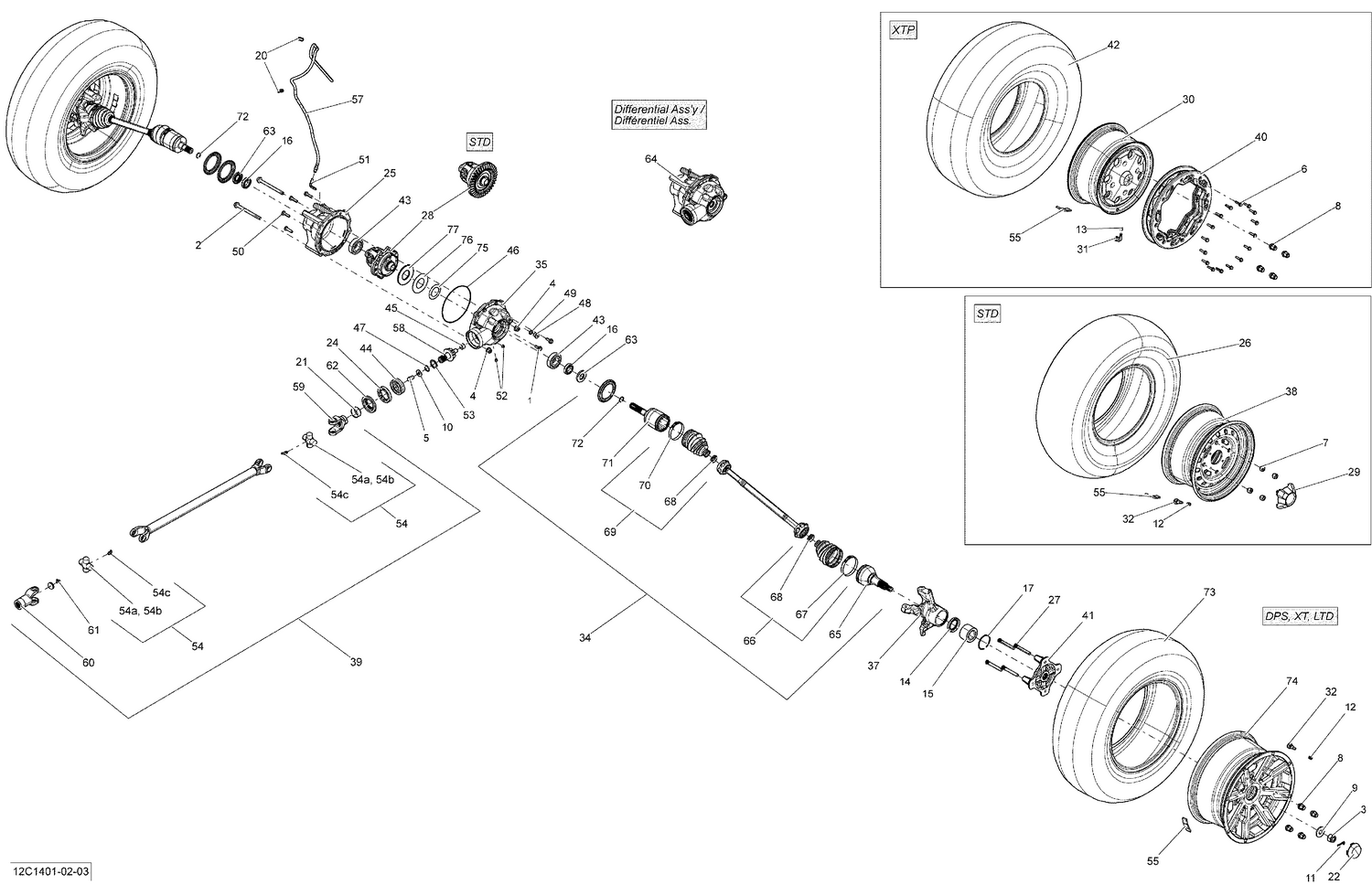

| Ref | Part Number | Description |
|---|
| 1 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 3 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 4 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 5 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
250100185 |
Chrome Wheel Nut M10 X 1.25 This part replaces 250100082. |
| 9 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 10 |
250200102 |
Flat Washer M12 |
| 11 |
250400036 |
Cotter Pin |
| 12 |
293000110 |
Valve Cap |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
293250246 |
O-Ring |
| 15 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 16 |
293350044 |
Ball Bearing |
| 17 |
293370019 |
Circlip |
| 20 |
293750002 |
Tie Wrap 142 mm |
| 21 |
705400036 |
Wear Ring |
| 22 |
705400520 |
WHEEL CAP - Call your local BRP dealership |
| 24 |
705401603 |
Nut This part replaces 705400661. |
| 25 |
705400762 |
FRONT COVER - Call your local BRP dealership |
| 26 |
XXX |
Not Available As Spare Parts |
| 27 |
705401964 |
Wheel Stud This part replaces 705400791. |
| 28 |
703500872 |
DIFFERENTIAL KIT - Call your local BRP dealership This part replaces 705400822. |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
705400193 |
Rim Valve With Cap |
| 34 |
705401871 |
LH Front - Premium CV Axle This part replaces 705401105. |
| 34 |
705401872 |
RH Front - Premium CV Axle This part replaces 705401106. |
| 35 |
705401136 |
FRONT COVER - Call your local BRP dealership |
| 37 |
705401548 |
LH Front Knuckle |
| 37 |
705401549 |
RH Front Knuckle |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
705402066 |
Axle Drive Ass'y This part replaces 705401239. |
| 40 |
XXX |
Not Available As Spare Parts |
| 41 |
705401314 |
Wheel Hub |
| 42 |
XXX |
Not Available As Spare Parts |
| 43 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 44 |
705500260 |
Ball Bearing |
| 45 |
705500261 |
Needle Bearing |
| 46 |
705500265 |
Seal |
| 47 |
705500267 |
O-Ring |
| 48 |
705500504 |
Fill Level Plug |
| 49 |
705500506 |
Copper Washer |
| 50 |
705401601 |
Screw This part replaces 705500892. |
| 51 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 52 |
705500894 |
Drain Plug |
| 53 |
705501162 |
Pinion Gear Shim |
| 54 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 54a |
715900183 |
U-Joint |
| 54b |
715900117 |
SNAP RING - Call your local BRP dealership |
| 54c |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 57 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 58 |
705501588 |
Engrenage 10 Dents - Appelez votre concessionnaire BRP local |
| 59 |
715900116 |
Fixed Yoke Joint This part replaces 715900232. |
| 61 |
703500815 |
Grease Fitting |
| 62 |
705401481 |
Oil Seal |
| 63 |
705401618 |
Gasket This part replaces 705401486. |
| 64 |
703500908 |
Front Differential This part replaces 705401488. |
| 65 |
705401353 |
JOINT_CV EXT - Call your local BRP dealership |
| 66 |
705401354 |
Boot Kit, Wheel Side |
| 67 |
715900260 |
Oetiker Clamp, Large |
| 68 |
715900261 |
Oetiker Clamp, Small |
| 69 |
705401355 |
Boot Kit, Différential Side |
| 70 |
715900262 |
Oetiker Clamp, Large |
| 71 |
715900395 |
RH Plunging CV Joint This part replaces 705401357. |
| 71 |
715900396 |
LH Plunging CV Joint This part replaces 705401359. |
| 72 |
705401349 |
Circlip Joint |
| 74 |
705401380 |
RIM_14 INCH X 7 - Call your local BRP dealership |
| 75 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 76 |
705401604 |
Shim This part replaces 703500288. |
