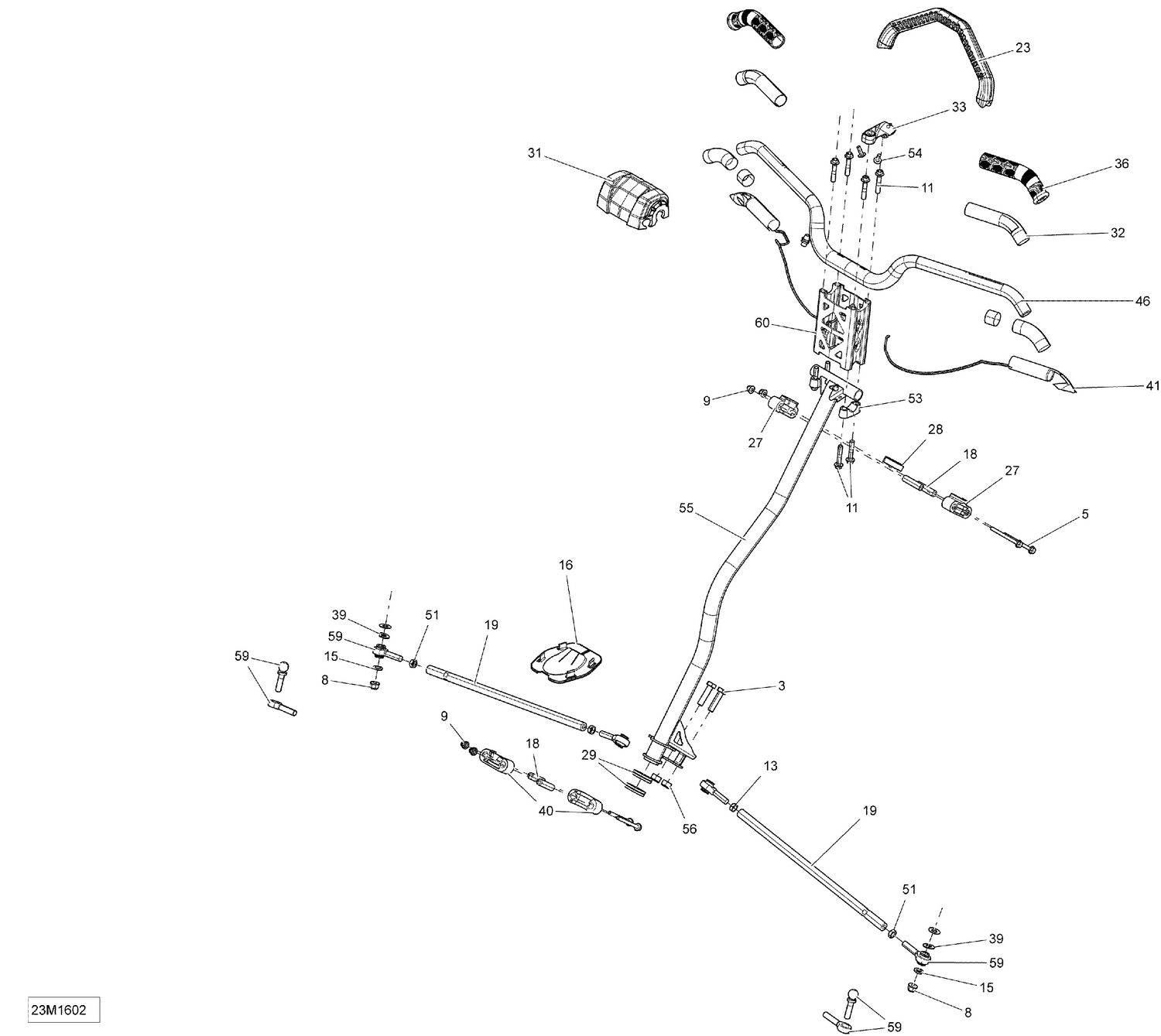

07- Steering — Parts Catalog

Ref	Part Number	Description
3	207004034	Hex. Screw M10 X 1.5 X 40
5	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
8	233201464	Hex. Flange Elastic M10 x 1.5
9	233261416	Elastic Flange Nut M6 X 1.0
11	250000352	Hex. Flange Screw M8 X 40
13	250100016	LH Threaded Hex. Jam Nut M10
15	503192496	Washer
16	506152163	Plate
18	506152297	Housing Bushing
19	506152498	Tie-Rod
23	506152460	Moulding Strap
27	506152508	Upper Half-Housing
28	506152509	Upper Anti-Vibration Gasket
29	506152518	Lower Vibration Ring
31	506152717	Steering Pad
32	506153176	Thermal Insulation This part replaces 506152548.
33	506152555	Steering Support
33	506152556	Steering Support
36	506152560	Grip 148mm
39	506152582	Washer
40	506152588	Lower Half-Housing
41	506152798	Heating Element 32 Watt 3 Wires This part replaces 506152665.
46	506152802	Manta Green Handle Bar
51	732610010	RH Threaded Hex. Jam Nut M10
53	506152751	Steering Support This part replaces 506152750.
53	548873704	Steering Support
54	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip
55	506152962	Steering Column This part replaces 506152839.
56	233601466	Elastic Locking Nut M10
59	506152081	LH Thread Ball Joint
59	506152684	RH Threaded Ball Joint
