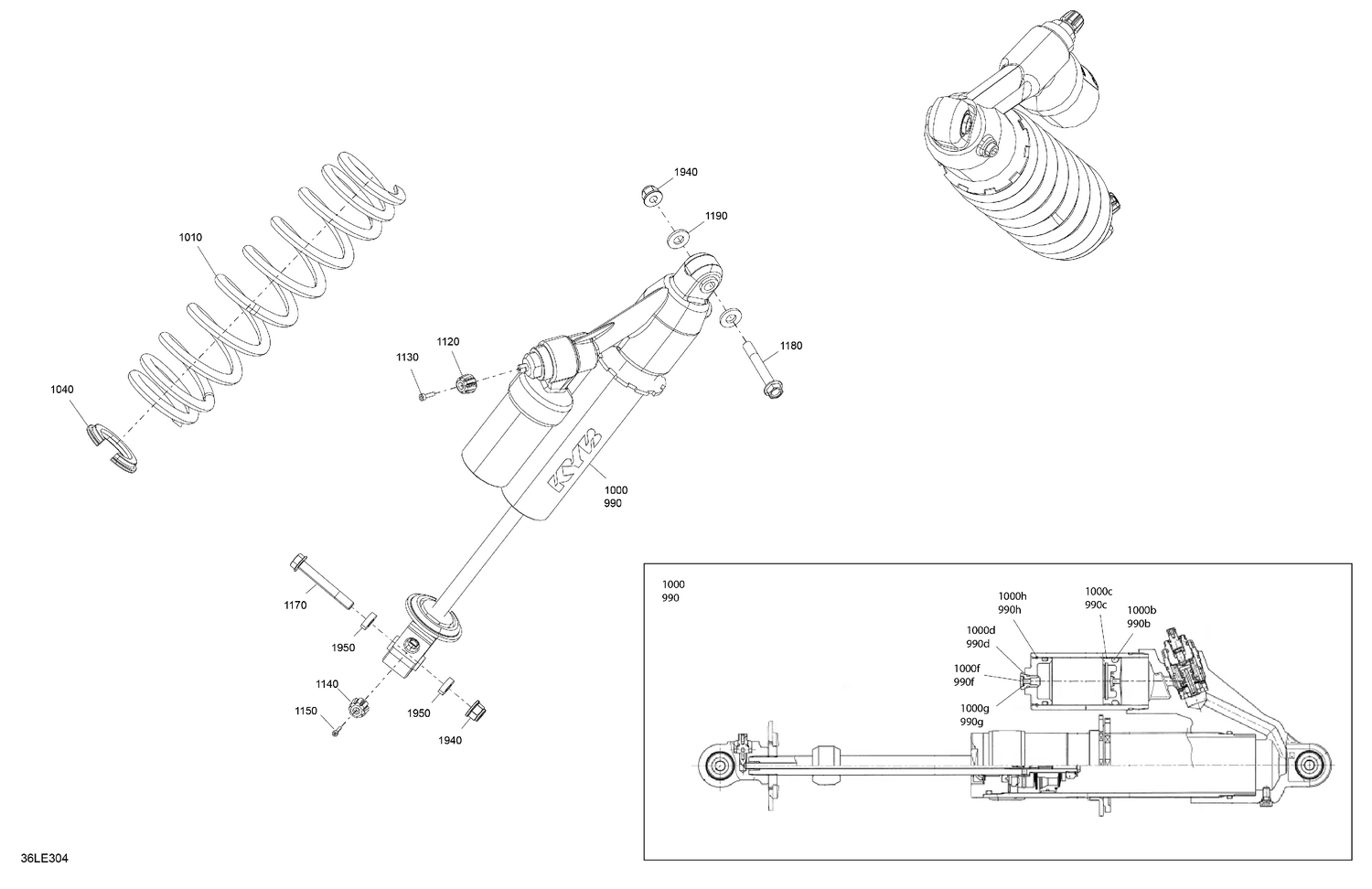

05- Suspension - Front Shocks
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 990b | 415093807 | O-Ring |
| 990c | 415093806 | Piston Ring |
| 990d | 505070400 | O-Ring |
| 990f | 505070399 | Screw |
| 990g | 415093804 | O-Ring |
| 990h | 503195958 | Valve |
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070400 | O-Ring |
| 1000f | 505070399 | Screw |
| 1000g | 415093804 | O-Ring |
| 1000h | 503195958 | Valve |
| 1010 | 505073311 | Spring (280mm - 18.4N/mm) |
| 1040 | 503194270 | Spring Stopper |
| 1120 | 505072753 | Adjustment Knob |
| 1130 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1140 | 503196209 | Adjustment Button |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1180 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1190 | 503192494 | Washer |
| 1940 | 233281466 | Elastic Flang Nut M8 |
