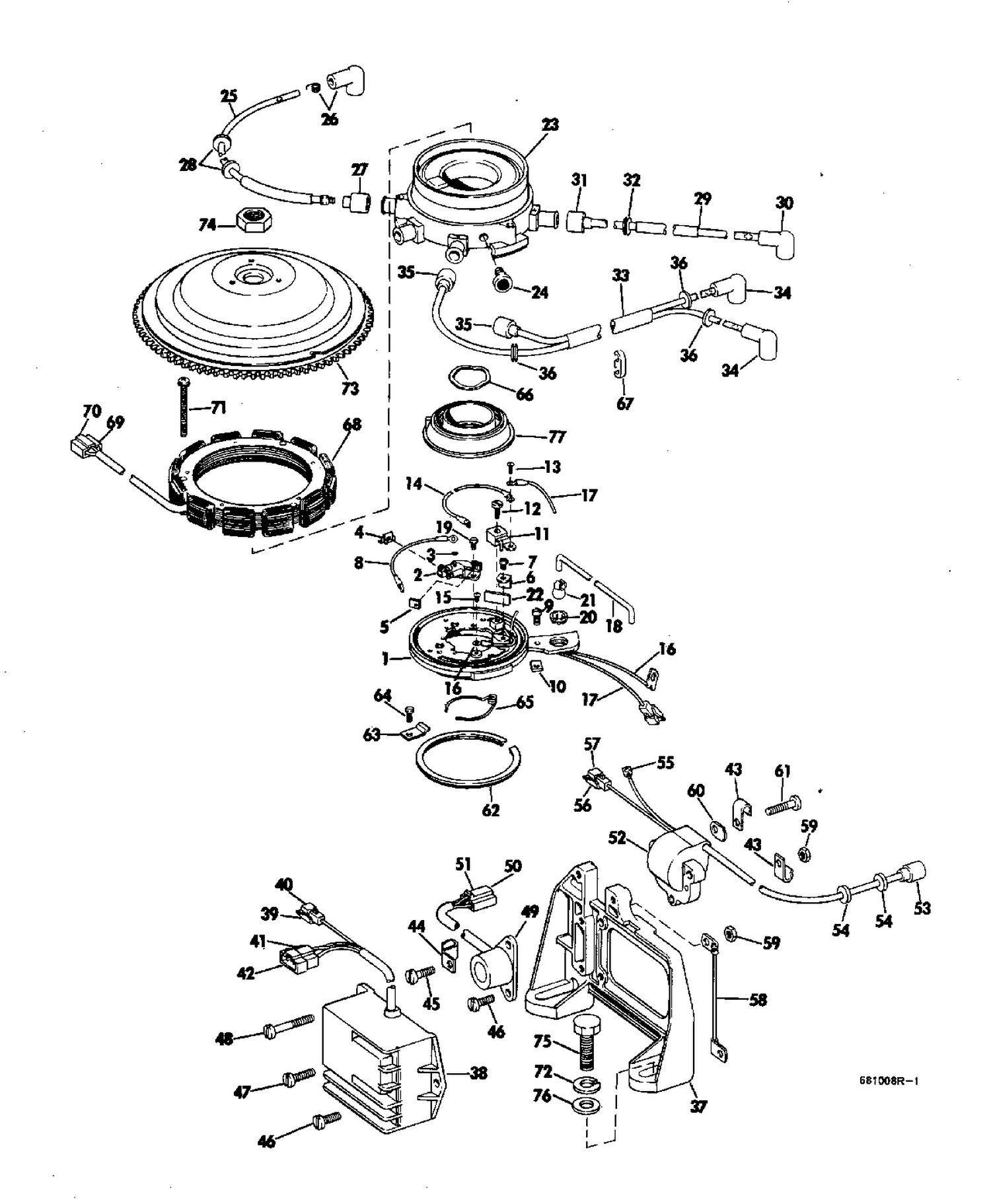

| Ref | Part Number | Description |
|---|
| 1 |
0382750 |
BASE PLATE ASSEMBLY |
| 2 |
0383655 |
BREAKER ASSEMBLY |
| 3 |
0203363 |
RETAINER |
| 4 |
0315062 |
CLIP, Contact retainer |
| 5 |
0315069 |
NUT, Breaker |
| 6 |
0313585 |
CLIP |
| 7 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 8 |
0580692 |
BREAKER LEAD ASSY |
| 9 |
0306158 |
SCREW, Clamp |
| 10 |
0313674 |
CLAMP LEADS |
| 11 |
0382495 |
CONTACT ASSEMBLY |
| 12 |
0307466 |
SCRES, Bowl to body |
| 13 |
0314471 |
SCREW |
| 14 |
0580691 |
LEAD ASSEMBLY |
| 15 |
0314474 |
SCREW |
| 16 |
0580694 |
LEAD ASSEMBLY, Ground |
| 17 |
0580693 |
LEAD ASSEMBLY, Primary |
| 18 |
0313738 |
ROD, Spark advance |
| 19 |
0312811 |
SCREW BREAKER TO BASE |
| 20 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 21 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 22 |
0510377 |
OILER WICK |
| 23 |
0382480 |
DIST. CAP AND SCREEN ASSY |
| 25 |
0382591 |
LEAD ASSEMBLY #1 |
| 27 |
0313586 |
CONVER, H. T. lead |
| 28 |
0551426 |
GORMMET |
| 29 |
0382592 |
LEAD ASSEMBLY #3 |
| 31 |
0313586 |
CONVER, H. T. lead |
| 32 |
0551426 |
GORMMET |
| 33 |
0382593 |
LEAD ASS.,#2,#4 |
| 35 |
0313586 |
CONVER, H. T. lead |
| 36 |
0551426 |
GORMMET |
| 37 |
0313836 |
BRACKET, Amplifier |
| 38 |
0389549 |
FUEL CONN., HOSE & PRIMER BULB AY. This part replaces 0382579. |
| 42 |
0825886 |
TERMINAL This part replaces 0510541. |
| 43 |
0310441 |
CLAMP, CPS lead |
| 44 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 45 |
0303699 |
SCREW |
| 46 |
0304607 |
PULSE PACK SCREW ASSY |
| 47 |
0304992 |
SCREW |
| 49 |
0580705 |
HOUSING RECTIFIER AND LEAD ASSY This part replaces 0580698. |
| 52 |
0580688 |
COIL & YOKE ASSEMBLY |
| 53 |
0313586 |
CONVER, H. T. lead |
| 54 |
0551426 |
GORMMET |
| 55 |
0510767 |
RING TERMINAL |
| 58 |
0580711 |
LEAD ASSEMBLY, Ground |
| 60 |
0313727 |
CLIP |
| 61 |
0309405 |
SCREW |
| 62 |
0313666 |
RET., Distributor base 1 |
| 63 |
0313668 |
CLAMP, Dist.base |
| 65 |
0313743 |
RING, Reverse cut off |
| 66 |
0313667 |
SPR, Washer, flywheel to rotor |
| 67 |
0310445 |
RETAINER |
| 68 |
0580726 |
STATOR ASSEMBLY, 9 amp |
| 70 |
0310771 |
TERMINAL |
| 71 |
0313740 |
SCREW, Starter and distributor |
| 72 |
0307708 |
RONDELLE GROWER |
| 73 |
0580685 |
FLYWHEEL & RING GEAR |
| 74 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 75 |
0310896 |
SCREW |
| 76 |
0121025 |
CLIP,Contact retainer |
| 0382476 |
0382476 |
DISTRIBUTOR BASE ASSY., Complete |
