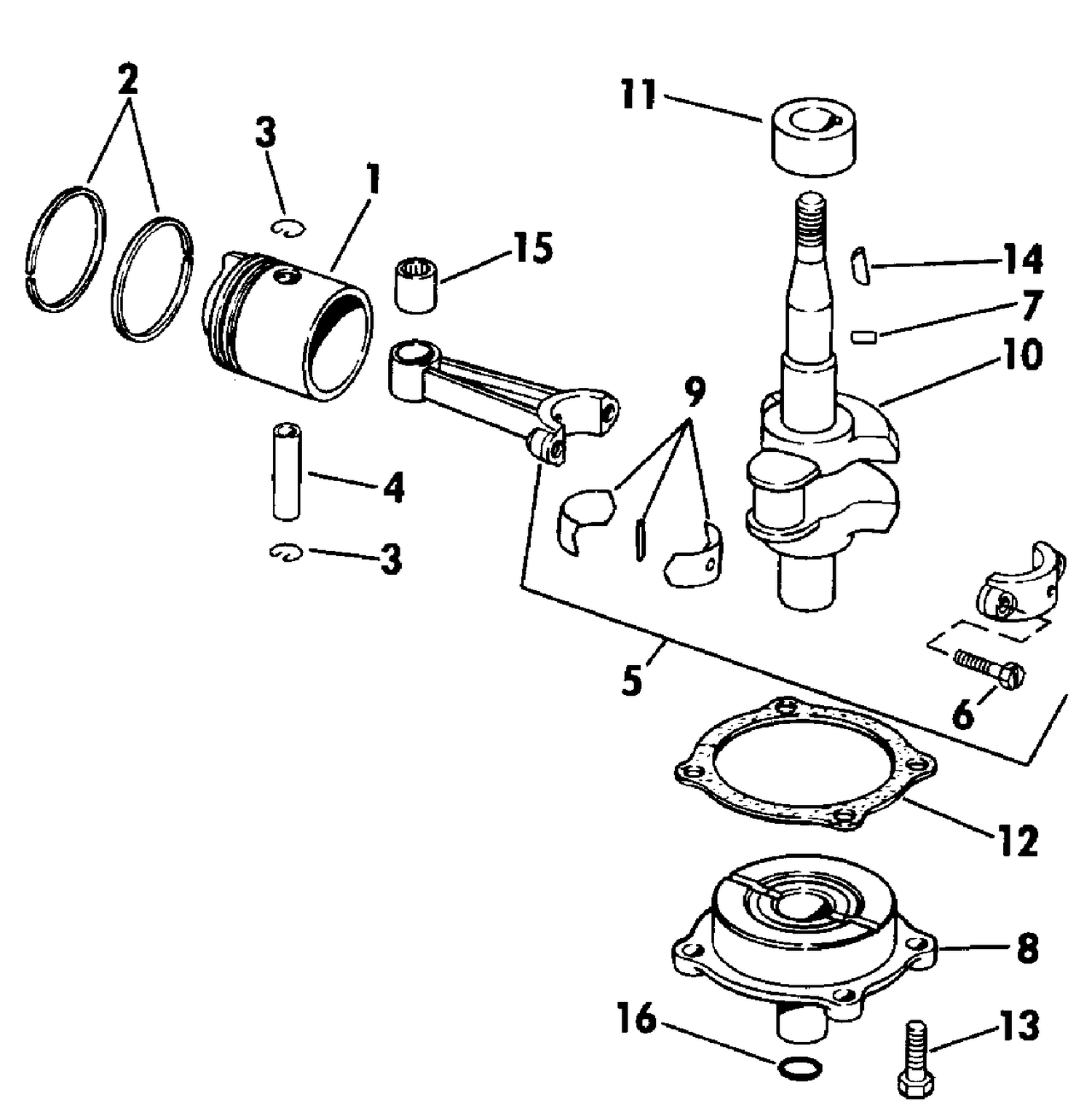

CRANKSHAFT & PISTON
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0396570 | PISTON ASSY., 0.030 o.s. |
| 1 | 0432741 | PISTON & RING AY., Std. This part replaces 0395597. |
| 2 | 0384312 | RING SET , .030 o. S |
| 2 | 0395596 | RING SET ,Std |
| 4 | 0323034 | RETAINING RING |
| 5 | 0394692 | CONNECTING ROAD ASSY. |
| 6 | 0324365 | SCREW, Rod cap |
| 7 | 0314213 | PIN, Cam to crankshaft |
| 8 | 0432448 | BEARING HOUSING ASSY. |
| 9 | 0396068 | LINERS & NEEDLES, Rod |
| 10 | 0334546 | CRANKSHAFT |
| 11 | 0510167 | CAM, Magneto |
| 12 | 0330550 | GASKET, Housing |
| 13 | 0300646 | VIS, ancrage |
| 14 | 0120395 | KEY |
| 15 | 0389369 | BEARING ASSY., Needle, wrist pin |
| 16 | 0332461 | O-RING |
| 17 | 0391849 | ROULEMENT À BILLES |
