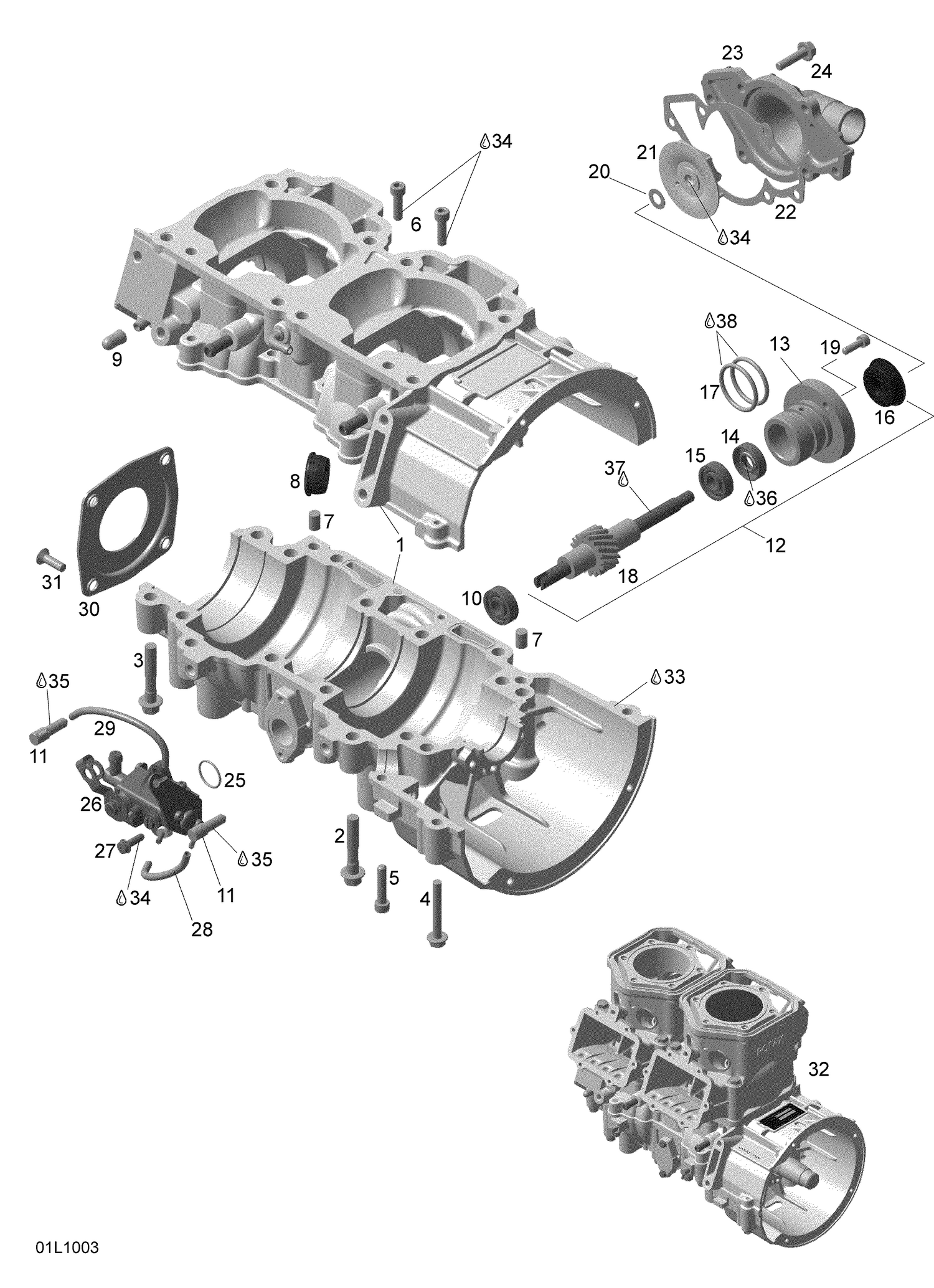

01- Crankcase
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420640836 | Hex. Collar Screw M8 X 75 |
| 3 | 420640433 | Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 4 | 420640312 | Hex. Collar Screw M6 X 45 This part replaces 420640311. |
| 5 | 205063044 | Socket Head Screw M6 X 30 |
| 6 | 420840403 | Socket Head Screw M6 X 22 This part replaces 420840401. |
| 7 | 420632010 | Center Pin 8 X 12 |
| 8 | 420860965 | Cable Grommet |
| 9 | 420960770 | Cap |
| 10 | 420232100 | Ball Bearing |
| 11 | 420956511 | Check Valve This part replaces 420956510. |
| 13 | Not | Available As Spare Part - Step collar |
| 14 | 420230195 | Oil seal This part replaces 420230196. |
| 15 | 420232100 | Ball Bearing |
| 16 | 420650371 | Rotary Seal This part replaces 420650370. |
| 17 | 420950890 | O-Ring |
| 18 | Not | Available As Spare Part - Waterpump/oilpump shaft |
| 19 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 20 | 420227945 | Washer |
| 21 | 420222505 | Water Impeller |
| 22 | 420931811 | Gasket This part replaces 420931810. |
| 23 | 420922630 | Water Pump Housing |
| 24 | 420240034 | Hex. Screw M6 x 25 This part replaces 420240031. |
| 25 | 293300041 | O-Ring |
| 26 | 420888780 | Oil Pump Ass'y |
| 27 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 28 | 414413800 | Oil Hose |
| 29 | 414413800 | Oil Hose |
| 30 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 31 | 420941436 | Screw M6 X 20 |
| 32 | 300059373 | Short block engine |
| 33 | 293800081 | Loctite 5910, 300 ml |
| 34 | 293800060 | Loctite 243, 10 ml |
| 35 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 36 | 420899271 | Petamo Grease, GHY133N, 400 g |
