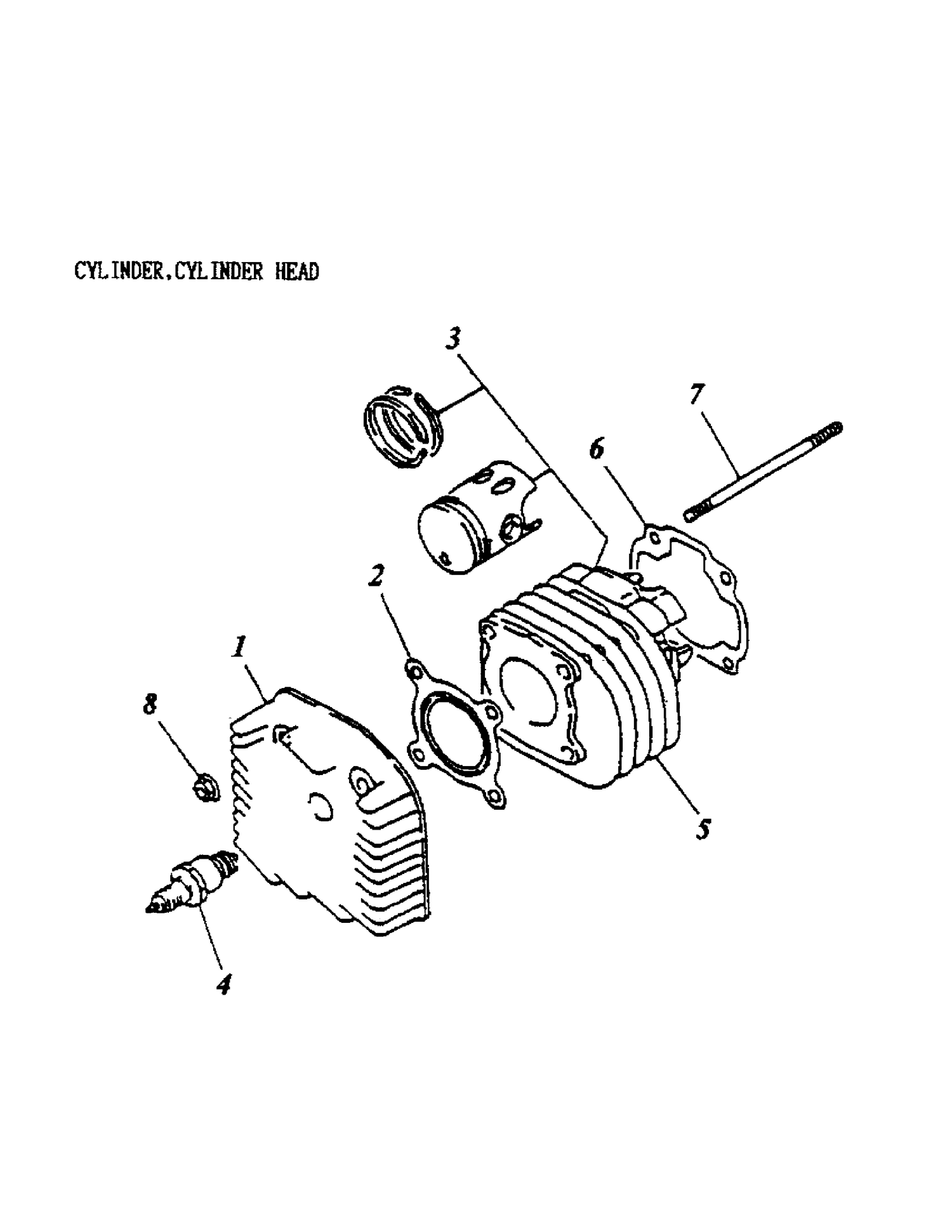

01- Cylinder, Cylinder Head
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A12201117000 | CYLINDER HEAD - Call your local BRP dealership |
| 2 | A12251117000 | CYLINDER HEAD GASKET - Call your local BRP dealership |
| 3 | A12301146000 | CYLINDER COMP. - Call your local BRP dealership |
| 4 | 219700194 | Spark Plug, NGK BPR7HS |
| 5 | A12101146000 | CYLINDER - Call your local BRP dealership |
| 6 | A12191117000 | Cylinder Gasket |
| 7 | A9100107128 | STUD BOLT M7 X 128 - Call your local BRP dealership |
