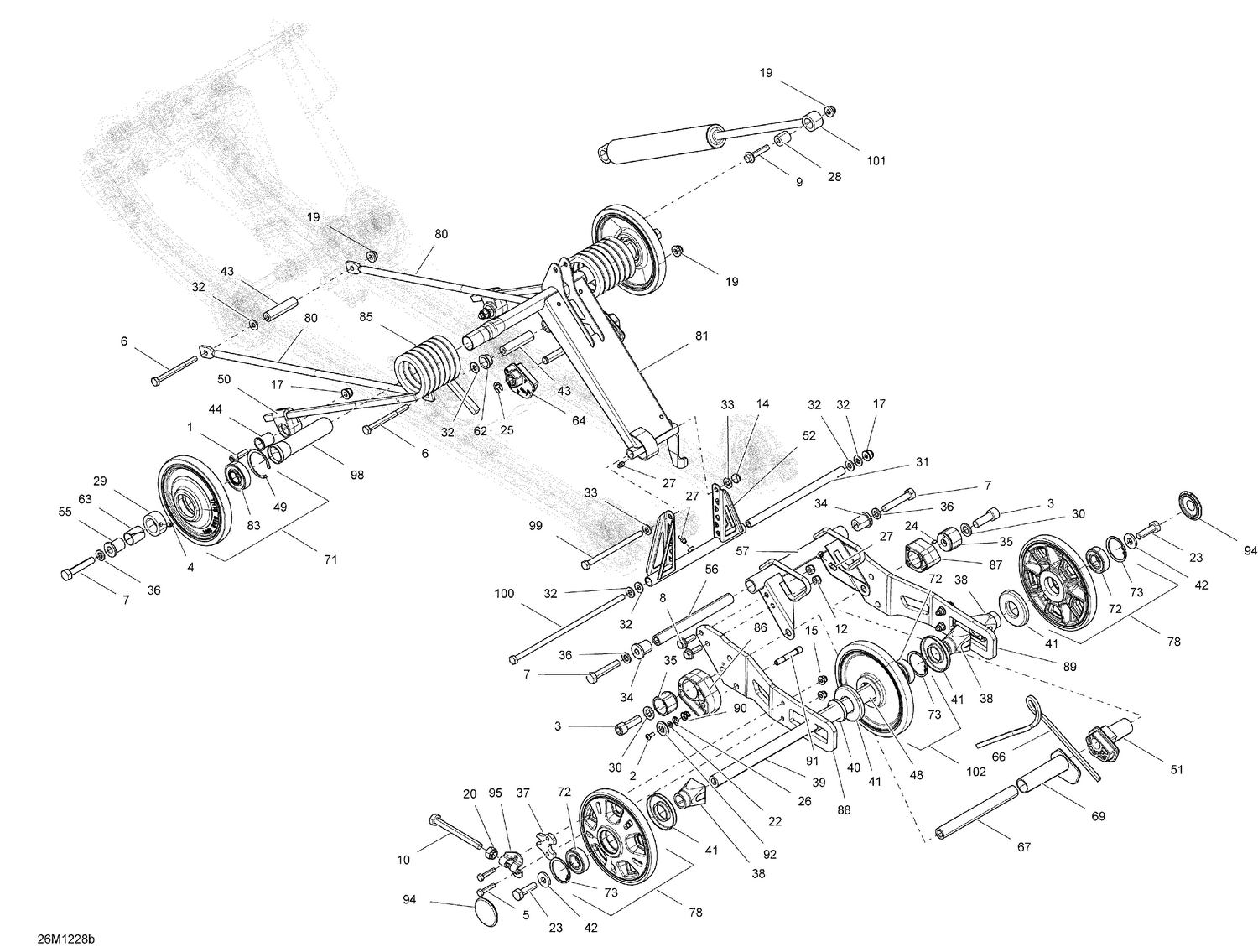

08- Rear Suspension Rear Arm And Shock
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082544 | Socket Head Screw M8 X 25 |
| 2 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 3 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 4 | 206260844 | Socket Set Screw M6 X 8 |
| 5 | 250000480 | Hex Cap Screw DIN.931 |
| 6 | 207089044 | Hex. Screw M8 X 90 |
| 7 | 207205586 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 8 | 207682544 | Hex. Flange Screw M8 X 25 |
| 9 | 207684044 | Hex. Flange Screw M8 X 40 |
| 10 | 230100054 | Hex Screw M10 x 100 |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 |
| 15 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 17 | 250100131 | Elastic Flange Nut M8 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 22 | 234051410 | Flat Washer M5 |
| 23 | 250000019 | Hex. Screw With Nylon |
| 24 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 25 | 293370013 | E-Circlip |
| 26 | 293370068 | Circlip |
| 27 | 408200700 | Grease Fitting |
| 28 | 414936000 | Bushing |
| 29 | 503168800 | Retaining Ring |
| 30 | 503189148 | Washer |
| 31 | 503189156 | Pivot Arm Axle |
| 32 | 503189157 | Washer |
| 32 | 503192494 | Washer |
| 33 | 503189157 | Washer |
| 34 | 503189324 | Bushing |
| 35 | 503189488 | Block Guide |
| 36 | 503189564 | Washer |
| 37 | 503193250 | Spacer This part replaces 503190379. |
| 38 | 503190428 | Rear Wheel Spacer |
| 39 | 503190429 | Rear Axle |
| 40 | 503190432 | Washer |
| 41 | 503190434 | Labyrinth Seal |
| 42 | 503190439 | Washer |
| 43 | 503190643 | Axle Bar (Long) |
| 44 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 48 | 503193052 | Spacer |
| 49 | 415129371 | Retaining Ring |
| 50 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 51 | 503191190 | RH Spring Cam |
| 52 | 503191209 | Pivot Arm |
| 55 | 503191262 | Bushing |
| 56 | 503191279 | Lower Shaft |
| 57 | 503192647 | Runner Pivot |
| 62 | 503191555 | Swivel Bushing |
| 63 | 503191556 | Extended Bushing |
| 64 | 503191565 | LH Cam Adjuster |
| 64 | 503191566 | RH Cam Adjuster |
| 66 | 503194624 | Spring This part replaces 503192282. |
| 67 | 503191608 | Cam Axle |
| 69 | 503191668 | LH Spring Cam |
| 71 | 503191738 | Black, Wheel Ass'y 155 mm |
| 72 | 503190396 | Ball Bearing |
| 73 | 415129371 | Retaining Ring |
| 78 | 503192128 | Deep Black, Wheel Ass'y, 165 mm |
| 80 | 503191765 | Link Rod |
| 81 | 503191762 | Rear Arm |
| 83 | 503193548 | Ball Bearing This part replaces 503191982. |
| 85 | 503193158 | Black, LH Spring Square This part replaces 503192136. |
| 85 | 503193159 | Black, RH Spring Square This part replaces 503192137. |
| 86 | 503192426 | LH Block |
| 87 | 503192427 | RH Block |
| 88 | 503192434 | Rail Pivot LH |
| 89 | 503192435 | Rail Pivot RH |
| 90 | 503192436 | Compression Spring |
| 91 | 503192437 | Rode |
| 92 | 503192438 | Handle |
| 94 | 503192771 | Black, Wheel Cap |
| 95 | 503192583 | Tensioner This part replaces 503192814. |
| 98 | 572080700 | Bushing |
| 99 | 732601197 | Bolt M8, Short |
| 100 | 503192440 | Bolt M8 X 248mm |
| 101 | 503193192 | Rear Shock HPG SEAL This part replaces 503192639. |
