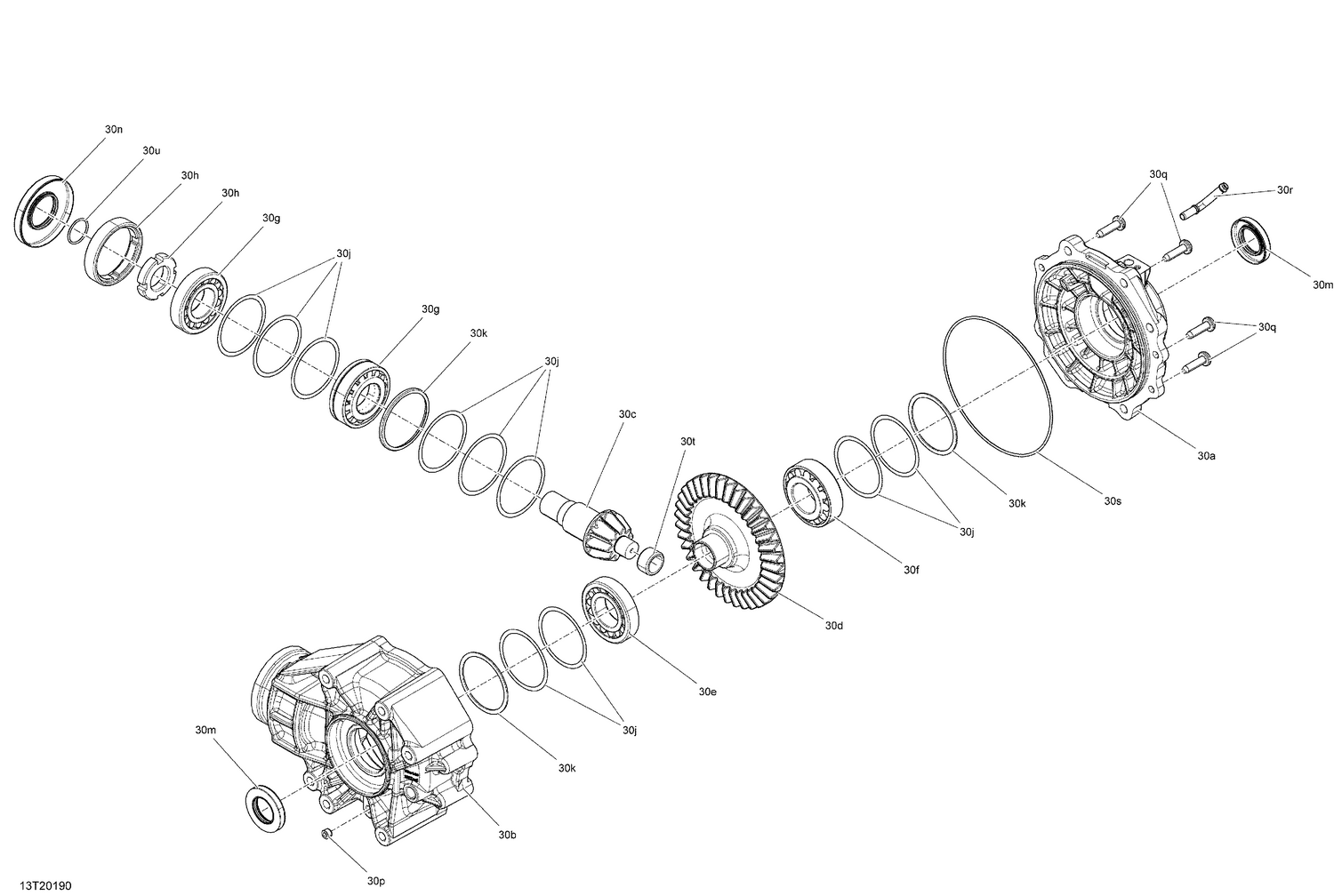

08- Rear Drive - Differential Parts
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502887 | Rear Cover |
| 30b | 705502180 | Rear Pinion Cover |
| 30c | 705502889 | Gear 10 Teeth |
| 30d | 705502890 | Gear 36 Teeth |
| 30e | 705502738 | Ball Bearing This part replaces 705502057. |
| 30f | 705502891 | Ball Bearing |
| 30g | 705502892 | Ball Bearing |
| 30h | 705501549 | Nut |
| 30j | 705502060 | Differential Shim 0.02 mm |
| 30k | 703500835 | Differential Shim Kit |
| 30m | 705501556 | Oil Seal |
| 30n | 705501557 | Oil Seal |
| 30p | 705501724 | Plug Drain |
| 30q | 705502063 | Screw |
| 30r | 705501584 | Breather Tube |
| 30s | 705501711 | O-Ring |
| 30t | 703500836 | Needle Bearing Ass'y |
