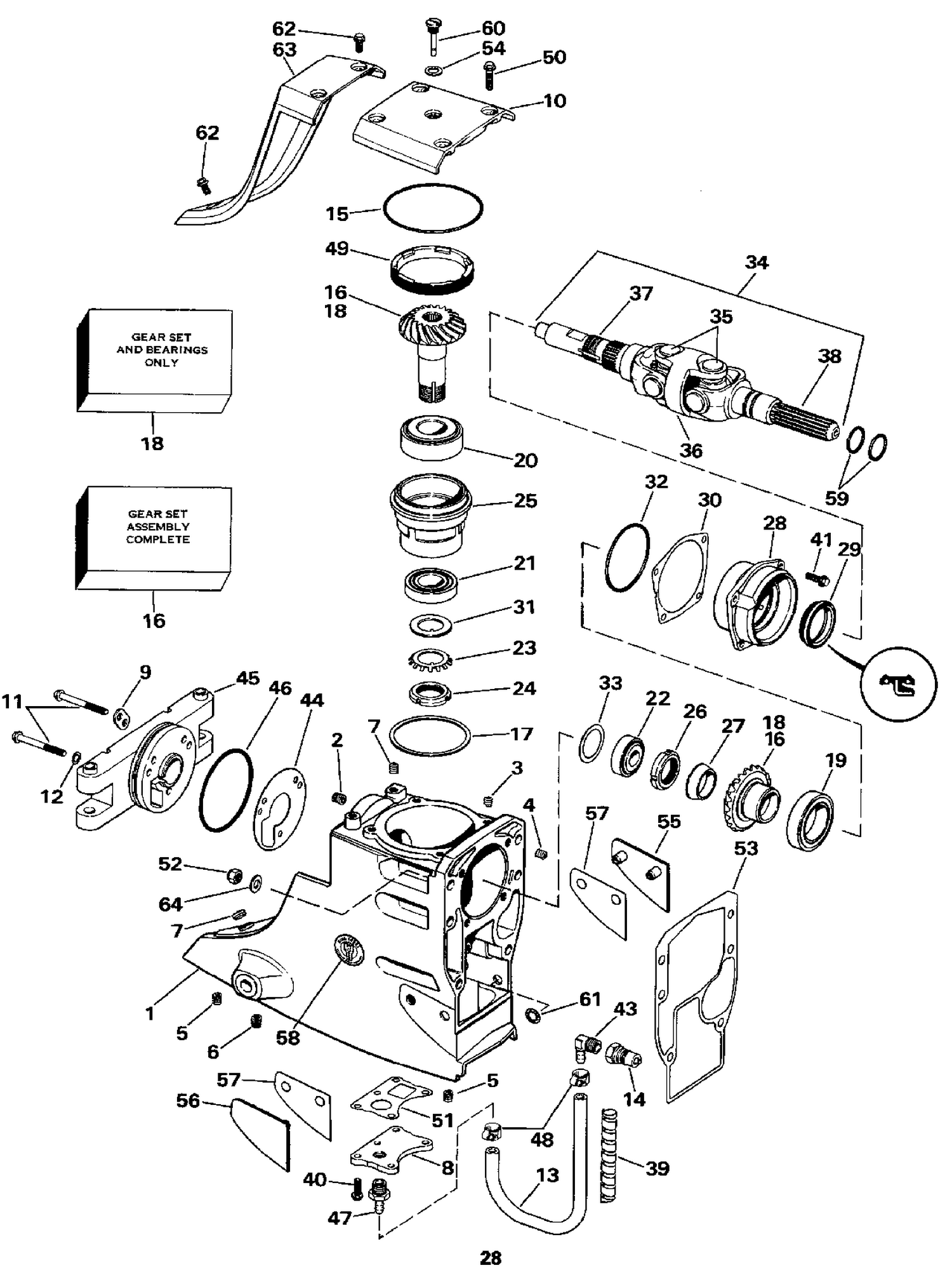

| Ref | Part Number | Description |
|---|
| 1 |
0984814 |
GEAR HOUSING & INSERTS |
| 2 |
0910901 |
INSERT |
| 3 |
0910901 |
INSERT |
| 4 |
0910901 |
INSERT |
| 5 |
0910935 |
INSERT, 3/8-16 |
| 6 |
3852541 |
INSERT, 7/16 -14 This part replaces 0911779. |
| 7 |
3852567 |
INSERT This part replaces 0911858. |
| 8 |
0912689 |
PLATE, Oil sump |
| 9 |
0912694 |
WASHER, Anchor block |
| 10 |
0911845 |
COVER, Gear housing |
| 11 |
0912238 |
SCREW, Anchor block |
| 12 |
0309543 |
RONDELLE |
| 13 |
0912664 |
HOSE, Check valve |
| 14 |
0912742 |
NIPPLE, Quick disconnect |
| 15 |
0313175 |
O RING, Cover |
| 16 |
0984013 |
GEAR SET ASSY, 21:19, 4.3 L |
| 17 |
0911668 |
SHIM, Bearing carrier .010" |
| 17 |
0911669 |
SHIM, Bearing carrier .011" |
| 17 |
0911670 |
SHIM, Bearing carrier .012" |
| 17 |
0911671 |
SHIM, Bearing carrier .013" |
| 17 |
0911672 |
SHIM, Bearing carrier .014" |
| 17 |
0911673 |
SHIM, Bearing carrier .015" |
| 17 |
0911674 |
SHIM, Bearing carrier .016" |
| 17 |
0911675 |
SHIM, Bearing carrier .017" |
| 17 |
0911676 |
SHIM, Bearing carrier .018" |
| 17 |
0911677 |
SHIM, Bearing carrier .019" |
| 18 |
0984012 |
GEAR SET, 21:19 |
| 19 |
0983877 |
BEARING, Bearing carrier |
| 20 |
0983891 |
BEARING, Pinion, upper |
| 21 |
0983892 |
BEARING, Pinion lower |
| 22 |
0983878 |
BEARING, U-joint shaft |
| 23 |
0911752 |
RETAINER, Nut |
| 24 |
0911753 |
NUT, Pinion |
| 25 |
0911750 |
BEARING CARRIER, Pinion |
| 26 |
0911937 |
NUT, Gear to U-joint |
| 27 |
0912029 |
CENTERING CONE |
| 28 |
0911683 |
BEARING CARRIER, Gear |
| 29 |
0911685 |
SEAL, Bearing carrier |
| 30 |
0911678 |
SHIM, Bearing carrier .003" |
| 30 |
0911679 |
SHIM, Bearing carrier .004" |
| 30 |
0911680 |
SHIM, Bearing carrier .005" |
| 30 |
0911681 |
SHIM, Bearing carrier .010" |
| 31 |
0911697 |
WASHER, Pinion |
| 32 |
0911686 |
O-RING, Adaptor to gear housing |
| 33 |
0911662 |
SHIM Gear position, 0.003" |
| 33 |
0911663 |
SHIM, Gear position .005" |
| 33 |
0911664 |
SHIM, Gear position .007" |
| 33 |
0911665 |
SHIM, Gear position .010" |
| 33 |
0911666 |
SHIM, Gear position .012" |
| 33 |
0911667 |
SHIM, Gear position .015" |
| 34 |
0984812 |
U-JOINT ASSY. |
| 36 |
0912213 |
DOUBLE CENTER |
| 37 |
0912211 |
STUB |
| 38 |
0912700 |
YOKE SHAFT |
| 39 |
0912696 |
SLEEVE, Oil hose |
| 40 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 41 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 43 |
0174177 |
ELBOW KIT This part replaces 0909985. |
| 44 |
0912693 |
GASKET, Anchor block to gear housing |
| 45 |
0984825 |
ANCHOR BLOCK |
| 47 |
0911916 |
FITTING, Hose |
| 49 |
0911751 |
RETAINER RING, Pinion hsg |
| 50 |
0123108 |
SCREW, Gear housing cover |
| 51 |
0911733 |
GASKET, Plate |
| 52 |
3853329 |
LOCKNUT, Transom plate This part replaces 0912920. |
| 53 |
0915840 |
GASKET, Gear housing to pivot This part replaces 0911836. |
| 55 |
3852561 |
PLATE, Thrust, port This part replaces 0911837. |
| 56 |
3852562 |
PLATE, Thrust, starboard This part replaces 0911838. |
| 57 |
3852563 |
SHIM, Thrust plate, 0.015 in. This part replaces 0911839. |
| 58 |
0912608 |
MEDALLION, OMC King Cobra |
| 59 |
3852565 |
O-RING, U-joint This part replaces 0911851. |
| 60 |
0913343 |
INDICATOR PLUG, Oil level |
| 61 |
0910953 |
RETAINER RING, Thrust plate |
| 62 |
3852568 |
SCREW, Cover This part replaces 0911859. |
| 63 |
0983967 |
COVER, Anchor block |
| 0984824 |
0984824 |
GEAR HSG. ASSY., 21:19, 7.4 L |
