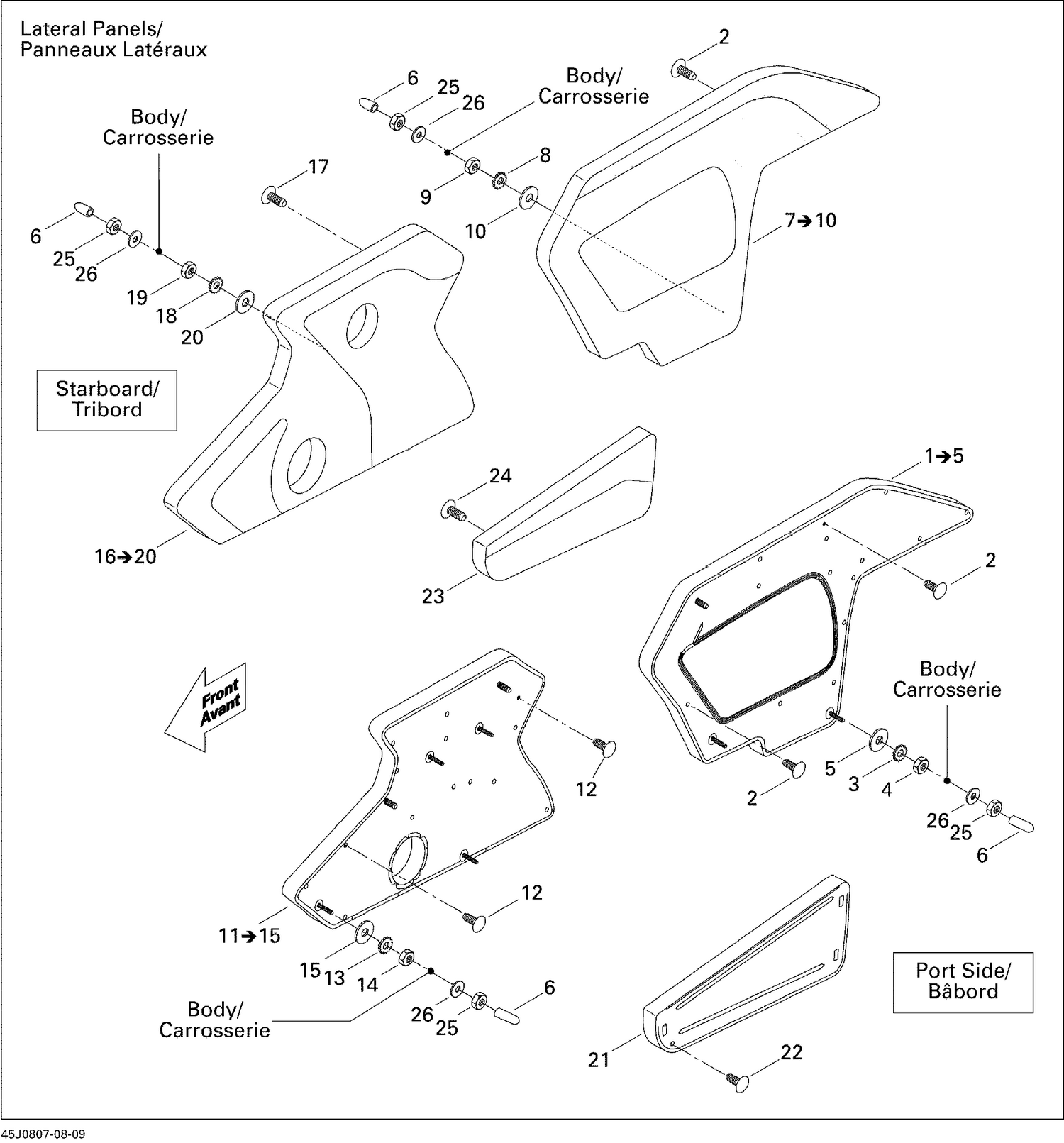

09- Lateral Panel
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293730014 | Black Dart |
| 3 | 234461608 | External Serrated Lock Washer 6 mm |
| 4 | 204100060 | Hex. Jam Nut |
| 5 | 234062600 | Flat Washer M6, Stainless |
| 6 | 204070947 | Cap |
| 8 | 234461608 | External Serrated Lock Washer 6 mm |
| 9 | 204100060 | Hex. Jam Nut |
| 10 | 234062600 | Flat Washer M6, Stainless |
| 12 | 293730014 | Black Dart |
| 13 | 234461608 | External Serrated Lock Washer 6 mm |
| 14 | 204100060 | Hex. Jam Nut |
| 15 | 234062600 | Flat Washer M6, Stainless |
| 17 | 293730014 | Black Dart |
| 18 | 234461608 | External Serrated Lock Washer 6 mm |
| 19 | 204100060 | Hex. Jam Nut |
| 20 | 234062600 | Flat Washer M6, Stainless |
| 22 | 293730014 | Black Dart |
| 24 | 293730014 | Black Dart |
| 25 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
