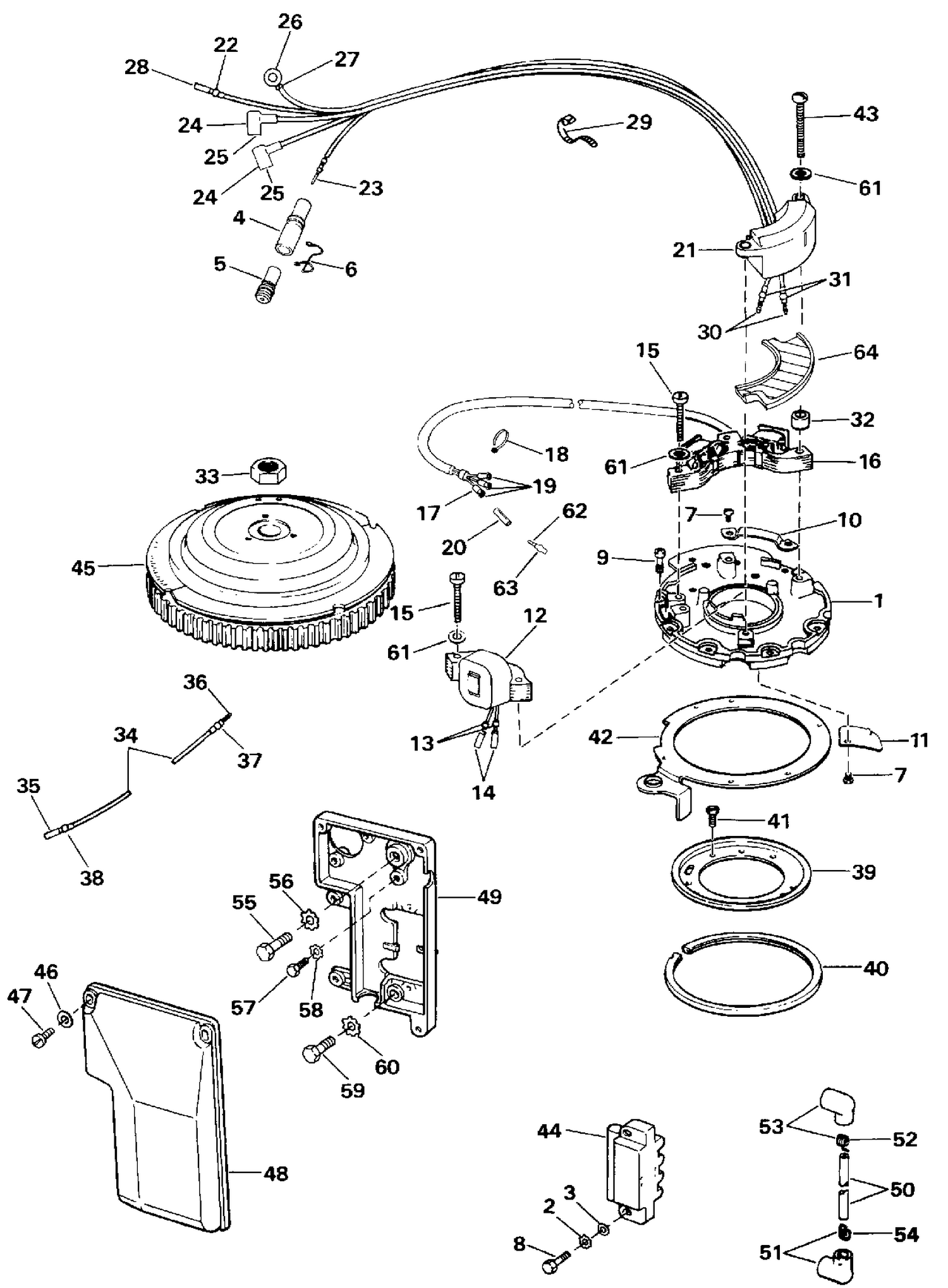

| Ref | Part Number | Description |
|---|
| 1 |
0583285 |
PLAT & SLEEVE ASSY. |
| 6 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 7 |
0303212 |
VIS, collier & capot |
| 9 |
0511460 |
VIS, dispositif de retenue |
| 10 |
0511458 |
COLLIER, fils |
| 11 |
0511459 |
CACHE, fils |
| 12 |
0584333 |
CHARGE COIL & LAM. ASSY. |
| 21 |
0584489 |
IGNITION MODULE This part replaces 0584329. |
| 32 |
0513029 |
SPACER |
| 33 |
0326111 |
NUT |
| 34 |
0583675 |
LEAD ASSY., Module to temp. switch |
| 39 |
0332063 |
PLATE, Support |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 42 |
0332790 |
RETAINER |
| 43 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 44 |
0583740 |
COIL Assy |
| 45 |
0583696 |
FLYWHEEL ASSEMBLY |
| 48 |
0333757 |
COVER |
| 49 |
0334189 |
BRACKET |
| 50 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 59 |
0335020 |
SCREW, Bracket to block |
