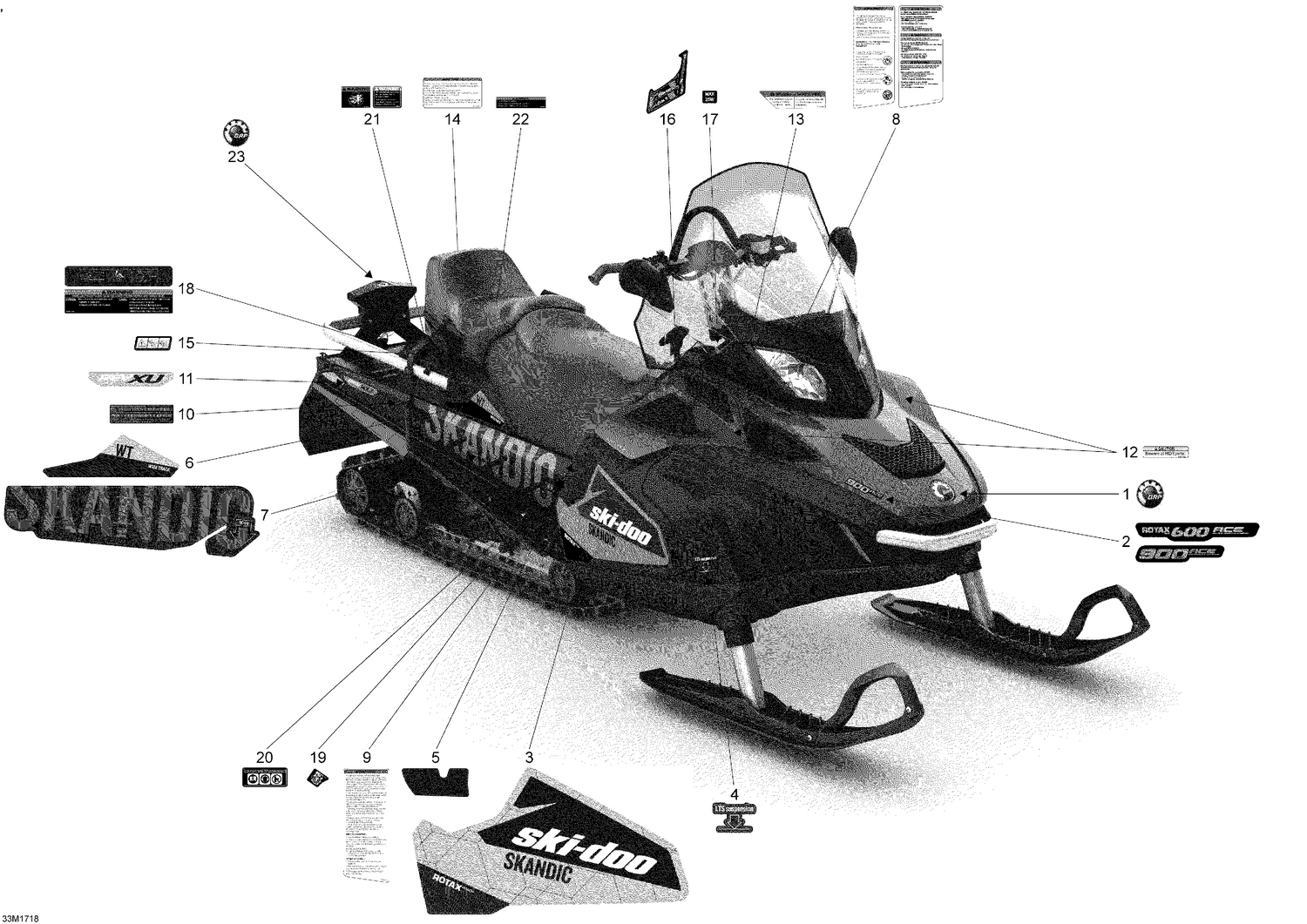

09- Decals
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | BRP Logo 68mm This part replaces 516006888. |
| 2 | 516004360 | Hood Decal "Rotax 600 Ace" |
| 2 | 516006454 | Hood Decal "900 Ace" |
| 3 | 516007158 | LH Side Panel Decal |
| 3 | 516007159 | RH Side Panel Decal |
| 4 | 516007160 | Decal " LTS Suspension " |
| 7 | 516007165 | DECAL, FRAME LH - Call your local BRP dealership |
| 7 | 516007166 | RH Frame Decal |
| 11 | 516007167 | REV XU Decal |
| 12 | 516006903 | Hot Parts Decal |
| 15 | 516005111 | Instruction Decal, Back Seat Locking |
| 16 | 516004305 | Instruction Label, Transmission |
| 23 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
