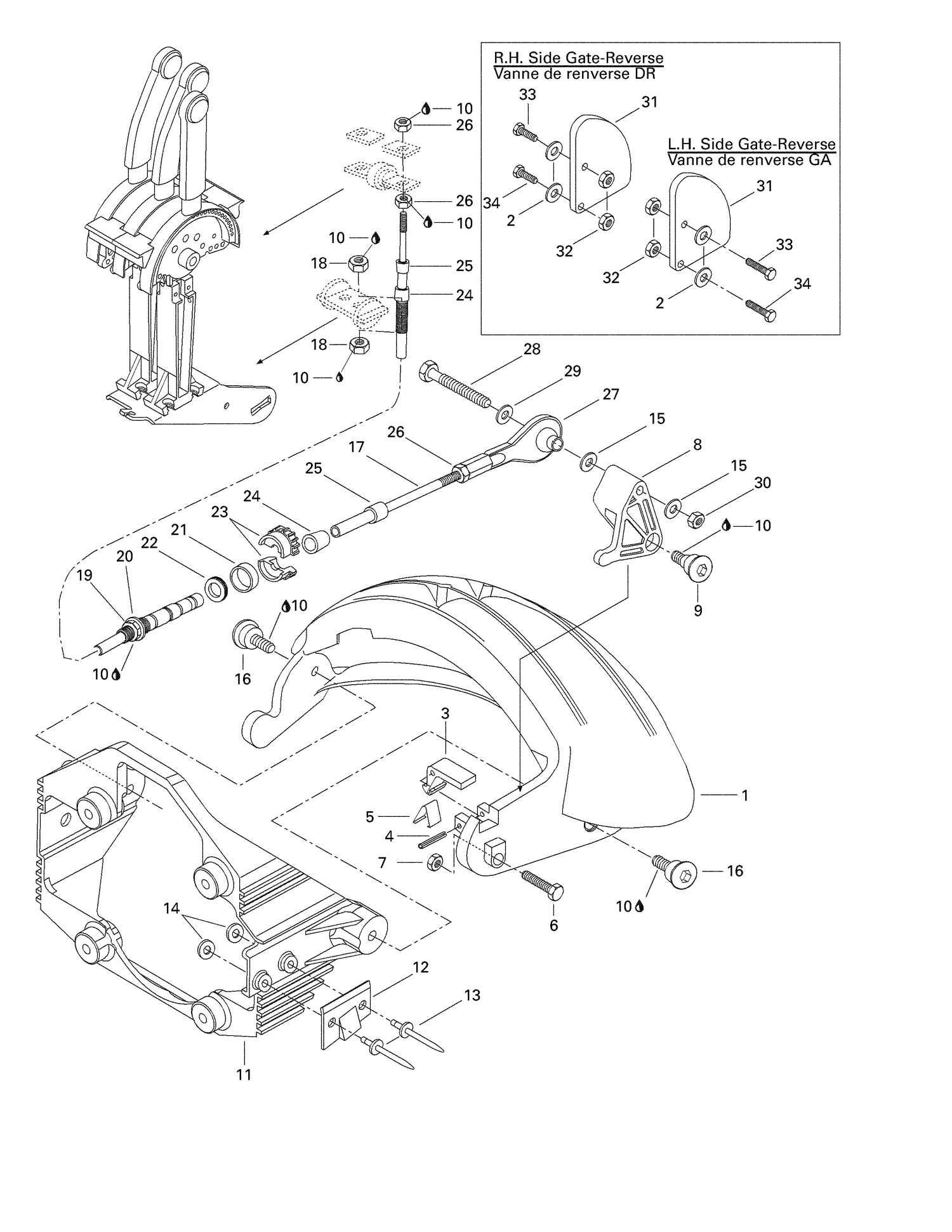

| Ref | Part Number | Description |
|---|
| 1 |
204170028 |
LH Reverse Gate |
| 2 |
234040600 |
Flat Washer 4 mm This part replaces 213200010. |
| 3 |
271000430 |
HOOK LEVER - Call your local BRP dealership |
| 4 |
211400009 |
Pin |
| 5 |
271000431 |
Spring |
| 6 |
207162060 |
Hex. Forming Screw M6 X 20 This part replaces 210000004. |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 8 |
271000583 |
CABLE LEVER - Call your local BRP dealership |
| 9 |
211000077 |
SCREW-SHOULDER M8 - Call your local BRP dealership |
| 10 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 11 |
204170021 |
Gate Support |
| 12 |
204170030 |
Pawl-stop |
| 13 |
293150043 |
Pop Rivet 3/16" |
| 14 |
211200035 |
Flat Washer |
| 15 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 16 |
211000007 |
Screw |
| 17 |
271000627 |
LH Reverse Cable |
| 18 |
212100006 |
Hex. Jam Nut |
| 19 |
211100011 |
Hex. Jam Nut 1/2-20 |
| 20 |
211200006 |
FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 21 |
211100010 |
Retaining Ring |
| 22 |
211100009 |
RUBBER WASHER - Call your local BRP dealership |
| 23 |
277000168 |
Half-Ring |
| 24 |
277000473 |
Boot, Large |
| 25 |
277000466 |
Boot, Small |
| 26 |
212100005 |
Hex. Nut |
| 27 |
277000153 |
BALL JOINT - Call your local BRP dealership |
| 28 |
207066060 |
HEX. SCREW M6 X 60 - Call your local BRP dealership This part replaces 215666060. |
| 29 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 30 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 31 |
204170010 |
Reverse Gate Shutter (Starboard) |
| 32 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 33 |
207142060 |
SCREW HEX. M4 X 20 - Call your local BRP dealership This part replaces 215042060. |
| 204170029 |
RH |
Reverse Gate 204170029 |
| 271000628 |
REVERSE |
CABLE - Call your local BRP dealership 271000628 |
